IP Addressable Power Distribution Unit SIP-V5 (NEMA)

IP addressable Power Distribution Unit
  • 8 Controllable Receptacles with LED indicator
  • Direct Plug-in for easy using with 125V working voltage
  • 0U Vertical Controllable Power
  • Temperature/Humidity Sensor and Network Interface, 1 x RJ45, 1 x RJ11(6P4C), 1 x RJ11(6P2C)
  • 1 master On/off switch with built-in circuit breaker



Unit dimension: 40.5" (L) x 2.24" (W) x 1.71" (H)



Features:

  • Simple and intuitive user interface
  • Power on/off a device from anywhere by web based user interface (UI)
  • Manage individual power outlet remotely
  • Simple security control
  • Give each power strip a nickname
  • User definable names for each controllable output
  • Set up specified time intervals of each outlet on or off
  • Set up the sequence of the group outlets on or off (forward:1-8 or backward: 8-1)
  • Temperature setting for auto AC fan control
  • Power, current, temperature and humidity monitoring
  • Over current, over voltage, temperature and humidity alarm setting
  • Ensure the privacy and safety with password
  • Auto PIN rest
  • Time scheduling on individual outlet or group outlet to switch on or off

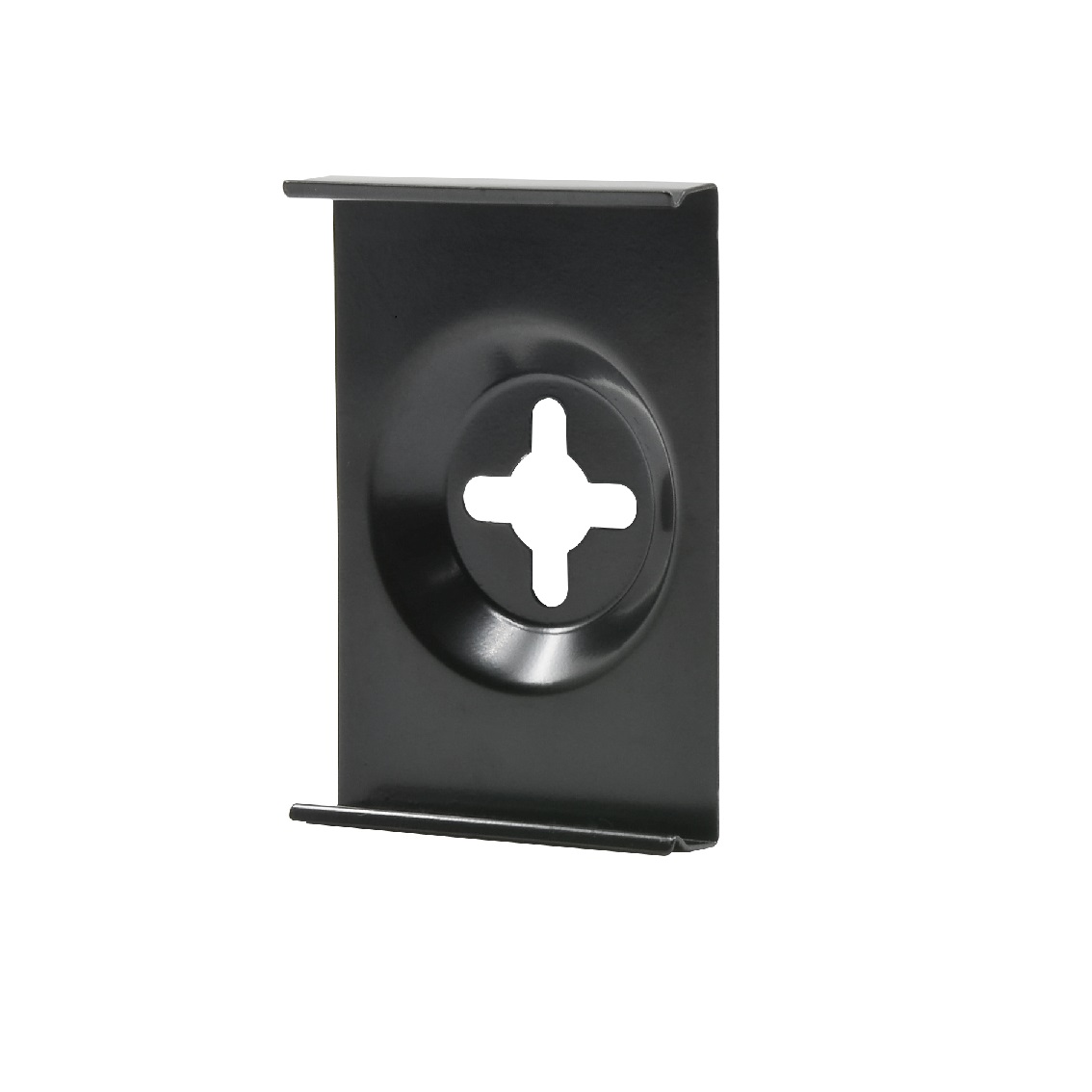

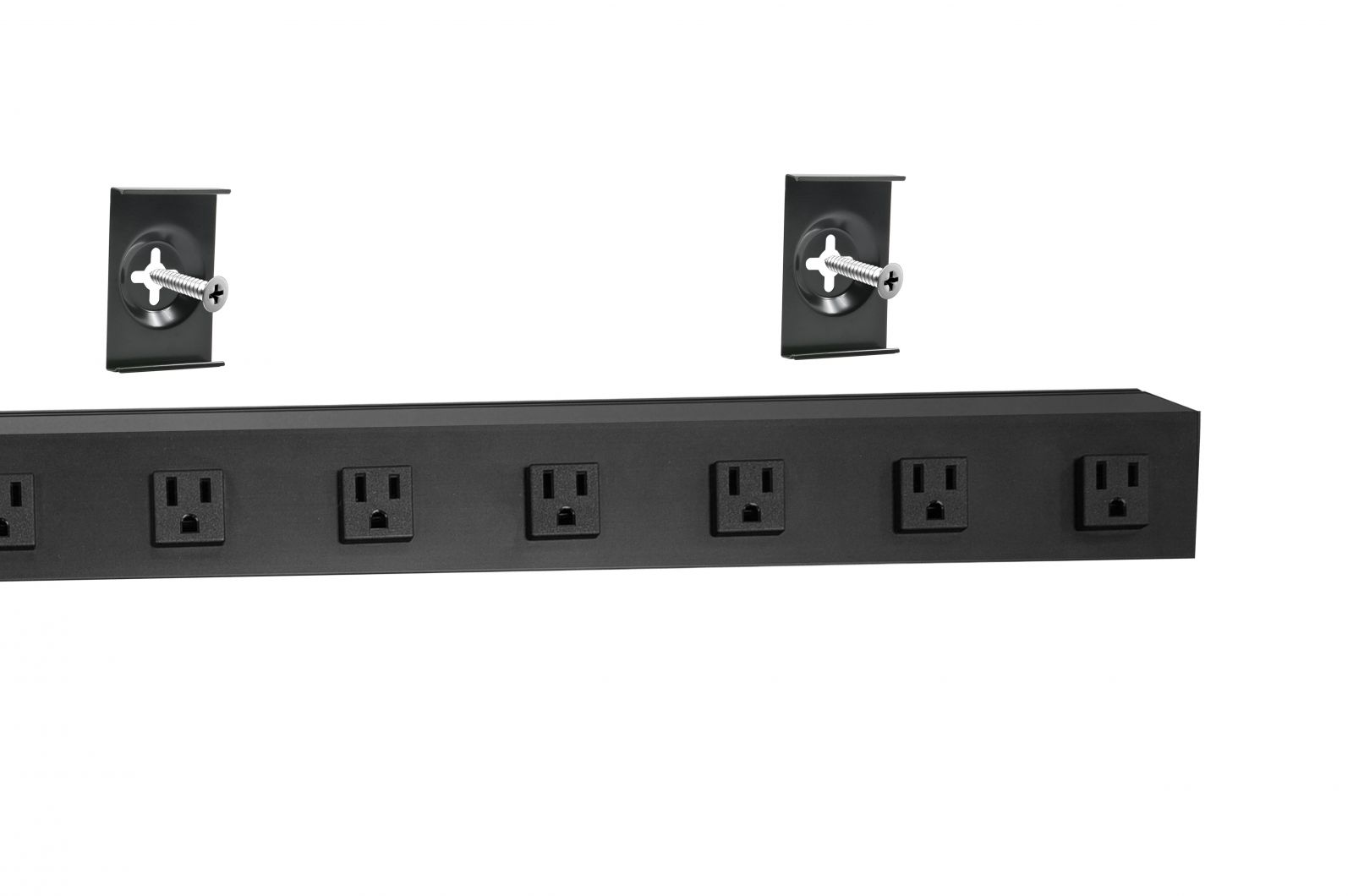

  • Metal Chassis with removable mounting brackets
  • Heavy duty cord, detachable (IEC 13 to NEMA5-15P)
  • 8 Controllable Receptacles (Front)
  • Button Panel included, to indicate indivdiual outlet status or power on/off each outlet manually
  • On/off switch with built-in circuit breaker
  • Network Interface, 1 x RJ45, 1 x RJ11(6P4C), 1 x RJ11(6P2C)

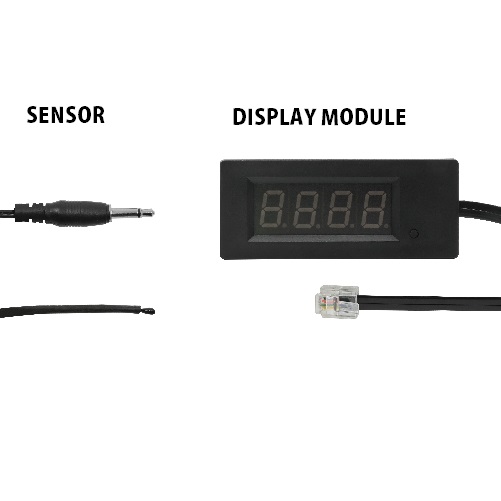

  • Temperature/Humidity Sensor
  • Detachable LED display module



 PRODUCT  INFORMATION

 Model no.   SIP-V5
 Color  Customization
 Material of Construction  Aluminum Chassis with removable mounting brackests
 Product Dimensions  40.5" (L) x 2.24" (W) x 1.71" (H)
 AC POWER /
 SURGE PROTECTION
 Surge Protection  Yes - 1020 Joules Rating
 Voltage  125 Vac
 UL 1449 VPR  500V
 Duty cycle current  3KA
 Current  12A
 Frequency Compatibility  50/60 Hz
 Output Receptacles  NEMA 5-15R
 Outlet numbers  8
 Plug Type  NEMA 5-15P
 Input Cord Length   Customization. As laws and regulations is Max. 4.5M,  Min.1.5M
 Input Phase  Single-Phase
 OVP  Over/under voltage shutdown protection
 INTERFACE  Interface Ports  1 x RJ45 (10/100Mbps Ethernet network)
 1 x RJ11 (6P4C)
 1 x RJ11 (6P6C)
 LED  LED Indicator  1 x Ground LED indicator
 1 x AC fault LED indicator
 1 x OH (over-humidity) LED indicator
 1 x OT (over-Temperature) LED indicator
 1 x OC/OV (over-current/voltage) LED indicator
 CERTIFICATIONS  Certifications  UL 60950-1, 2nd Edition, 2011-12-19
(Information Technology Equipment - Safety - Part 1: General Requirements)
 CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12
 (Information Technology Equipment - Safety - Part 1: General Requirements)
 RoHS Compliant
