02-083

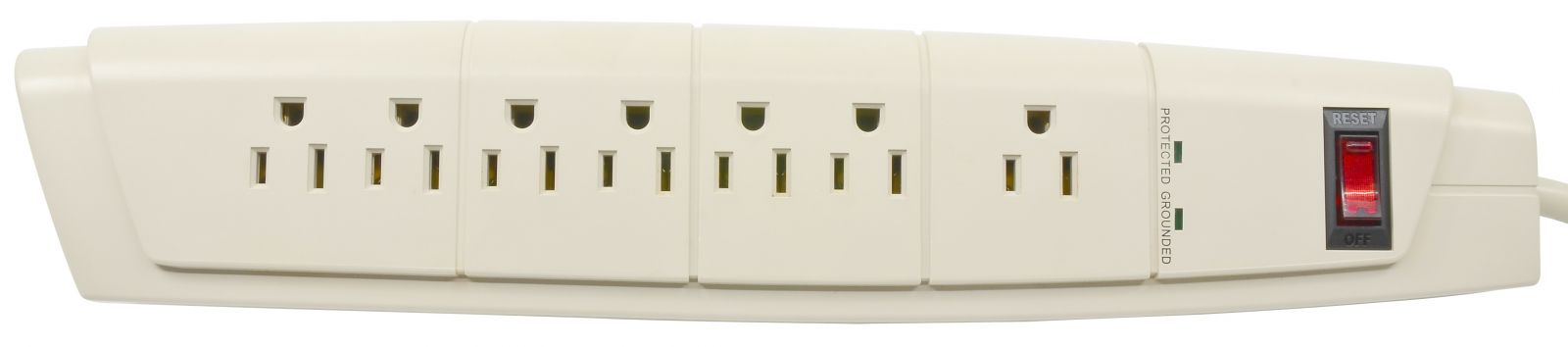

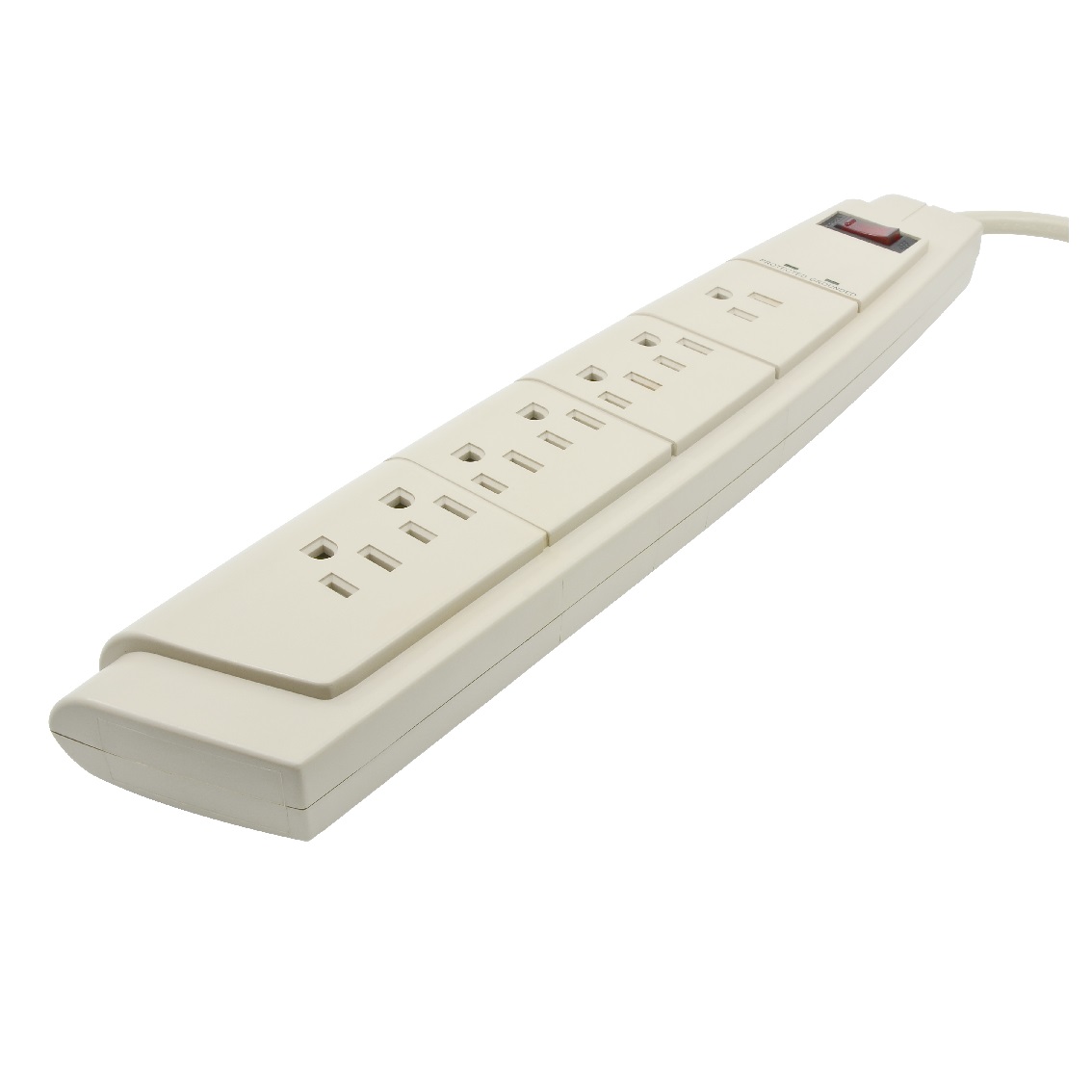

7 Outlet Surge Protector
  • 7 Outlet Surge Protector
  • 1 Transformer Spaced Outlet
  • 6 Standard Outlets
  • 7 outlets are rated at 1650 Joules max
  • Phone/Fax, Network, Coaxial Protection - Optional


Safety:

  •  With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation.
  • It’s optional for Phone/Fax, Network, Coaxial Protection, give you more safer life.

Convenient:

  • Just plug-in, from 1 outlets change to 7 Outlets with 125V working voltage, do not have to worry about the problem of insufficient outlet, especially with
    1 transformer spaced outlet, no more adapter size issue concern.
  • Click master switch to turn on/off to control whole power strip power.
  • The long wire of power strip solution can totally solve the short wire problem of using electronic device.

Appearance:

02-086 is simple and easy design, not too much complicated appearance.

7 Outlets Surge Protector

 PRODUCT  INFORMATION

 Model no.   02-083-xMS (x can be 3 to 5)
 Color  Customization
 Material of Construction  Plastic
 AC POWER /
 SURGE PROTECTION
 Surge Protection  Yes - max. 1650 Joules Rating
 Voltage  125Vac
 UL 1449 VPR  L-N 400V, L-G 500V, N-G 500V
 Duty cycle current  3KA
 Current  15A
 Frequency Compatibility  60 Hz
 Output Receptacles  NEMA 5-15R
 Outlet numbers  7 (6 Standard outlests + 1 Transformer spaced outlet)
 Plug Type  NEMA 5-15P
 Input Cord Length   2 FT to 25 FT
 Input Phase  Single-Phase
 LAN CIRCUITS  Wires Protected  Pins 1, 2, 3, & 6
 Connectors  RJ-45 Shared with Telco
 Clamping Level  6.0 - 8.2 Vdc
 TELCO PROTECTION  Connectors  2 or 3 RJ11 or RJ45
 Clamping Level  6.0 - 8.2 Vdc
 UNIVERSAL COAXIAL PROTECTION  Connections   F type 2 or 4
 CERTIFICATIONS  Certifications   Tested to UL 1363, Third Edition, dated May 2, 2007
 including revisions through October 13, 2009
 UL 1449, Third Edition, dated September 29, 2006,
including revisions through May 3, 2010.
 CSA CSA C22.2 No. 21-95, Eighth Edition
 Canadian Standards for Electromagnetic Interference (EMI) Filters
 CSA C22.2 No. 8-1986, Fourth Edition
 CSA Technical Information Letters A-24 dated October 31, 1995
 and I_11B dated May 13, 1986
 RoHS Compliant

1 Master On/off switch with built-in circuit breaker

*  Phone/Fax Protection - optional

   Network Protection - optional

   Coaxial Protection - optional
