Safety:
Convenient:
Appearance:
02-086 is simple and easy design, not too much complicated appearance.

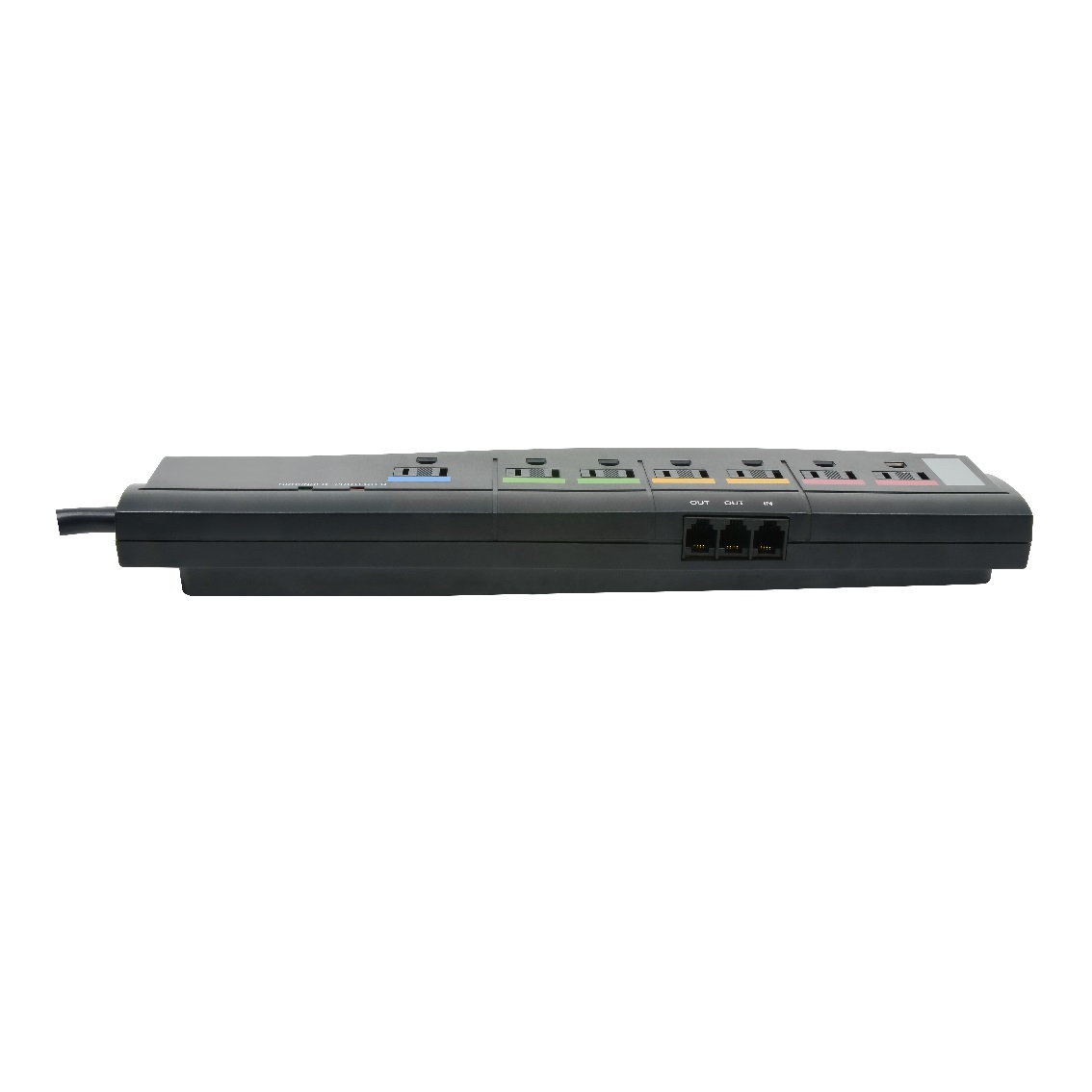

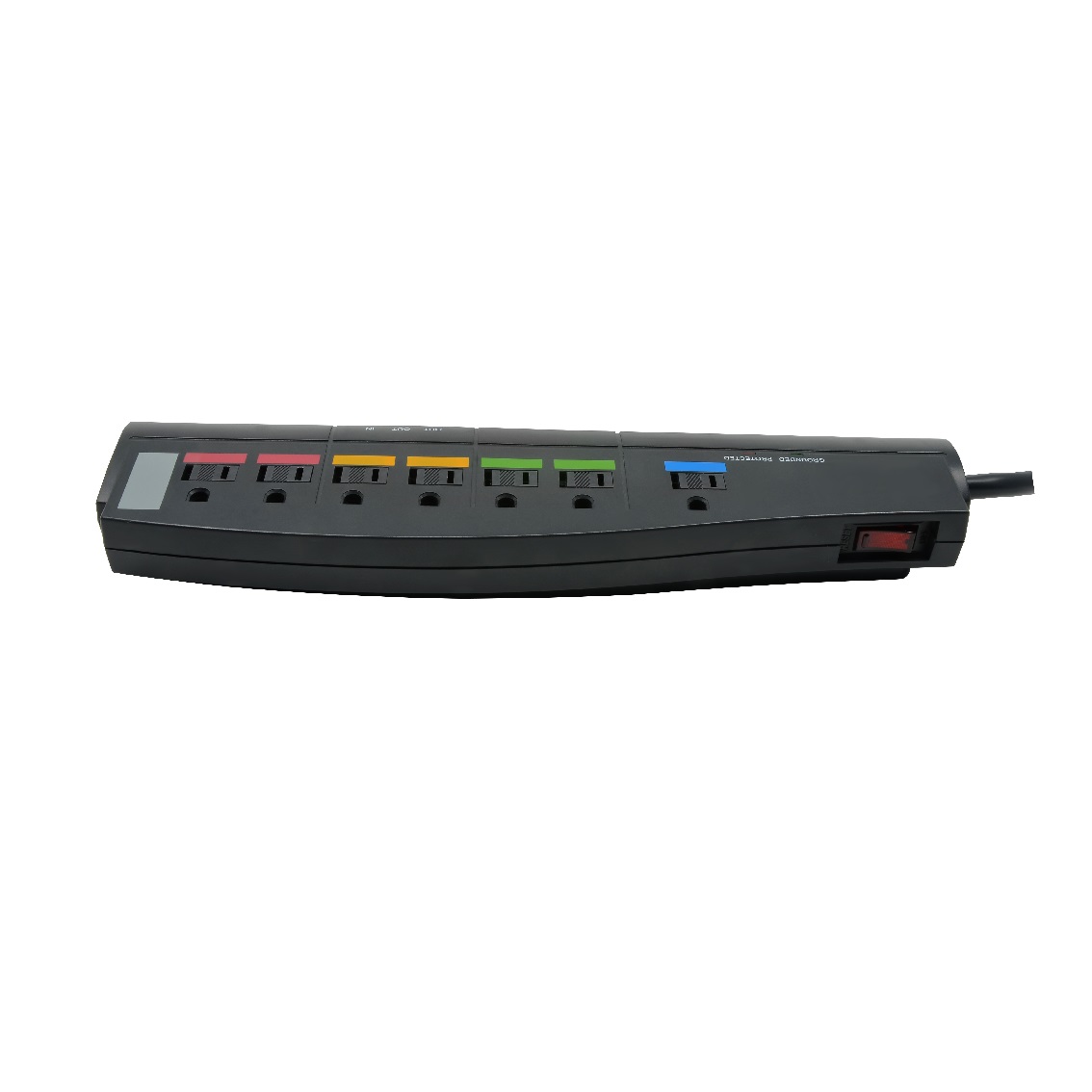

7 Outlets Surge Protector
PRODUCT INFORMATION |
Model no. | 02-086-xMS (x can be 3 to 5) |
Color | Customization | |
Material of Construction | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 1650 Joules Rating |
Voltage | 125Vac | |
UL 1449 VPR | L-N 400V, L-G 500V, N-G 500V | |
Duty cycle current | 3KA | |
Current | 15A | |
Frequency Compatibility | 60 Hz | |
Output Receptacles | NEMA 5-15R | |
Outlet numbers | 7 (6 Standard outlests + 1 Transformer spaced outlet) | |
Plug Type | NEMA 5-15P | |
Input Cord Length | 2 FT to 25 FT | |
Input Phase | Single-Phase | |
LAN CIRCUITS | Wires Protected | Pins 1, 2, 3, & 6 |
Connectors | RJ-45 Shared with Telco | |
Clamping Level | 6.0 - 8.2 Vdc | |
TELCO PROTECTION | Connectors | 2 or 3 RJ11 or RJ45 |
Clamping Level | 6.0 - 8.2 Vdc | |
UNIVERSAL COAXIAL PROTECTION | Connections | F type 2 or 4 |
CERTIFICATIONS | Certifications | Tested to UL 1363, Third Edition, dated May 2, 2007 including revisions through October 13, 2009 |
UL 1449, Third Edition, dated September 29, 2006, including revisions through May 3, 2010. |
||
CSA CSA C22.2 No. 21-95, Eighth Edition | ||
Canadian Standards for Electromagnetic Interference (EMI) Filters CSA C22.2 No. 8-1986, Fourth Edition |
||
CSA Technical Information Letters A-24 dated October 31, 1995 and I_11B dated May 13, 1986 |
||
RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
