Safety:
Convenient:
Appearance:

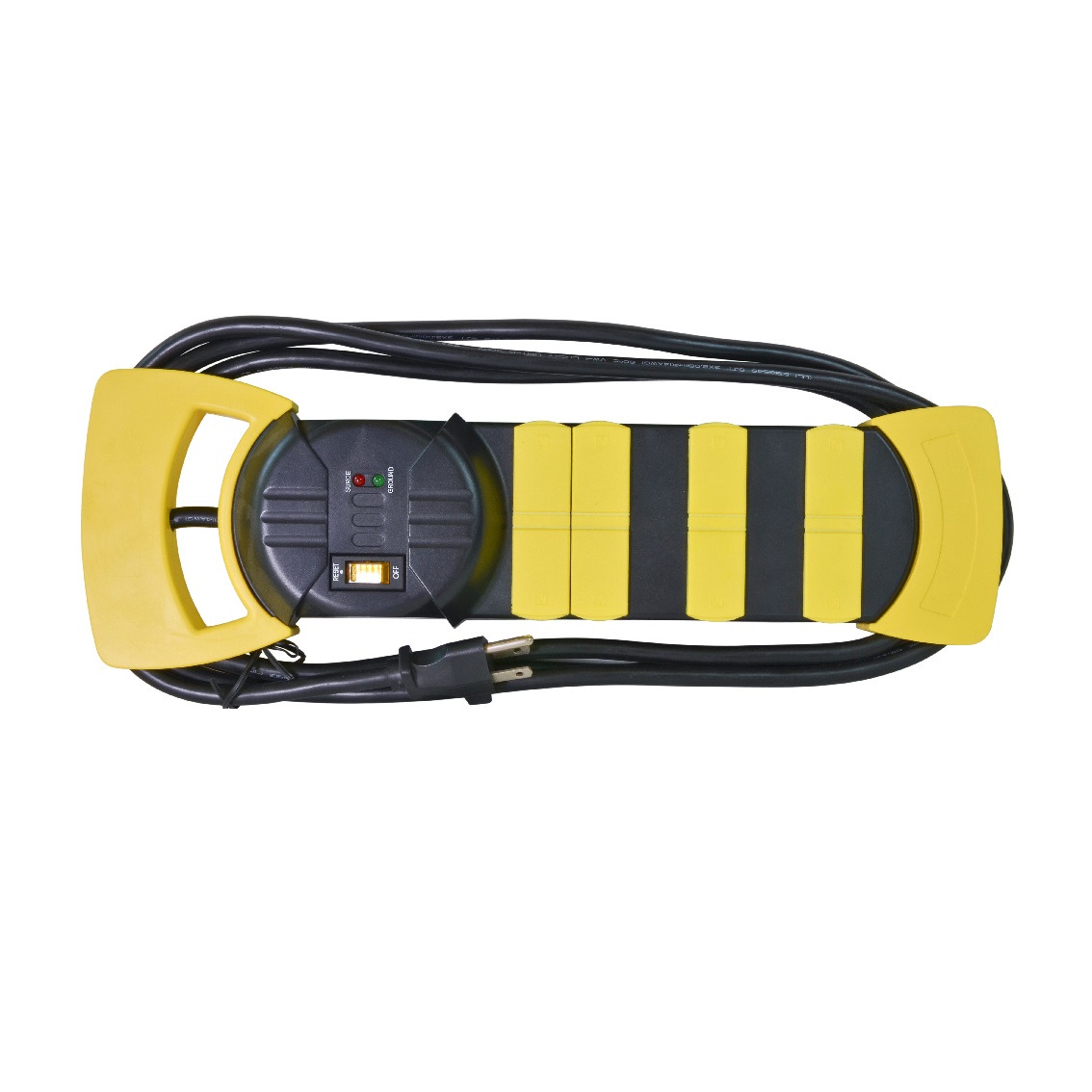

03-083 is very compact and strong, very good for working station or bad environment situation using.
PRODUCT INFORMATION |
Model no. | 03-083 | 03-083-xMS (x can be 6 , 8, 10, 12) |
Color | Customization, BK + Yellow cord management handles receptacles and safety cover |
Customization, BK + Yellow cord management handles receptacles and safety cover |
|
Material of Construction | Galvanized steel | Galvanized steel | |
Product Dimensions | 419.77 mm x 151 (114.25) mm x 40 (30) mm | 419.77 mm x 151 (114.25) mm x 40 (30) mm | |
AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes |
Voltage | 125 Vac | 125Vac | |
UL 1449 VPR | - | 03-083-6MS ~ 10MS:VPR L-N 330V, N-G 400V, N-G 400V 12MS:VPR L-N 500V, L-G 500V, N-G 500V |
|
Duty cycle current | - | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 60 Hz | 60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |

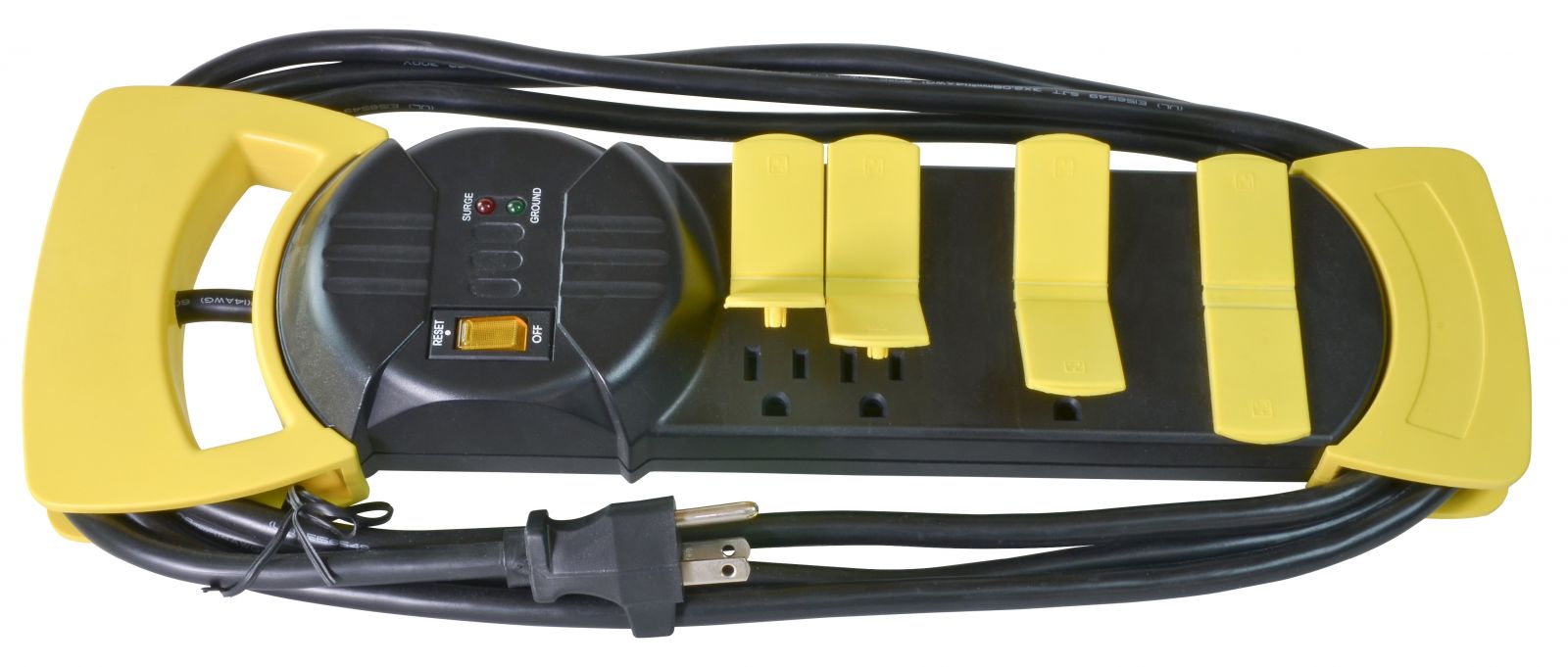

Outlet numbers | 8 with safety cover (4 standard outlets + 4 transformer spaced oulets) | 8 with safety cover (4 standard outlets + 4 transformer spaced oulets) | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | Length between 0.46 and 7.6 meters. | Length between 0.46 and 7.6 meters. | |
Input Phase | Single-Phase | Single-Phase | |
CERTIFICATIONS | Certifications | Tested to UL 1363 Second Edition | Tested to UL 1363 Third Edition, dated May 2, 2007 including revisions through August 27, 2008 |
UL 498, Thirteenth Edition | ANSI/UL 1449 Third Edition, September 29, 2006 including revisions through May 3, 2010 | ||
CSA C22.2 No. 21-95, Eighth Edition | UL 1283, Fifth Edition including revisions through February 20, 2009 | ||
- | UL 498, Thirteenth Edition | ||
RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
