Safety:
Convenient:
Appearance:

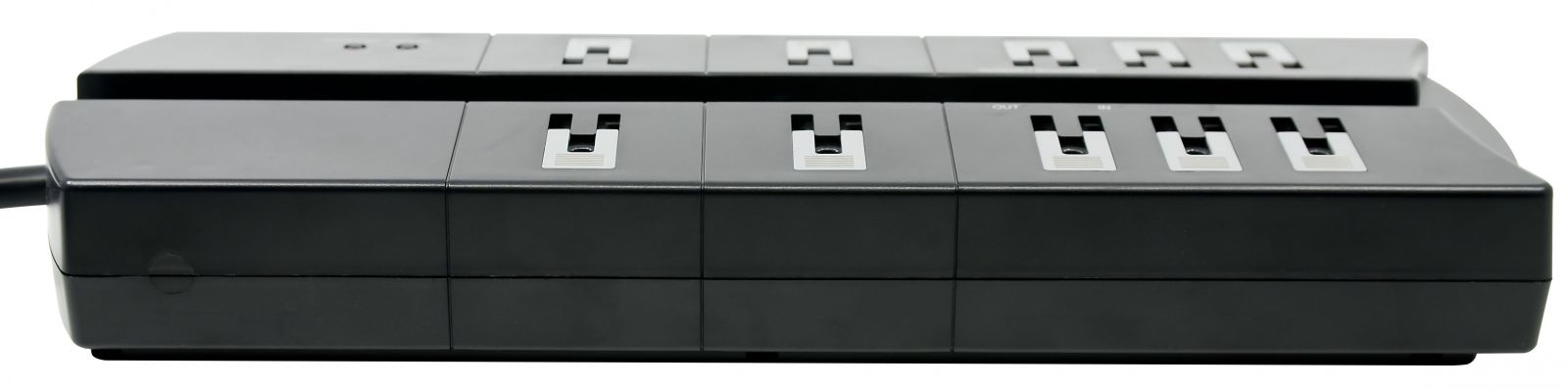

07-019 is compact, strong, and easy design, it is good for office or home using.
PRODUCT INFORMATION |
Model no. | 07-019 |
Color | Customization | |
Material of Construction | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 3600 Joules Rating |
Voltage | 125Vac | |
UL 1449 VPR | L-N 330V, L-G 400V, N-G 400V | |
Duty cycle current | 3KA | |
Current | 15A | |
Frequency Compatibility | 60 Hz | |
Output Receptacles | NEMA 5-15R | |
Outlet numbers | 10 with receptacle covers (6 Standard outlests + 4 Transformer spaced outlets) |
|
Plug Type | NEMA 5-15P | |
Input Cord Length | 1.5 FT to 15 FT | |
Input Phase | Single-Phase | |
TELCO PROTECTION | Connectors | RJ11 or RJ45 |
UNIVERSAL COAXIAL PROTECTION | Connections | F type |
CERTIFICATIONS | Certifications | UL 1363 Third Edition |
UL 1449 Third Edition | ||
UL 497A, 3rd Edition("F") | ||
UL 497B, 3rd Edition("C") | ||
UL 1283, the Standard for Electromagnetic Interference Filters, Fifth Edition | ||
C22.2, No. 21-95, Eighth Edition,indicates evaluation to the requirements | ||
CSA C22.2 No. 8-M1986, Fourth Edition,Electromagnetic Interference (EMI) Filters, | ||
CSA Electrical Technical Information Letters A-24, dated October 31, 1995 and I-11B, |
||
RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
