4 Outlets + Indiviual Swith + Surge Protection　08-030F

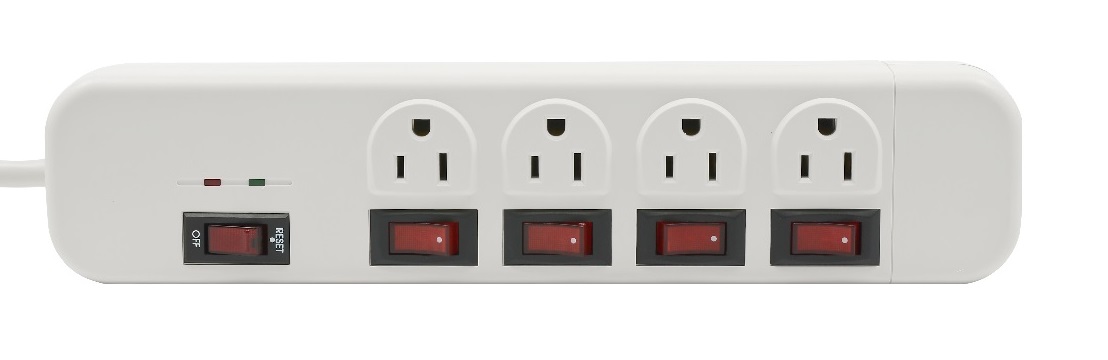

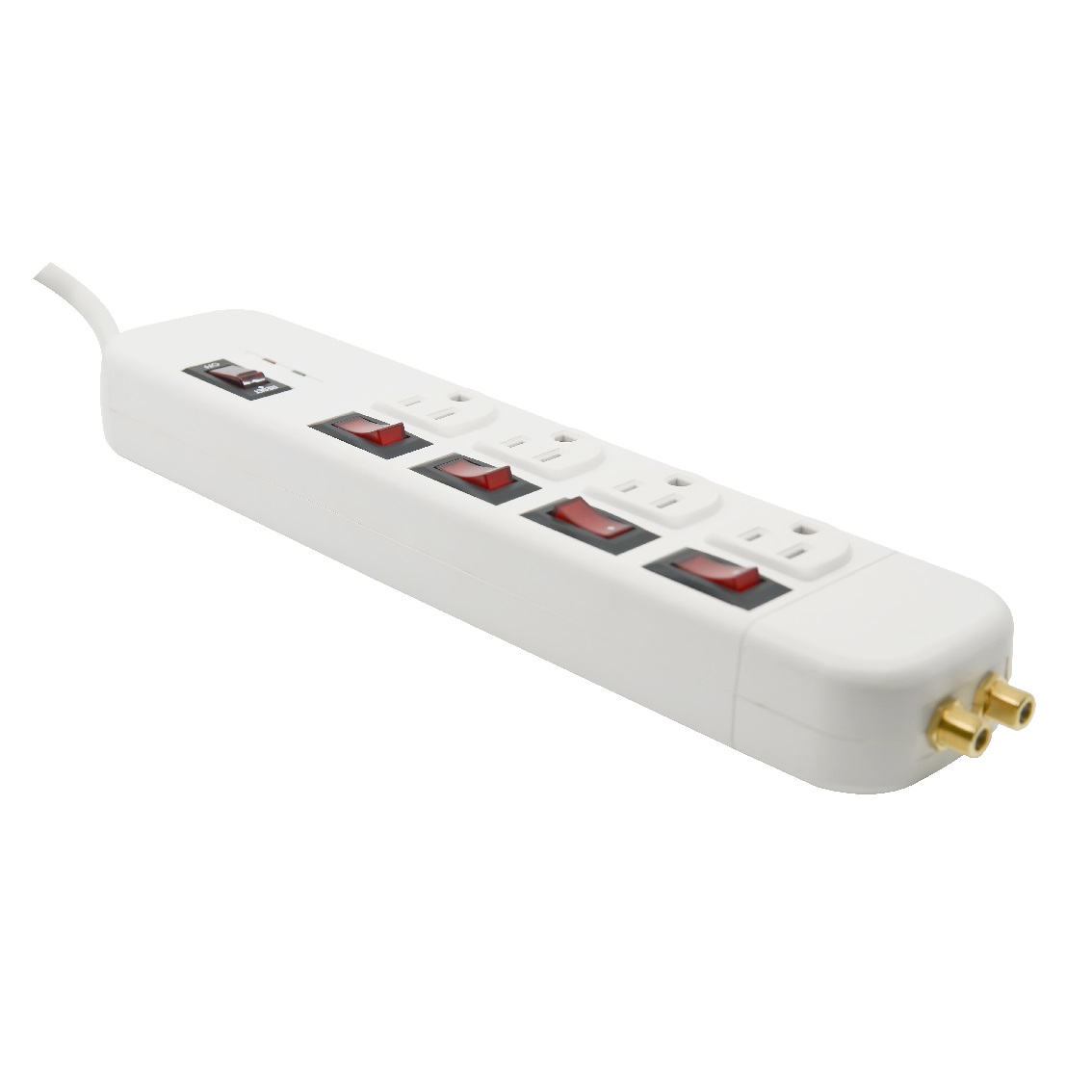

4 Outlet Surge Protector

Safety:

With Surge protection indicator light, and master On/off switch and circuit breaker, enhance Safety identification level, easily
aware of product working situation.
It’s optional for Phone/Fax, Network, Coaxial Protection, give you more safer life.

Convenient:

Just plug-in, from 1 outlets change to 4 Outlets with 125V working voltage, do not have to worry about the problem of insufficient outlet.
Just one click for individual outlet to turn on/off the connected electronic device, or click master switch to turn on/off to control whole power strip power.
The long wire of power strip solution can totally solve the short wire problem of using electronic device.

Appearance:

08-03F is compact, strong, and easy design, not too much complicated appearance, it is good for office or home using.

4 Switched Outlets Surge Protector

PRODUCT INFORMATION	Model no.	08-030-F	08-030-F-xMS (x can be 4 to 7)
	Color	Customization	Customization
	Material of Construction	Plastic	Plastic
AC POWER / SURGE PROTECTION	Surge Protection	No	Yes - max. 2100 Joules Rating
	Voltage	125Vac	125Vac
	UL 1449 VPR	No	L-N 400V, L-G 500V, N-G 500V
	Duty cycle current	No	3KA
	Current	15A	15A
	Frequency Compatibility	60 Hz	60 Hz
	Output Receptacles	NEMA 5-15R	NEMA 5-15R
	Outlet numbers	4	4
	Plug Type	NEMA 5-15P	NEMA 5-15P
	Input Cord Length	1.5 FT to 15 FT	1.5 FT to 15 FT
	Input Phase	Single-Phase	Single-Phase
LAN CIRCUITS	Wires Protected	Pins 1, 2, 3, & 6	Pins 1, 2, 3, & 6
	Connectors	RJ-45 Shared with Telco	RJ-45 Shared with Telco
	Clamping Level	6.0 - 8.2 Vdc	6.0 - 8.2 Vdc
TELCO PROTECTION	Connectors	2 or 3 RJ11 or RJ45	2 or 3 RJ11 or RJ45
TELCO PROTECTION	Clamping Level	6.0 - 8.2 Vdc	6.0 - 8.2 Vdc
UNIVERSAL COAXIAL PROTECTION	Connections	F type 2 or 4	F type 2 or 4
CERTIFICATIONS	Certifications	Tested to UL 1363, Third Edition	Tested to UL 1363, Third Edition, latest revision dated August 27, 2008
		CSA C22.2 No. 21-95, Eighth Edition	UL 1449, Third Edition, Dated September 29, 2006.
		-	CSA C22.2 No. 21-95, Eighth Edition
		-	C22.2 No. 8-M1986, Electromagnetic Interference (EMI) Filters, Fifth Edition;
		-	CSA Electrical Technical Information Letters A-24, dated October 31, 1995 and I-11B, dated May 13, 1986.
		RoHS Compliant	RoHS Compliant

* 1 Master On/off switch with built-in circuit breaker and 4 Individual switches to each outlet

* Phone/Fax Protection - optional

Network Protection - optional

Coaxial Protection - optional
