Duplex Receptacle + Surge Protection 10-025 (13R-007)
Duplex Receptacle with Surge Protector- Easy to intsall
- Duplex Receptacle With Surge protection and With 125V working voltage
- For Indoor Use Only
Safety:
- With Surge protection, max, 1800 Joules, enhance Safety identification level, it is more safer when its working.
Convenient:
- Easy to install in wall.
Appearance:

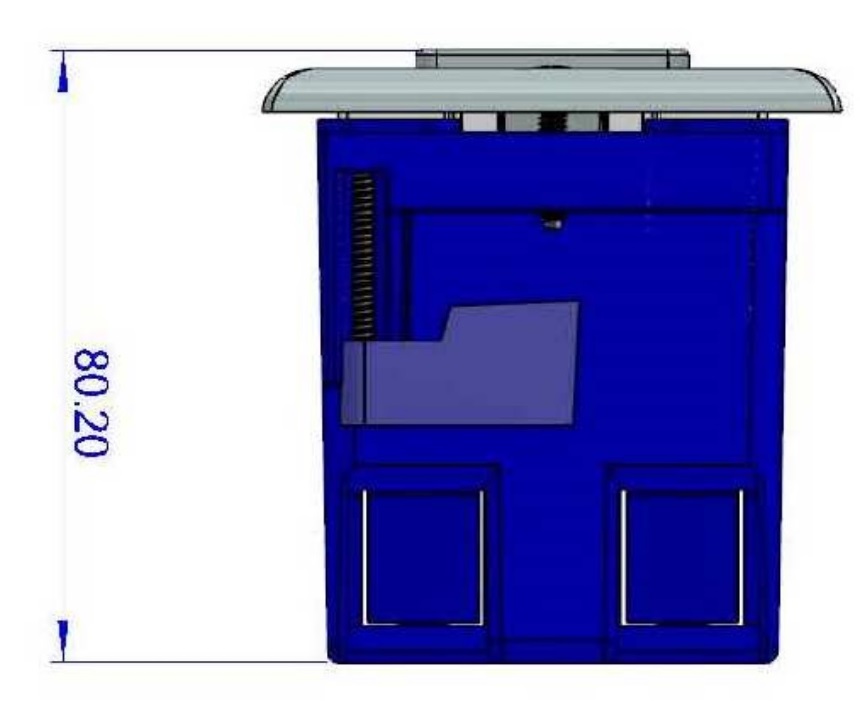

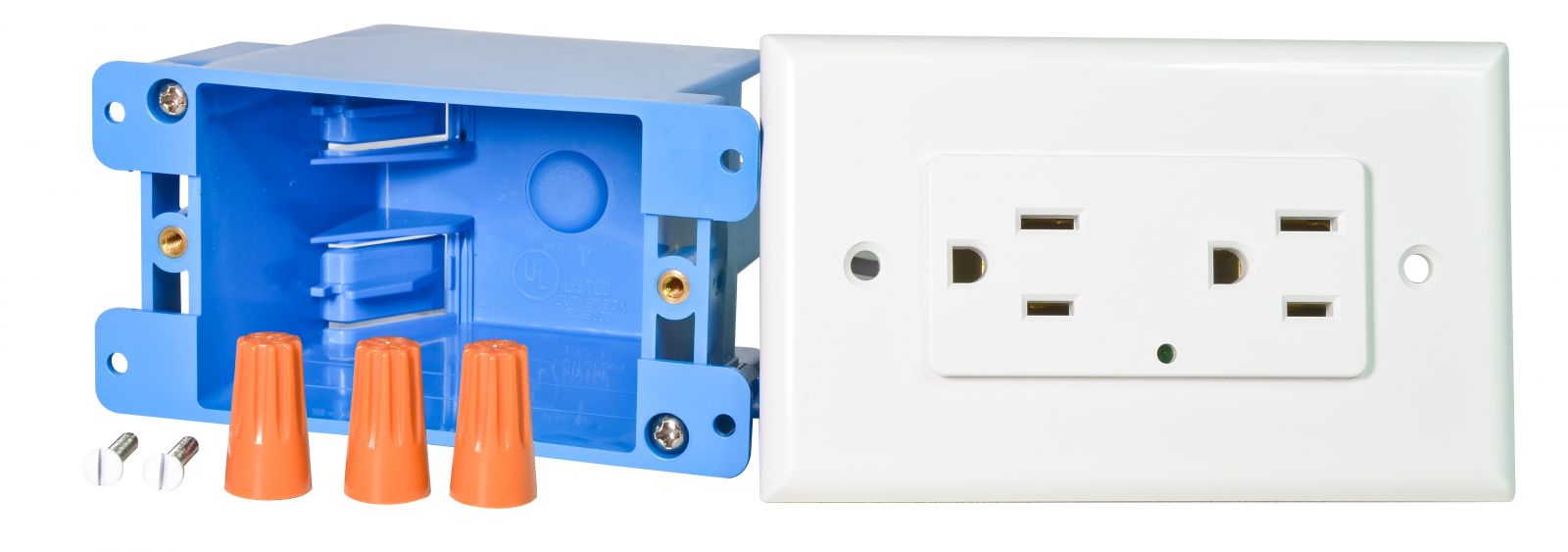

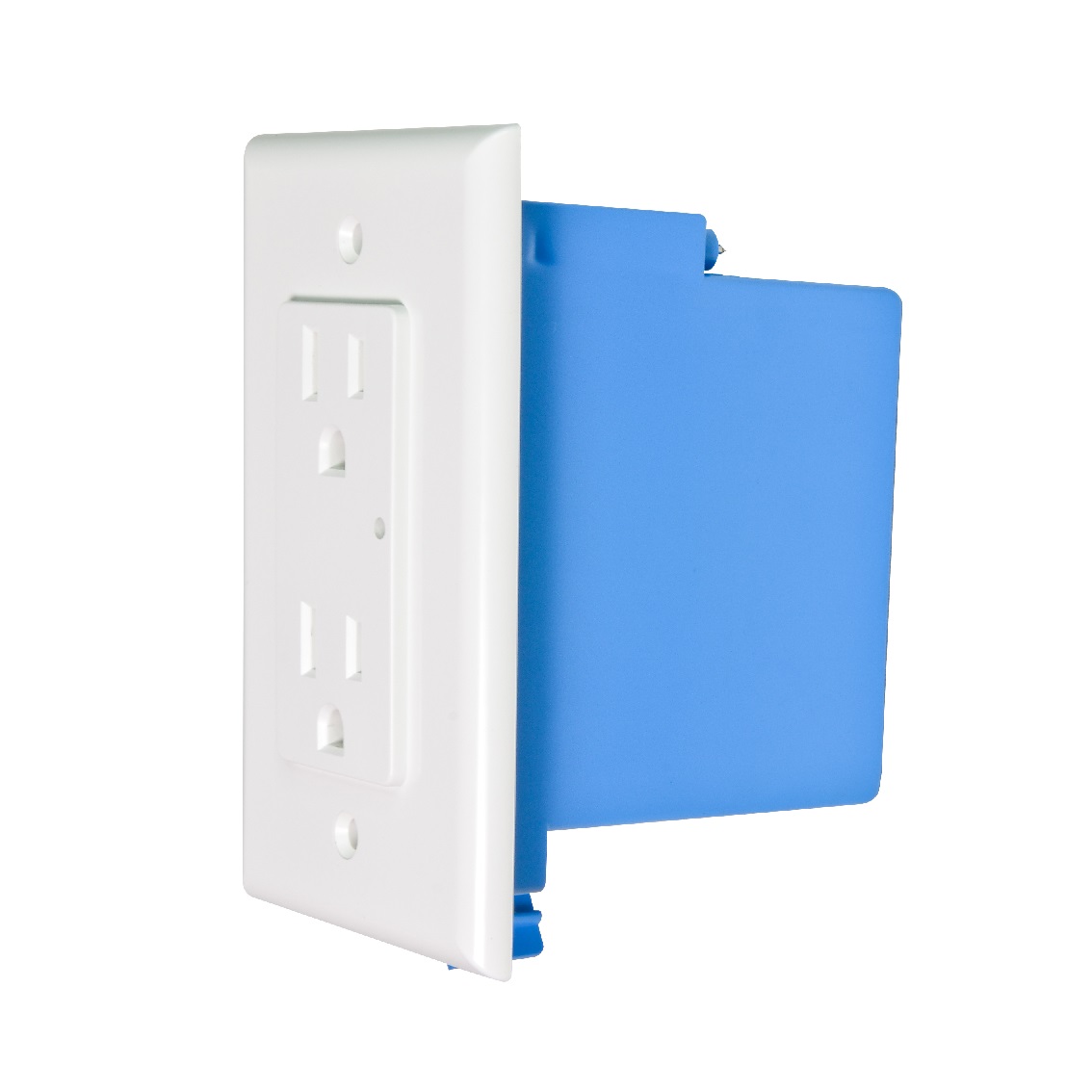

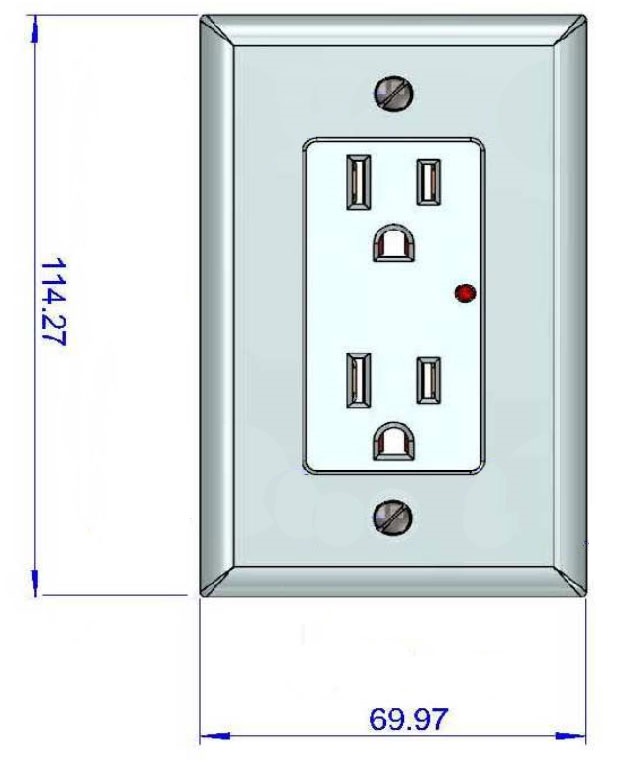

10-025 (13R-007) is compact and strong, Plastic Faceplate with installation box.
And with LED surge protector indiactor light (optional).
|
PRODUCT INFORMATION |
Model no. | 10-025 (13R-007) |
| Color | Customization | |
| Material of Construction | Plastic | |
| AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 1800 Joules Rating |
| Voltage | 125 Vac | |
| UL 1449 VPR | L-N 500V, L-G 500V, N-G 500V | |
| Duty cycle current | 3KA | |
| Current | 15A | |
| Frequency Compatibility | 60 Hz | |
| Output Receptacles | NEMA 5-15R | |
| Outlet numbers | 2 | |
| Plug Type | No | |
| Input Cord Length | No | |
| Input Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | UL 1449 |
| UL 489 | ||
| UL 514D | ||
|
CSA C22.2 No. 8-M1986, the Standard for Electromagnetic Interference |
||
| ETL/cETL Listed | ||
| RoHS Compliant |
