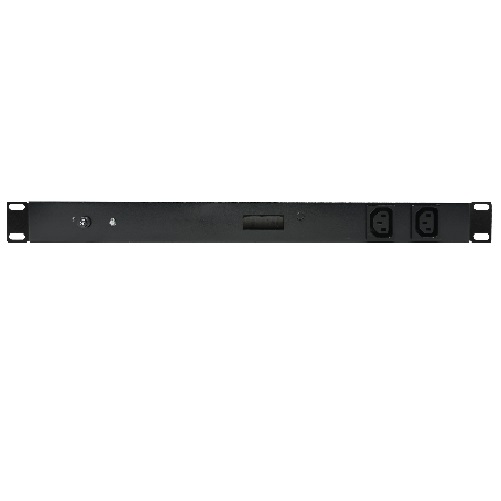

Amperage/Voltage Meter Power Rack　11-030-354H-DM

Horizontal Power Distribution Unit

Safety:

  • With Amperage/Voltage meter, monitor unit condition any time.
  • With Surge protection, enhance Safety identification level, easily aware of product working situation. Optional
  • With heavy duty cord, avoid the electric wire go off due to wire twisted.

Convenient:

  • Ideal for use of multiple convenience outlets for powering various of equipment.
  • Long type power strip, can fix much power issues of electronic or machine which cannot be used due to electric cord range.
  • The long wire of power strip solution can totally solve the short wire problem of using electronic device.
  • 1 U Metal Chassis design for rack.

Appearance:

11-030-354H-DM is a metal power rack, simple, compact and easy design, not too much complicated appearance.

Optional for IEC/NEMA Receptacle type.

Textured aluminum shell，light weight, easy to move, durability greatly enhanced.

 PRODUCT  INFORMATION

  Model no.   11-030-354H-DM 11-030-354-H-DM  11-030-354H-DM
 Color  Customization  Customization  Customization
 Material of Construction  1U Metal Chassis with built-in mount means  1U Metal Chassis with built-in mount means  1U Metal Chassis with built-in mount means
 AC POWER /
 SURGE PROTECTION		  Surge Protection  -  -  -
 Voltage  125Vac  125Vac  100~240Vac
 UL 1449 VPR  -  -  -
 Duty cycle current  -  -  -
 Current  12A  16A  12A
 Frequency Compatibility  50/60 Hz  50/60 Hz  50/60 Hz
 Output Receptacles  NEMA 5-15R   NEMA 5-20R   IEC C13
 Outlet numbers  8 ~10   8 ~10   8 ~12
 Plug Type  NEMA 5-15P  NEMA 5-20P  IEC/NEMA
 Input Cord Length    As order requirement. (As laws and regulations is Max. 4.5M,  Min.1.5M)  As order requirement. (As laws and regulations is Max. 4.5M,  Min.1.5M)  As order requirement. (As laws and regulations is Max. 4.5M,  Min.1.5M)
 Input Phase  Single-Phase  Single-Phase  Single-Phase
 CERTIFICATIONS  Certifications  UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements)  UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements)  UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements)
 CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements)  CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements)  CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements)
 RoHS Compliant  RoHS Compliant  RoHS Compliant
