Safety:
Convenient:
Appearance:

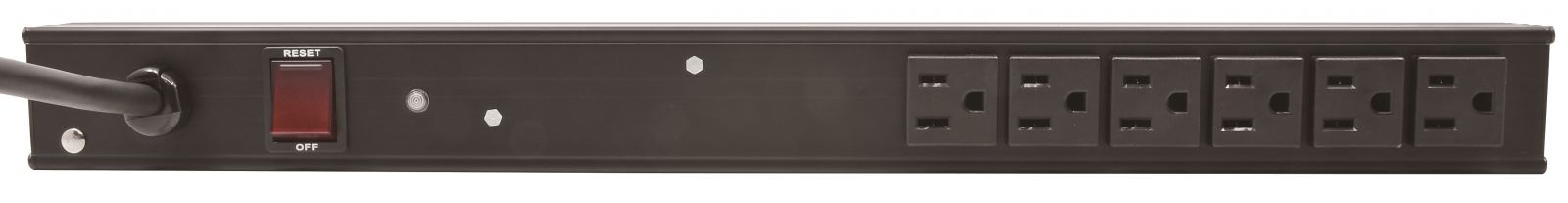

12-033 is compact, strong, and easy design, it is good for office, home using or working station.
|
PRODUCT INFORMATION |
Model no. | 12-033 |
| Color | Customization | |
| Material of Construction | Aluminum | |
| AC POWER / SURGE PROTECTION |
Surge Protection |
Yes - 900 Joules Rating |
| Voltage | 125Vac | |
| UL 1449 VPR | L-N 900V, L-G 900V, N-G 800V | |
| Duty cycle current | 3KA | |
| Current | 15A | |
| Frequency Compatibility | 50/60 Hz | |
| Output Receptacles | NEMA 5-15R | |
| Outlet numbers | 6 | |
| Plug Type | NEMA 5-15P | |
| Input Cord Length | Length between 1.5 FT to 25 FT | |
| Input Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | Marine 1449 Recognize component |
| UL 1363 Third Edition | ||
| UL 1449, Third Edition | ||
| C22.2, No. 21-95, Eighth Edition,indicates evaluation to the requirements | ||
| CSA C22.2 No. 8-M1986, Fourth Edition | ||
| Electromagnetic Interference (EMI) Filters, Fourth EditionCSA Electrical | ||
| Certification ECN 516/I-11B, Surge/Transient Voltage Suppressors, dated September 2, 1986 | ||
| RoHS Compliant |
* 1 Master On/off switch and Circuit breaker
