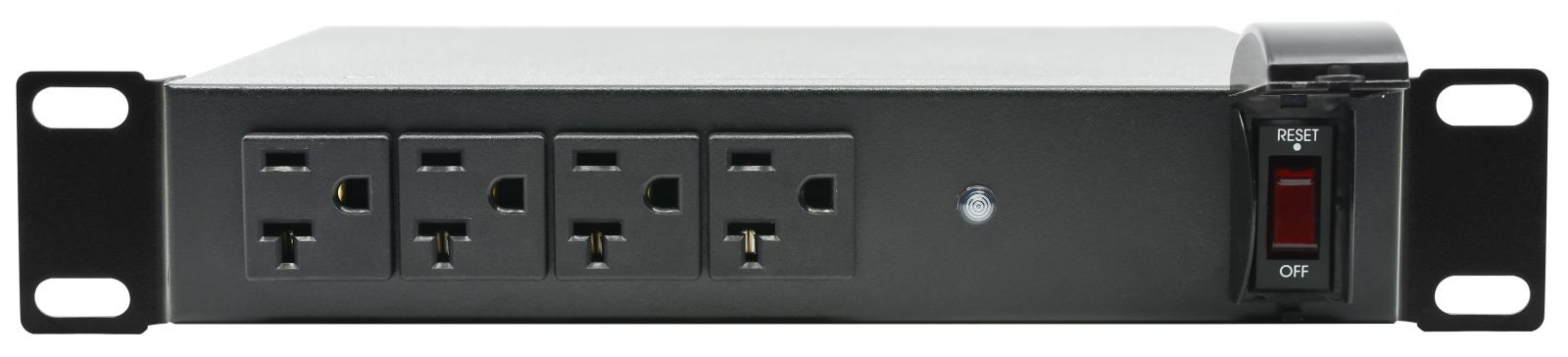

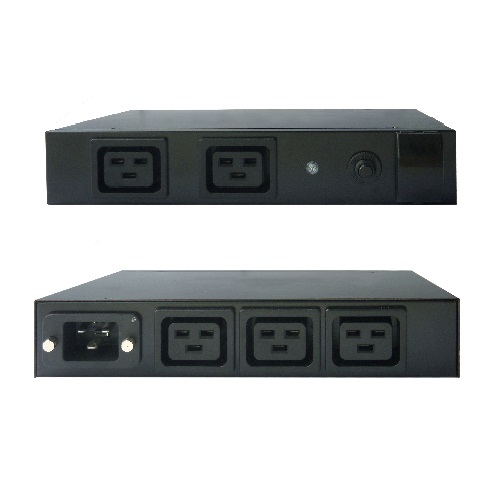

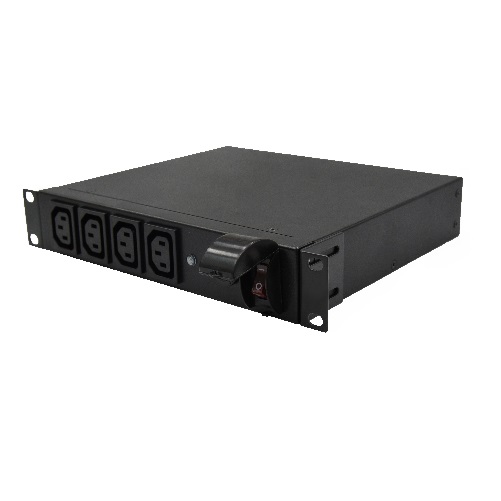

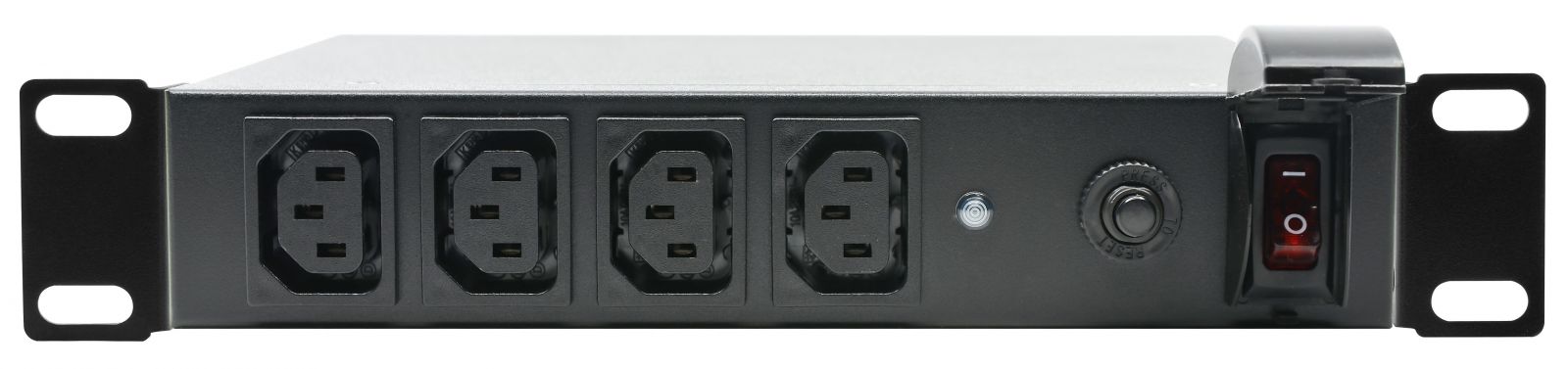

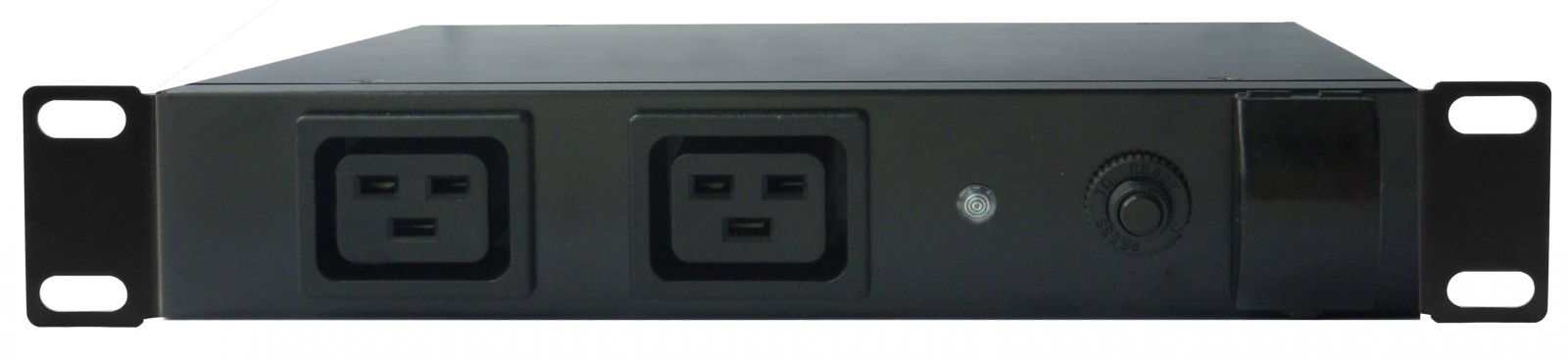

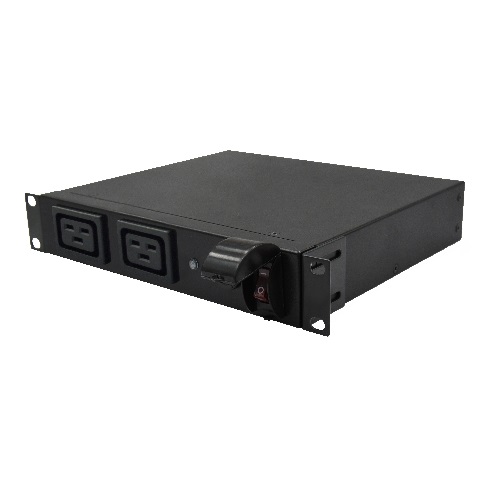

Half Rack & Mountable Power 14-028
Half Rack mountable Power Strip- With master 1 on/off master switch and circuit breaker
- Aluminum Housing
- Available Rack and mount power strip
Safety:
- With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation.
- With detachable heavy duty cord, avoid the electric wire go off due to wire twisted.
Convenient:
- Ideally use for horizontally mounted
- Just plug-in, from 1 outlets change to 5 Outlets, do not have to worry about the problem of insufficient outlet.
- The long wire of power strip solution can totally solve the short wire problem of using electronic device.
Appearance:
RT half rack is simple, long and easy design, easy sharing more outlets with others and other device, not too much complicated appearance.
|
PRODUCT INFORMATION |
Model no. | 14-028-12, 14-028-12S | 14-028-16, 14-028-16S | 14-028-I12, 14-028-I16 |
| 14-028-i13/ Color | Customization | Customization | Customization | |
| Material of Construction | Steel | Steel | Steel | |
| AC POWER / SURGE PROTECTION |
Surge Protection | YES- OPTIONAL | YES- OPTIONAL | - |
| Voltage | 125 Vac | 125 Vac | 100-240 Vac | |
| UL 1449 VPR | L-N 500V | L-N 500V | - | |
| Duty cycle current | 3 KA | 3 KA | - | |
| Current | 12A | 16A | 12A / 16A | |
| Frequency Compatibility | 60 Hz | 60 Hz | 60 Hz | |
| Output Receptacles | NEMA 5-15P | NEMA 5-20P | IEC13 / 1EC19 | |
| Outlet numbers | 9 | 9 | IEC13:8 , IEC19:5 | |
| Plug Type | NEMA 5-15P | NEMA 5-20P | IEC13 / 1EC19 | |
| Input Cord Length | Customization. As laws and regulations is Max. 4.5M, Min.1.5M | Customization. As laws and regulations is Max. 4.5M, Min.1.5M | Customization. As laws and regulations is Max. 4.5M, Min.1.5M | |
| Input Phase | Single-Phase | Single-Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements) | UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements) | UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements) |
| CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements) | CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements) | CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements) | ||
| RoHS Compliant | RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
