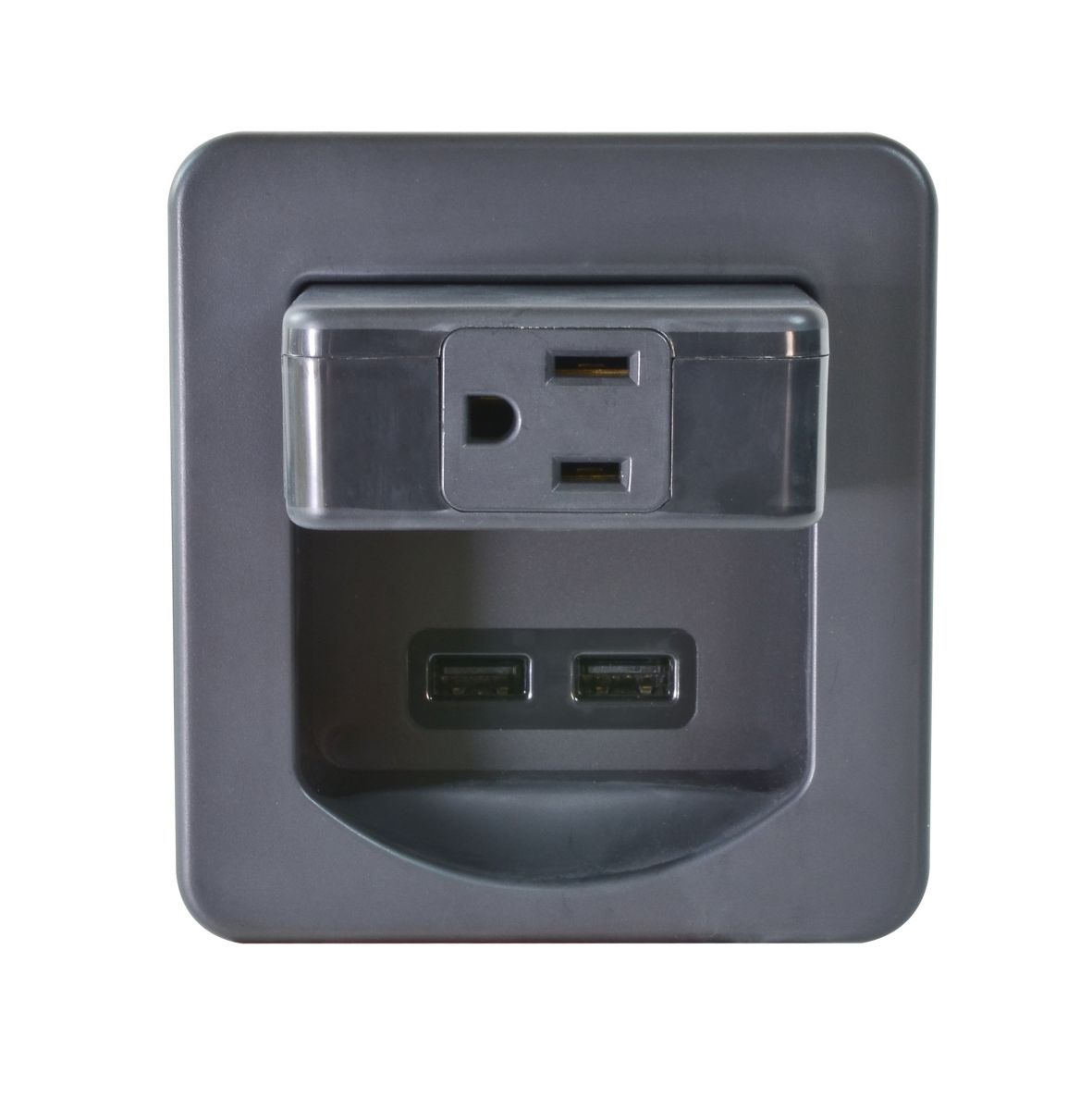

In Desk Square Type Solution + Rotating Outlet 15-001
Desktop Rotating Power- Direct Plug-in for easy using with 125V working voltage
- 3 Rotating Outlet with 2 USB charger Ports or
3 Rotating Outlet with 1 USB charger Ports and 1 RJ45 Jack - Optional - With Surge protection
Safety:
- With heavy duty cord, avoid the electric wire go off due to wire twisted.
- With Surge protection, enhance Safety identification level, it is more safer when its working.
Convenient:

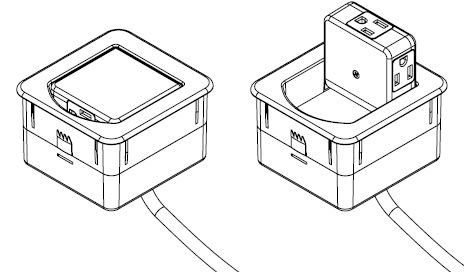

- By hidden type, lead desk more clean and more utility after close the cover when finished using.
- Direct to use electronic device by plug in 15-001.
- Extra RJ45(optional) and USB charger available, integrate with outlet, more easier to sort the using devices.
- No necessary for USB adapter anymore, you can use other electronic and mobile device easily while charging.
Appearance:

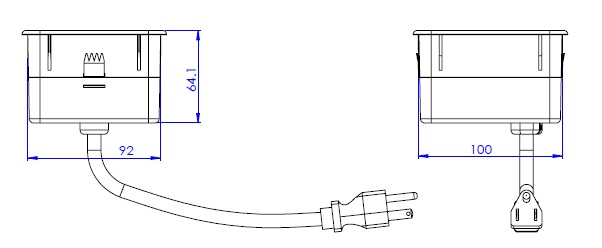

- In desk power, Cut hole size: 92mmW x 100mmL

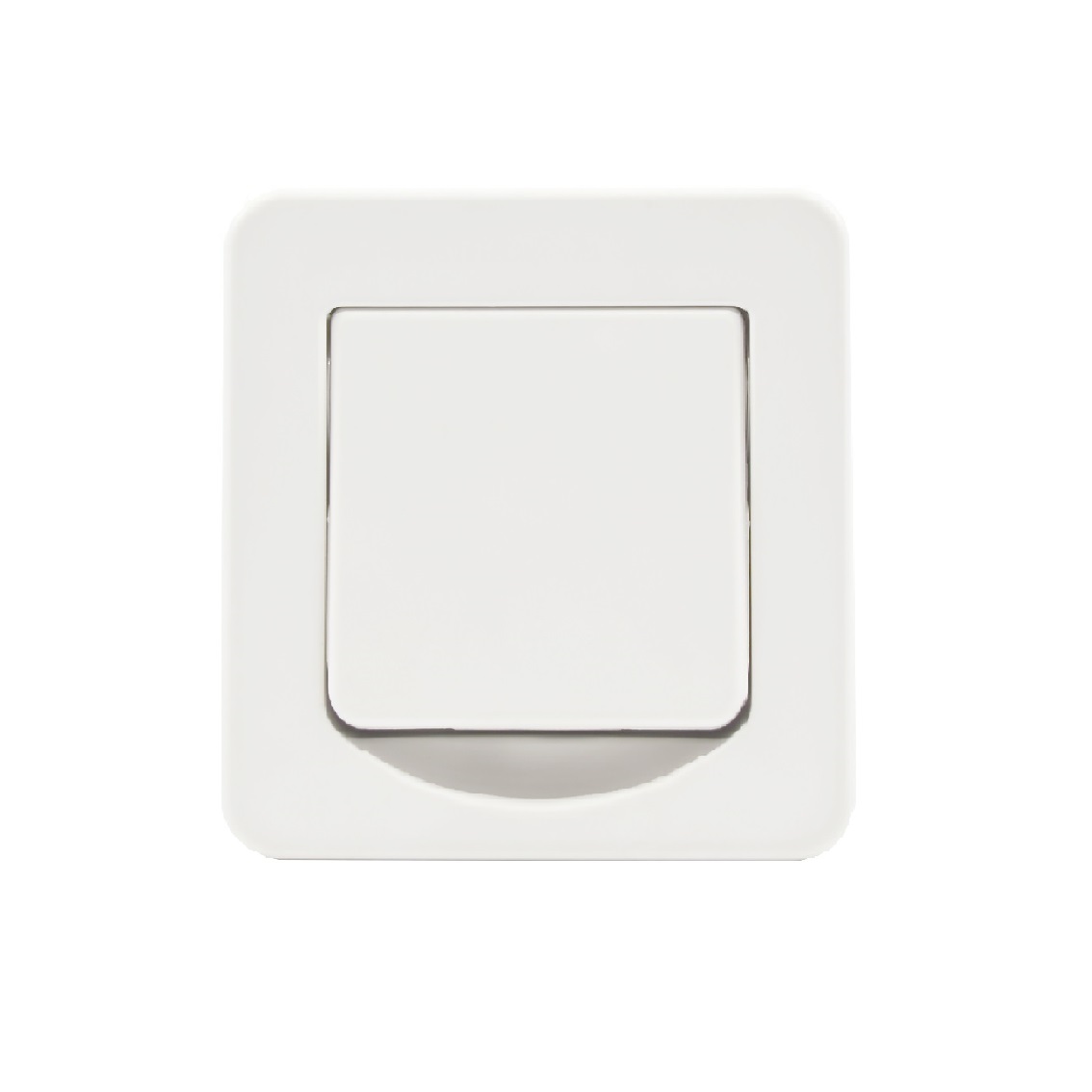

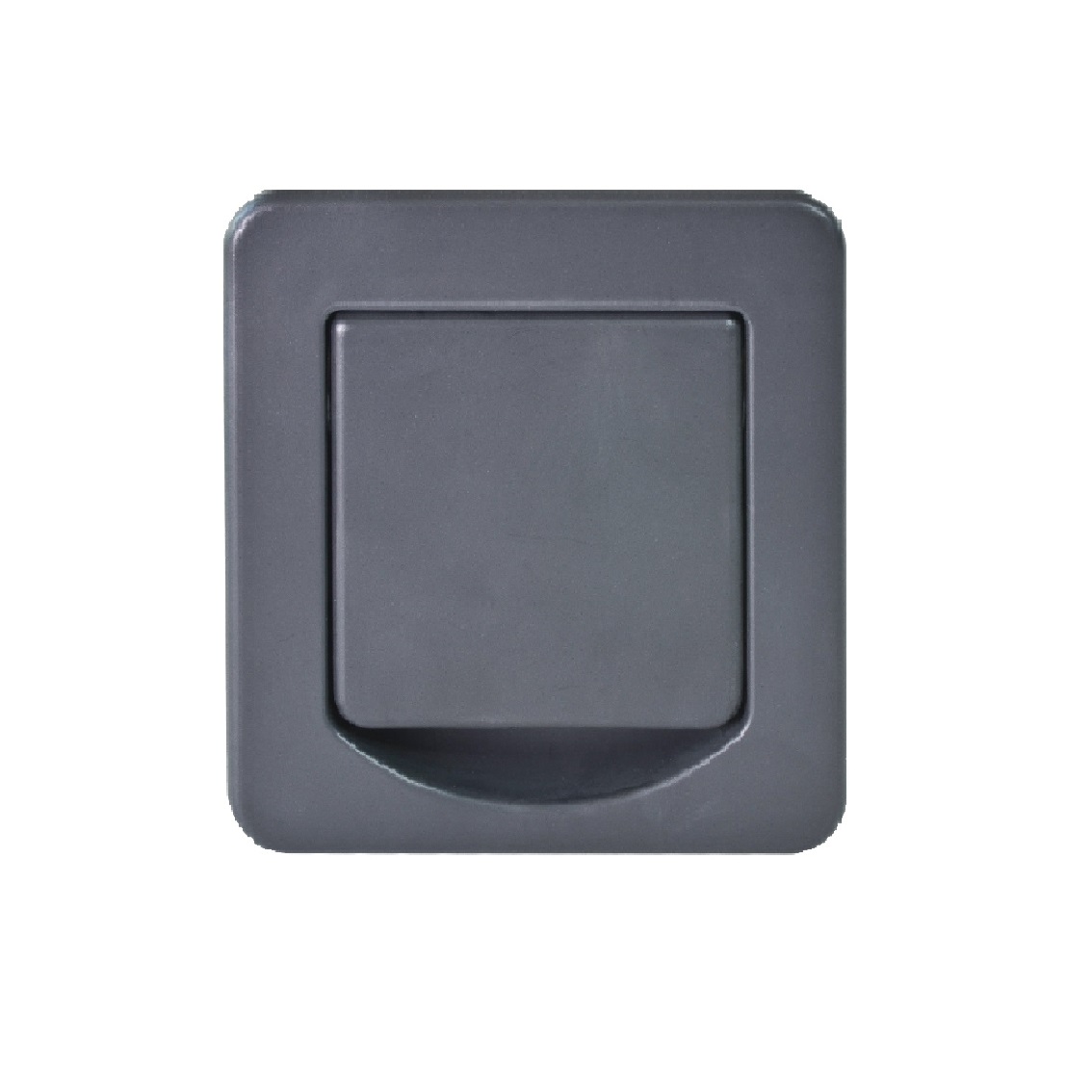

- Matte black surface blasting or white, small and neat appearance, it's good to enhance the overall design quality when combined with furniture
(1).jpg)
|
PRODUCT INFORMATION |
Model no. | 15-001 | 15-001S |
| Color | Customization | Customization | |
| Material of Construction | Plastic | Plastic | |
| Product Dimensions | Cut hole size: 92mmW x 100mmL | Cut hole size: 92mmW x 100mmL | |
| AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes - 510 Joules Rating |
| Voltage | 125 Vac | 125 Vac | |
| UL 1449 VPR | - | L-N 900V | |
| Duty cycle current | - | 3KA | |
| Current | 15A | 15A | |
| Frequency Compatibility | 50/60 Hz | 50/60 Hz | |
| Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
| Outlet numbers | 3 in Desk Rotating Power | 3 in Desk Rotating Power | |
| Plug Type | NEMA 5-15P | NEMA 5-15P | |
| Input Cord Length | Length between 3FT to 25 FT. | Length between 3FT to 25 FT. | |
| Input Phase | Single-Phase | Single-Phase | |
| USB CHARGING | Ports | 2 Extension USB Type A | - |
| Output Voltage | 5 Vdc | - | |
| Output Current | Optional - 2.4A or 3.1A | - | |
| TELCO PROTETCION | Wires Protected | Optional - One pass through only horizontal 8P8C RJ45 socket |
Optional - One pass through only horizontal 8P8C RJ45 socket |
| CERTIFICATIONS | Certifications | Tested to UL 962A, Fourth Edition, dated February 22, 2016. | Tested to ANSI/UL 962A, 4th Edition, Date February 22, 2016. |
| CSA C22.2 No. 308-14, First Edition RoHS Compliant | ANSI/UL 1449, 4th Edition, dated August 20, 2014, Revision Date March 26, 2015. |
||
| - | CSA C22.2 No. 308-14, 1st Edition, dated December 2014. | ||
| - | CSA C22.2 No. 8-13, 5th Edition, dated November 2013. | ||
| - | CSA Electrical Certification Notice 516 / Technical Information Letter I-11B |
||
| - | Surge/Transient Voltage Surge Suppressors (dated May 13, 1986), Revision dated September 2, 1986. |
||
| RoHS Compliant | RoHS Compliant |
