15-004

Desktop Pull-out Grommet Power - Square
  • Easy pull out the power strip for using.
  • 4 Outlets on each receptacle strip With Surge protection
  • 2 USB charger -Optional



Safety:

  • With heavy duty cord, avoid the electric wire go off due to wire twisted.
  • With Surge protection, enhance Safety identification level, it is more safer when its working.

Convenient:

  • Hidden style power strip, free and easy to replace the relevant type of hidden power of office furniture.
  • Pull-out power strip and lying on the desktop simply, no clutter.
  • Adjustable angle of power strip, capable to adjust the angle of power strip by following the furniture design, it can save more space and looks more cleaner.
  • No necessary for USB adapter anymore, you can use other electronic and mobile device easily while charging. - optional

Appearance:

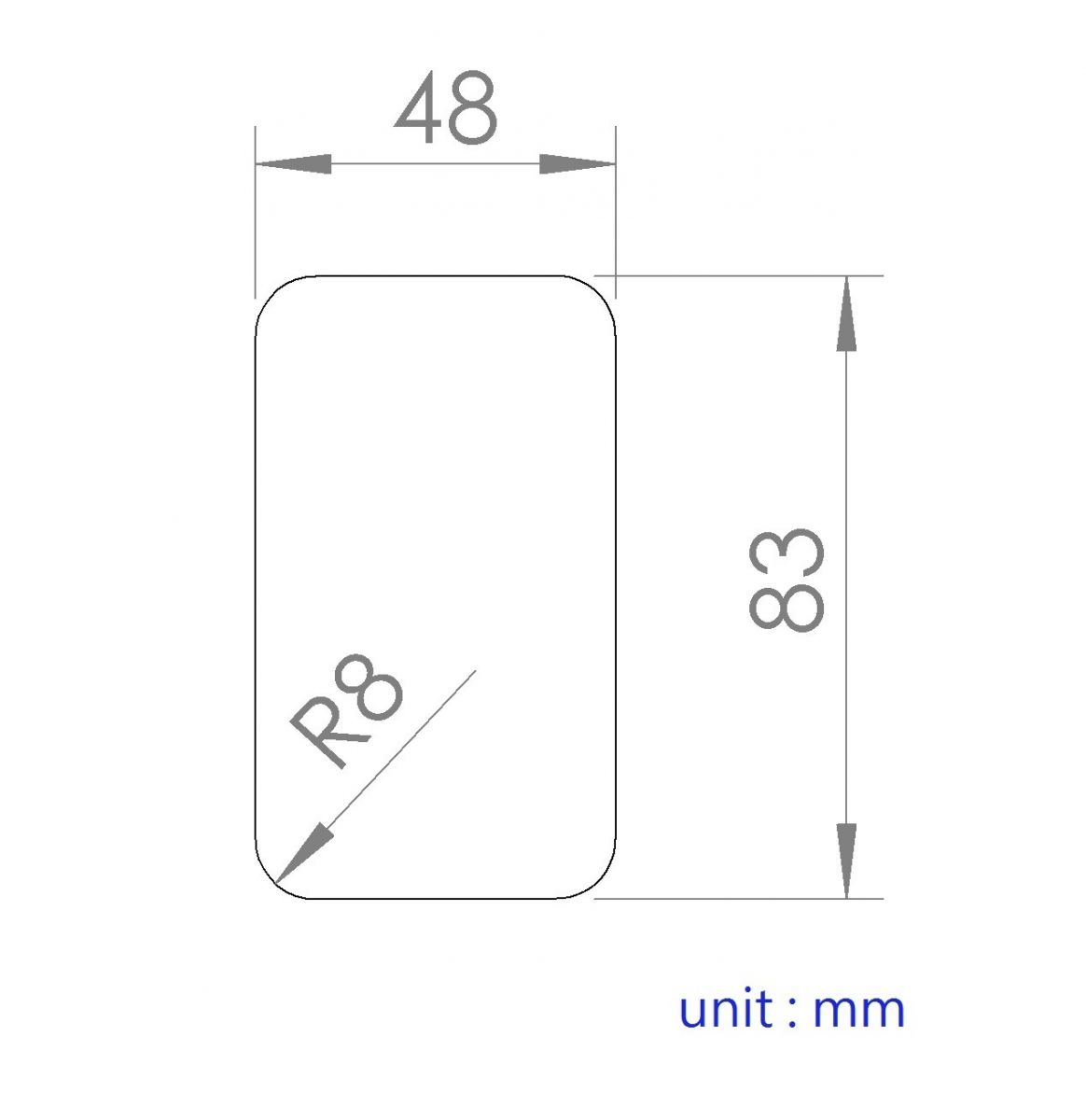

In desk power, square shape design, please see below as the hole size for 15-004





 PRODUCT  INFORMATION

 Model no.   15-004
 Color  Customization
 Material of Construction  Plastic
 AC POWER /
 SURGE PROTECTION
 Surge Protection  Yes - 2100 Joules Rating
 Voltage  125 Vac
 UL 1449 VPR  L-N 400V, L-G 500V, N-G 500V
 Duty cycle current  -
 Current  15A
 Frequency Compatibility  50/60 Hz
 Output Receptacles  NEMA 5-15R
 Outlet numbers  4
 Plug Type  NEMA 5-15P
 Input Cord Length  Length between 3FT to 25 FT.
 Input Phase  Single-Phase
 USB CHARGING  Ports  2 Extension USB Type A
 Output Voltage  5 Vdc
 Output Current  2.4 A
 TELCO PROTECTION  Wires Protected  One pass through only 8P8C Phone/Fax socket
 CERTIFICATIONS  Certifications  Tested to UL 962A, Fourth Edition, dated February 22, 2016,
Certification Requirement Decision, Date 2013-06-24
 UL 1449, Fourth Edition, latest revision dated March 17, 2016
 CSA C22.2 No. 308-14, First Edition
 C22.2 No. 8-13, Fifth Edition
 C22.2 No.42-10, Seventh Edition, latest revision dated November, 2010
 ECN 516/I-11B, dated September 2, 1986
 RoHS Compliant
