577people have viewed this product

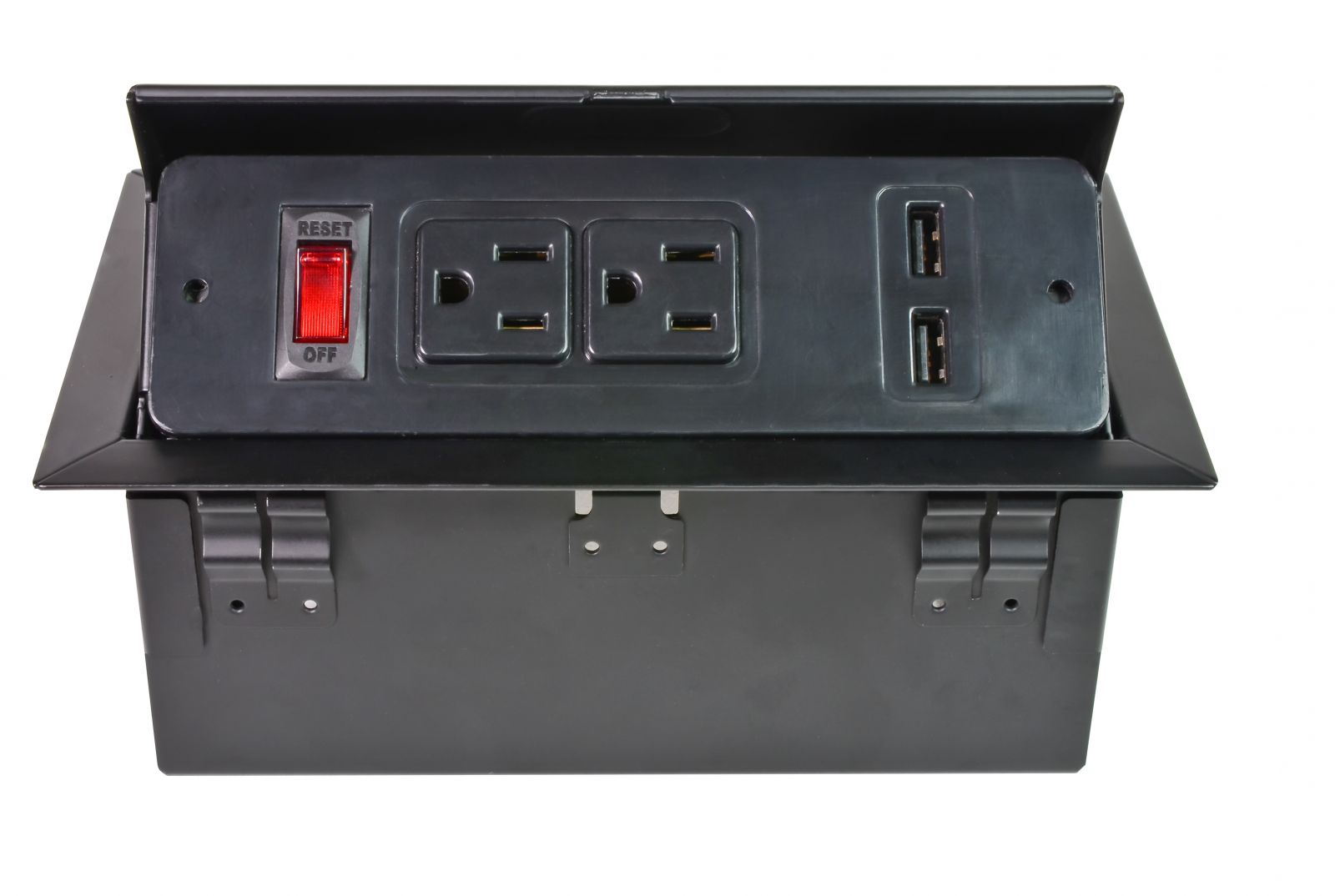

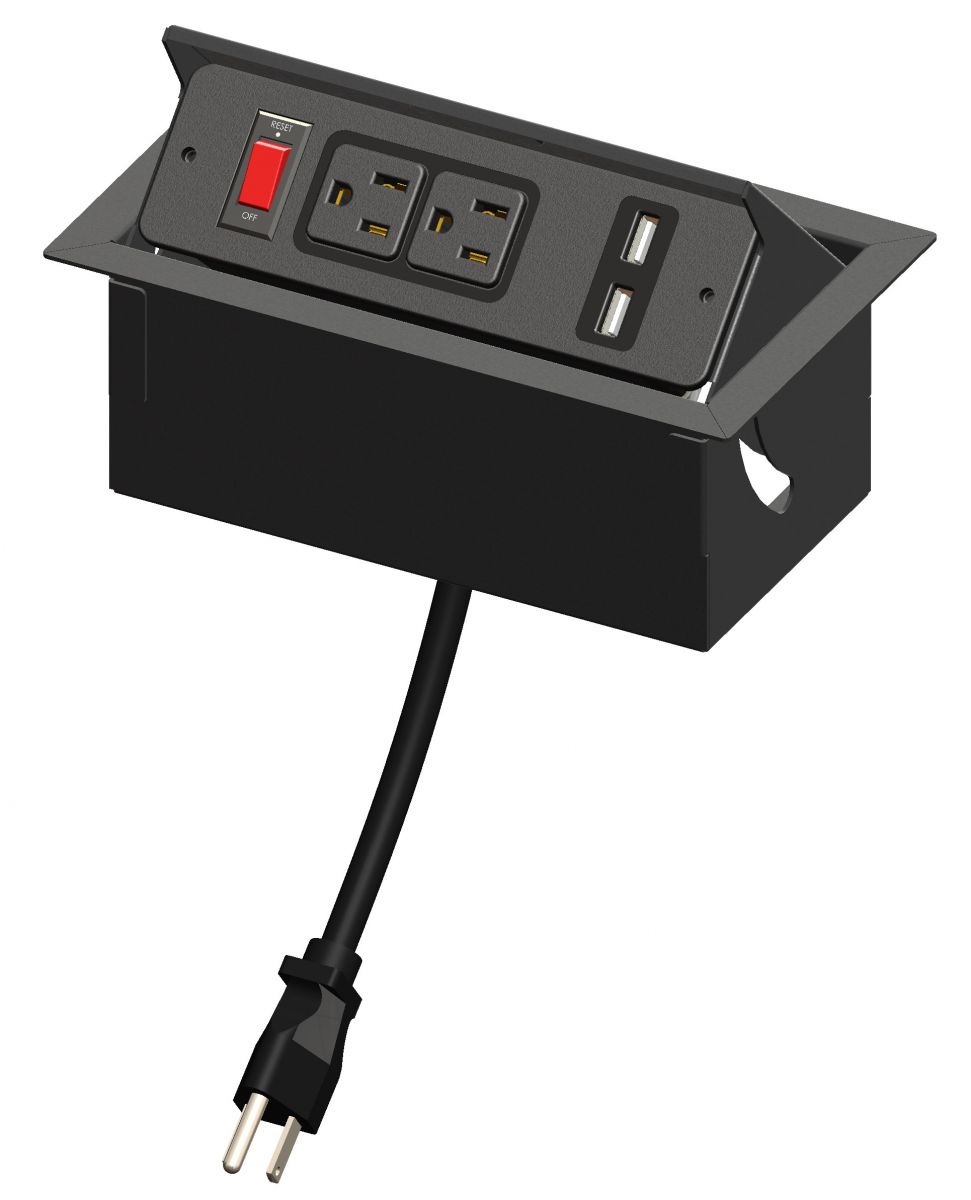

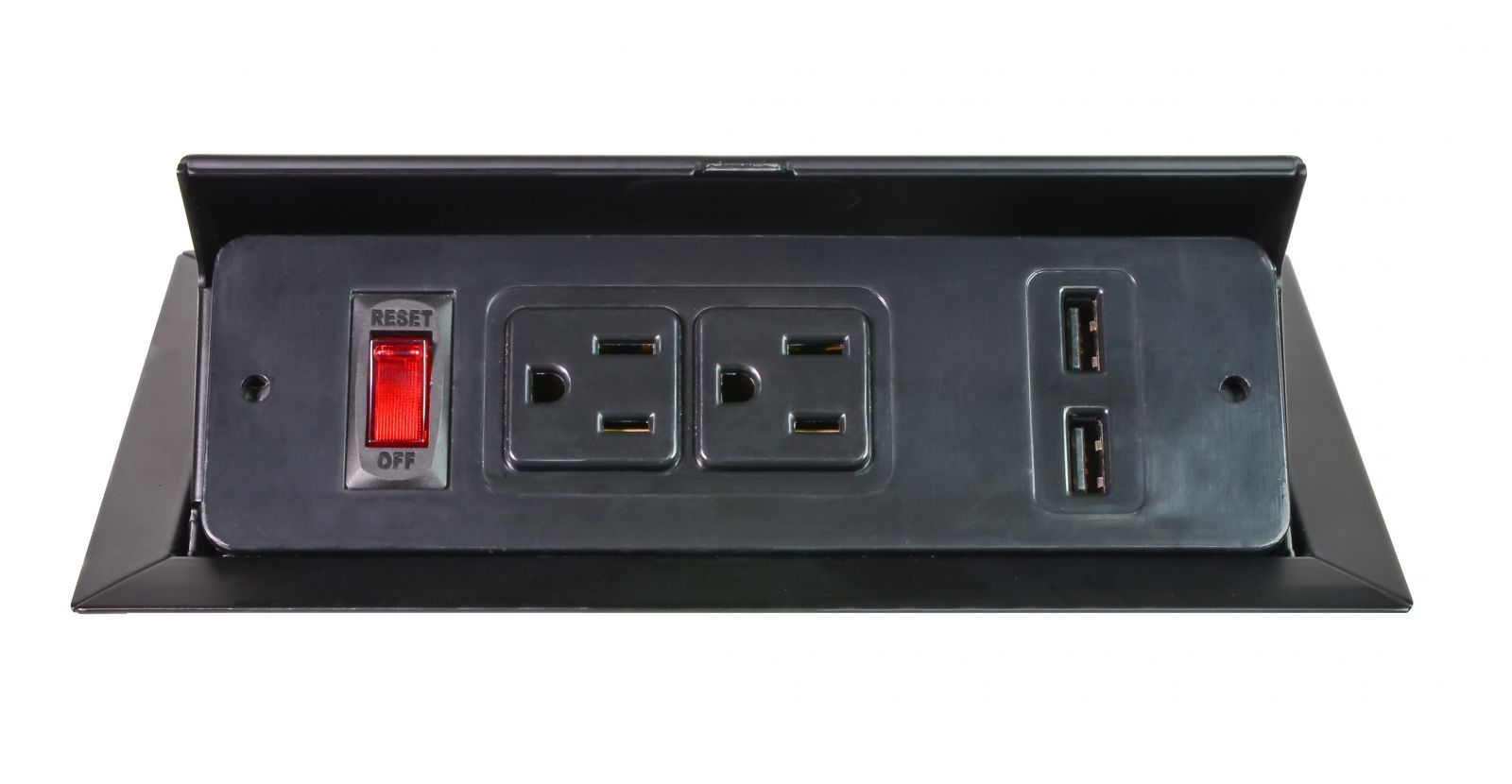

In Desk + Metal Box + Master Switch + USB 15-011
2 Outlet Mountable Power Strip- Direct Plug-in for easy using with 125V working voltage
- 3 Outlet with 2 USB charging port
- With Surge protection - Optional

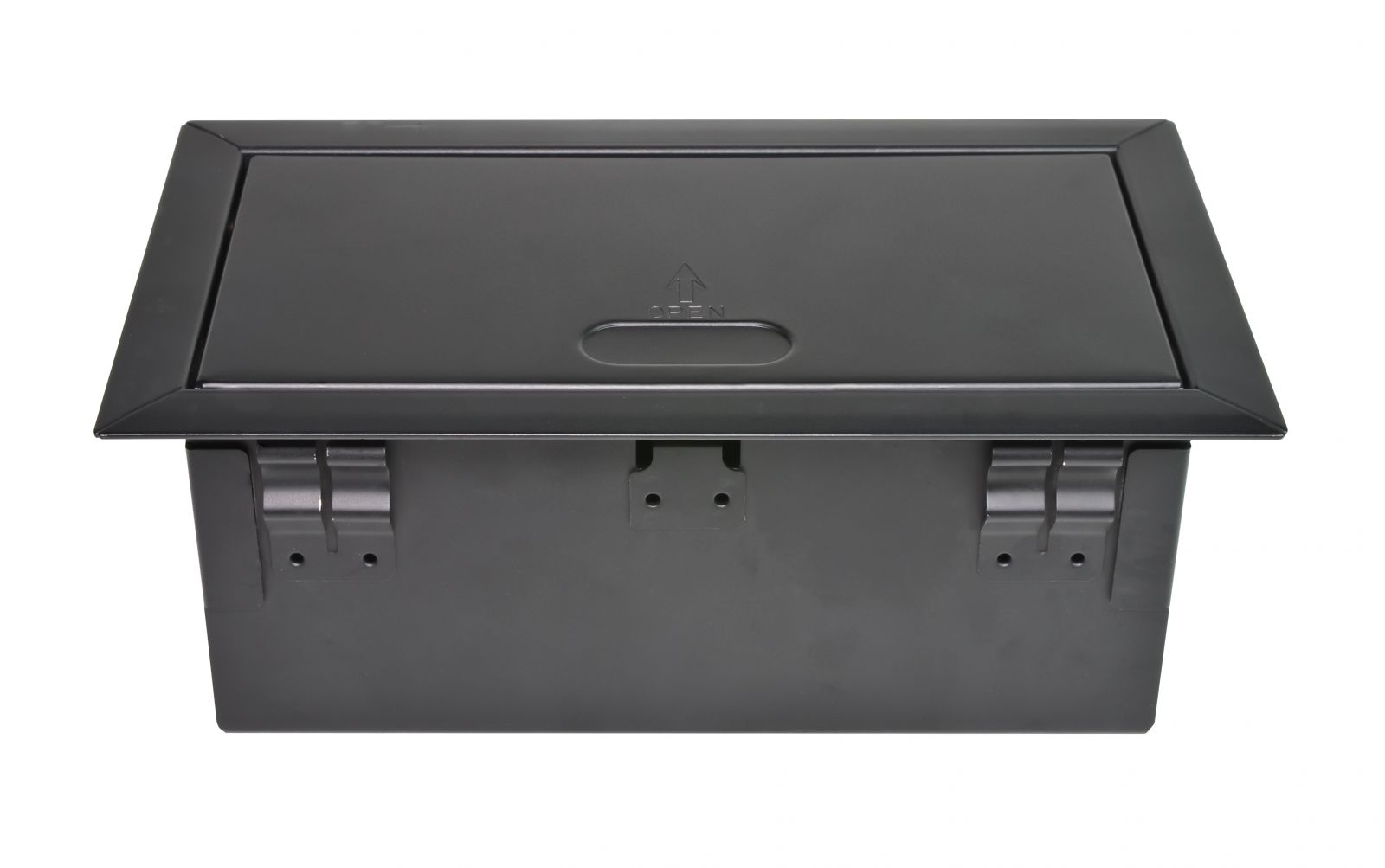

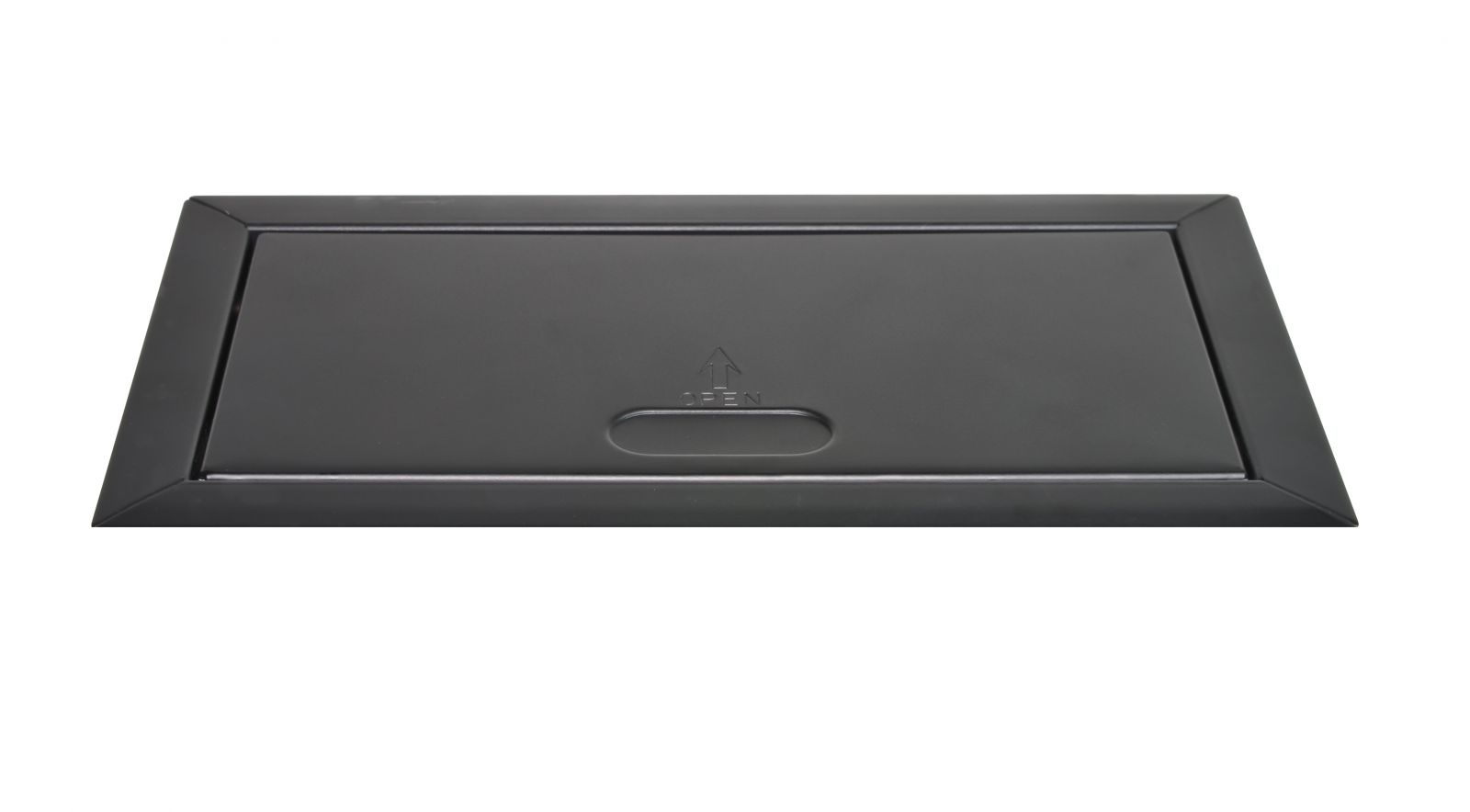

- Installation Box - Optional
Safety:
- With heavy duty cord, avoid the electric wire go off due to wire twisted.
- With Surge protection, enhance Safety identification level, it is more safer when its working. - Optional
- With master On/off switch indicator light and built-in circuit breaker, enhance Safety identification level, easily aware of product working situation.
Convenient:
- 2 easy ways to use,
1. Built in the table or
2. with the metal installation box, by hidden type, lead desk more clean and more utility after close the cover when finished using. - Optional - No too much wire length limitation with the electric device to plug-in.
- USB charger available, integrate with outlet, more easier to sort the using devices.
- No necessary for USB adapter anymore, you can use other electronic and mobile device easily while charging.
Appearance:
- Matte black surface blasting, small and neat appearance, it's good to enhance the overall design quality when combined with furniture.

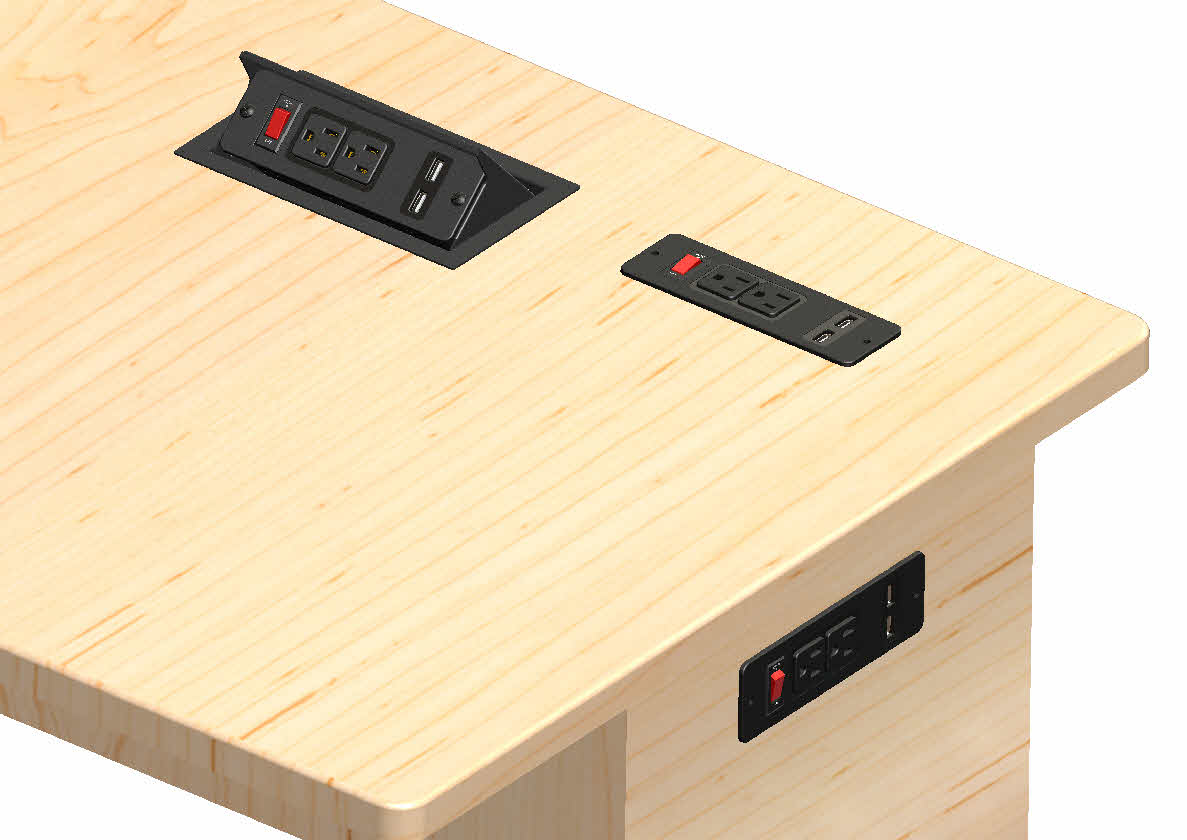

- 2 easy and good choices for using

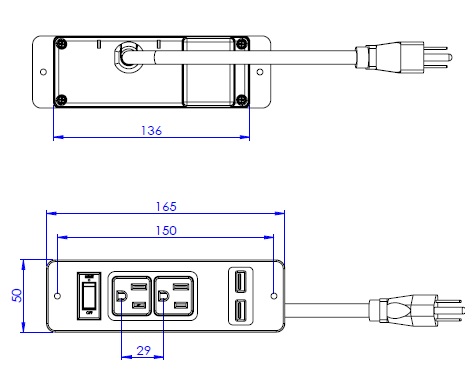

In desk mounting - Cut hole size: 50mmW x 136mmL
Mounted with the metal installation box - Cut hole size: 99mmW x 182mmL

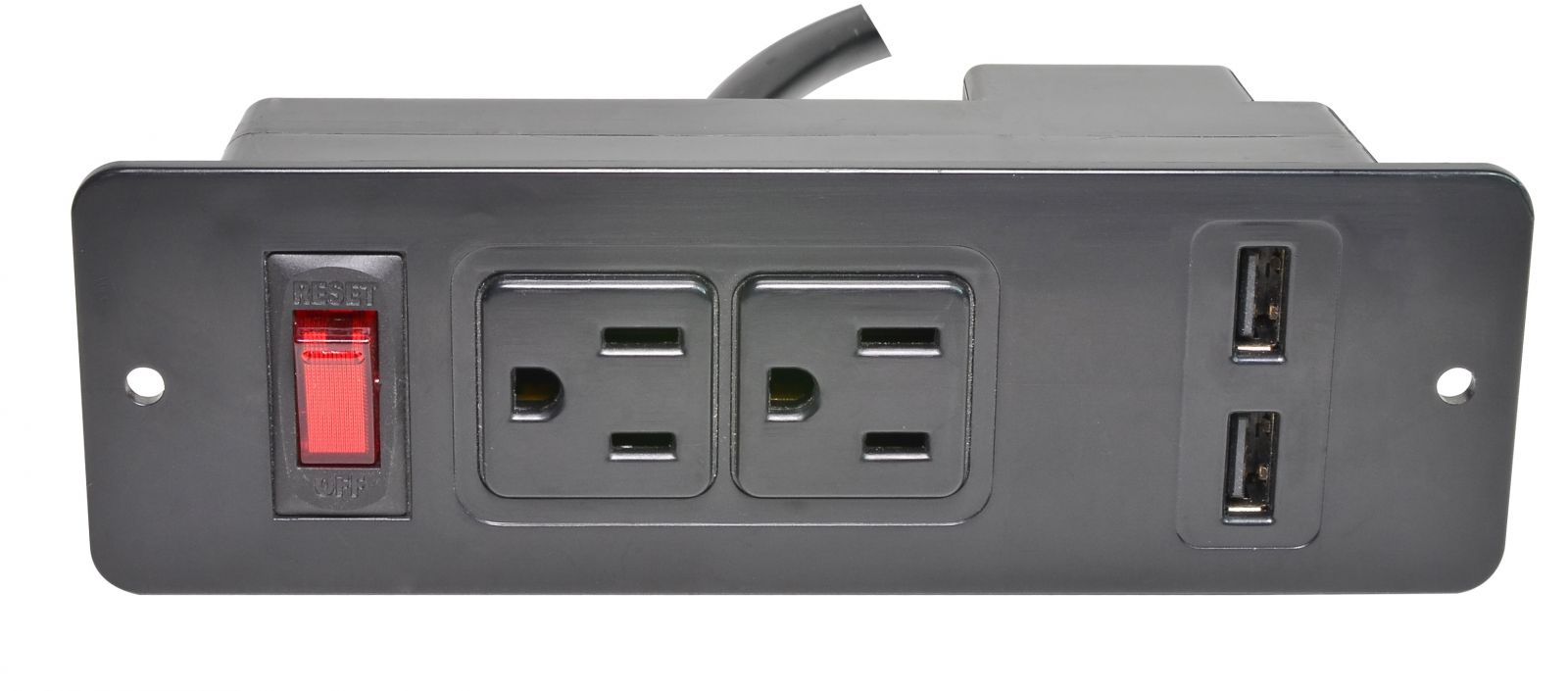

A) Direct mounting - Cut hole size: 50mmW x 136mmL
B) Mounted with the metal installation box - Cut hole size: 99mmW x 182mmL
|
PRODUCT INFORMATION |
Model no. | 15-011U, 15-011, 16R-017U | 15-011US, 15-011S, 16R-017US |
| Color | Customization | Customization | |
| Material of Construction | Plastic | Plastic | |
| Product Dimensions | In desk mounting - Cuthole size: 50mm(W) x 136mm(L) | In desk mounting - Cuthole size: 50mm(W) x 136mm(L) | |
| Mounted with the metal installation box - Cut hole size: 99mm(W) x 182mm(L) | Mounted with the metal installation box - Cut hole size: 99mm(W) x 182mm(L) | ||
| AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes - 510 Joules Rating |
| Voltage | 125 Vac | 125 Vac | |
| UL 1449 VPR | - | L-N 1000V | |
| Duty cycle current | - | 3KA | |
| Current | 15A | 15A | |
| Frequency Compatibility | 50/60 Hz | 50/60 Hz | |
| Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
| Outlet numbers | 2 | 2 | |
| Plug Type | NEMA 5-15P | NEMA 5-15P | |
| Input Cord Length | Length between 3FT to 25 FT. | Length between 3FT to 25 FT. | |
| Input Phase | Single-Phase | Single-Phase | |
| USB CHARGING | Ports | 2 Extension USB Type A ( No USB charger with 15-011 ) | 2 Extension USB Type A ( No USB charger with 15-011S ) |
| Output Voltage | 5 Vdc | 5Vdc | |
| Output Current | 15-011U = 2.1A | 15-011US = 2.1A | |
| 16R-017U = 2.4A | 16R-017US = 2.4A | ||
| CERTIFICATIONS | Certifications | Tested to UL 962A, Fourth Edition, dated February 22, 2016. | Tested to ANSI/UL 962A, 4th Edition, dated February 22, 2016. |
| CSA C22.2 No. 308_14, First Edition | ANSI/UL 1449, 4th Edition, dated August 20, 2014, Revision Date March 17, 2016. | ||
| - | CSA C22.2 No. 308-14, 1st Edition, dated December 2014. | ||
| - | CSA C22.2 No. 8-13, 5th Edition, dated November 2013. | ||
| - | CSA Electrical Certification Notice 516 / Technical Information Letter I-11B | ||
| - | Surge/Transient Voltage Surge Suppressors ( May 13,1986), Revision dated September 2, 1986. |
||
| RoHS Compliant | RoHS Compliant |
*Installation Box - optional
