Safety:
With heavy duty cord, avoid the electric wire go off due to wire twisted.
Convenient:
Appearance:
By Hiding type,still can keep the table, bench, closet or cabinet as original look.

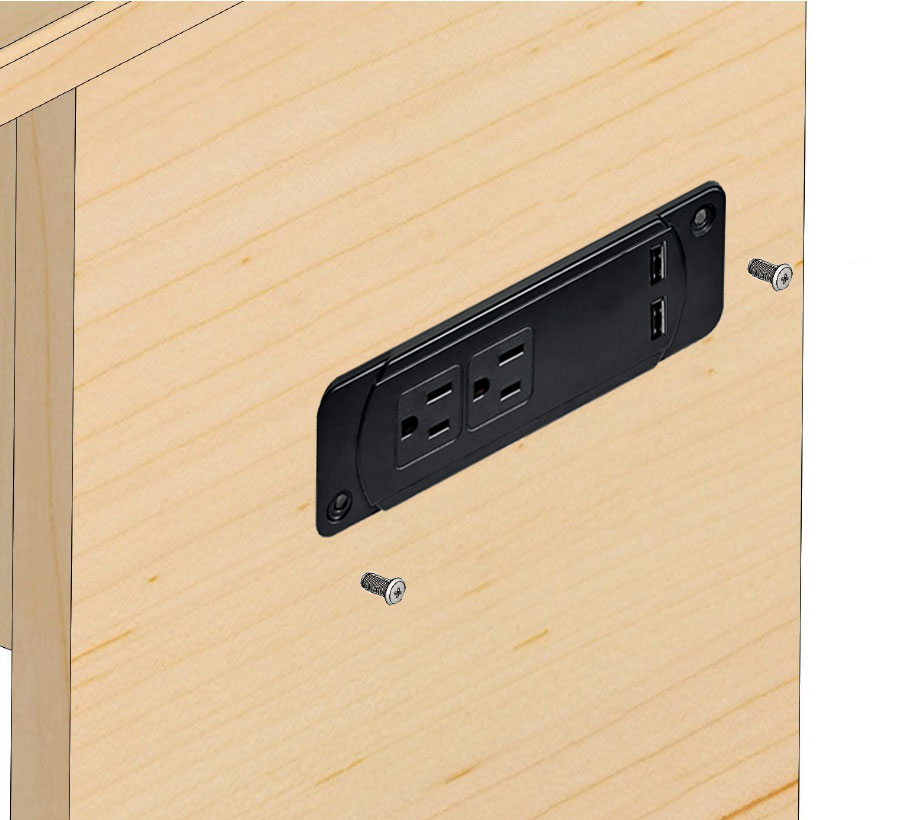

Mount with furniture by fasteners
PRODUCT INFORMATION |
Model no. | 15R-016U | 15R-016US |
Color | Customization | Customization | |
Material of Construction | Plastic | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes |
Voltage | 125 Vac | 125 Vac | |
UL 1449 VPR | - | 1000V | |
Duty cycle current | - | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 50/60 Hz | 50/60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 2 | 2 | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | Length between 3FT to 25 FT. | Length between 3FT to 25 FT. | |
Input Phase | Single-Phase | Single-Phase | |
USB CHARGING | Ports | 2 Extension USB Type A ( No USB charger with 14-022 ) | 2 Extension USB Type A ( No USB charger with 14-022S ) |
Output Voltage | 5 Vdc | 5Vdc | |
Output Current | 3.1A | 3.1A | |
CERTIFICATIONS | Certifications | Tested to UL 962A, Fourth Edition, dated February 22, 2016. | Tested to ANSI/UL 962A, 4th Edition, dated September 29, 2014, Revision Date February 22, 2016. |
CSA C22.2 No. 308_14, First Edition | ANSI/UL 1449, 4th Edition, dated August 20, 2014, Revision Date March 17, 2016 | ||
- | CSA C22.2 No. 308-14, 1st Edition, dated December 2014. | ||
- | CSA C22.2 No. 8-13, 5th Edition, dated November 2013. | ||
- | CSA Electrical Certification Notice 516 / Technical Information Letter I-11B | ||
- | Surge/Transient Voltage Surge Suppressors (dated May 13, 1986), Revision dated September 2, 1986 |
||
RoHS Compliant | RoHS Compliant |
