Receptacle Strip Solution + RJ45/USB  16R-010U

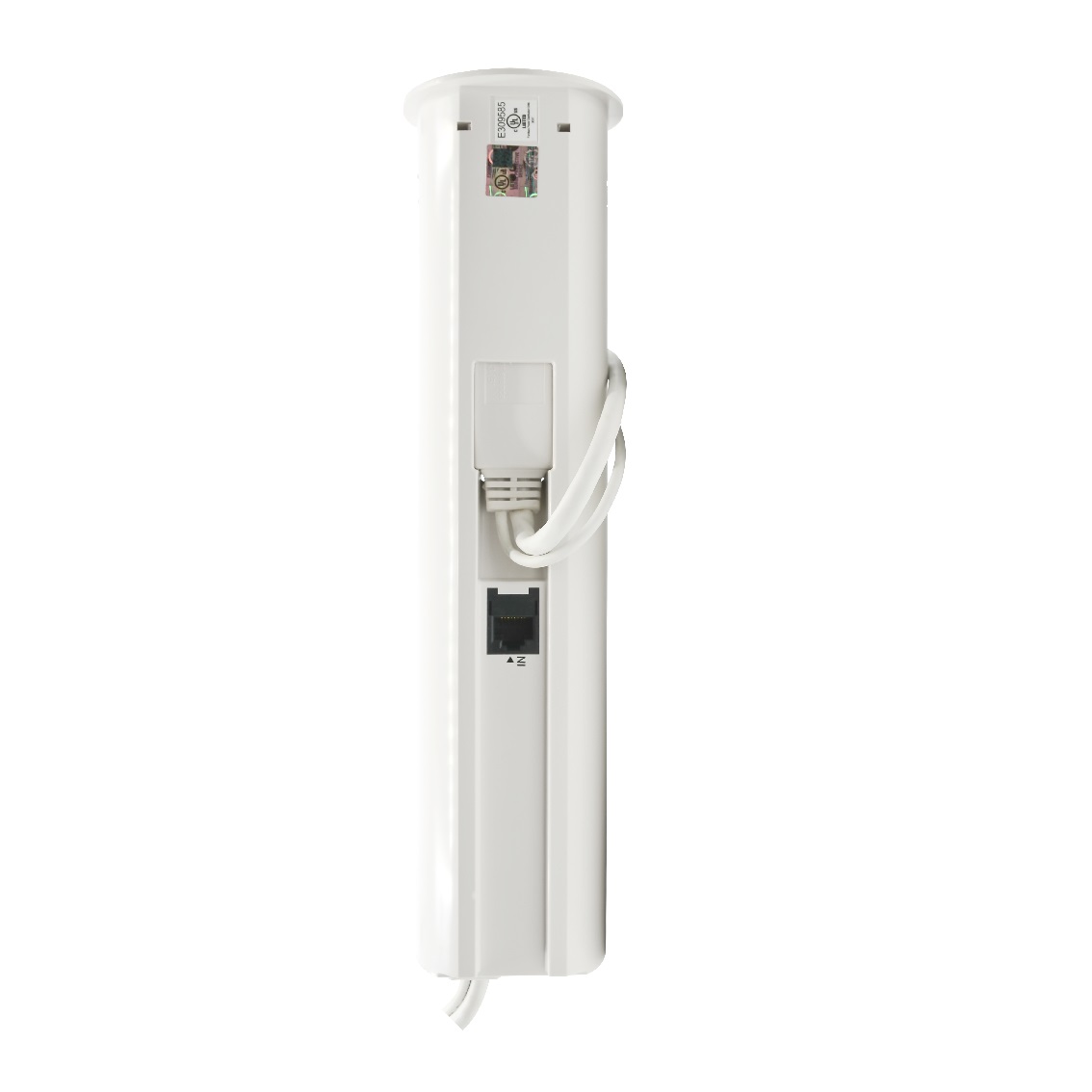

Desktop Pull-out Grommet Power Strip
  • Easy pull out the power strip for using.
  • 3 Outlets on each receptacle strip With Surge protection
  • USB charger and RJ45 socket (pass through) -Optional



Safety:

  • With heavy duty cord, avoid the electric wire go off due to wire twisted.
  • With Surge protection, enhance Safety identification level, it is more safer when its working.

Convenient:

  • Hidden style power strip, free and easy to replace the relevant type of hidden power of office furniture.
  • Long enough wire and heavy duty cord, no more concern of plug appliances issue.

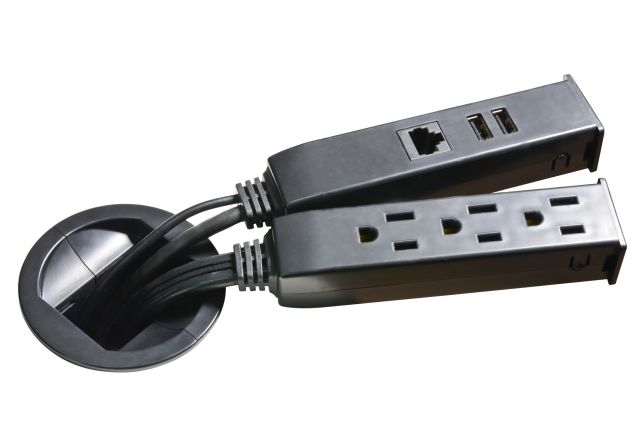

  • 3 outlets with 2 USB charger (optional) and 1 RJ45 Socket (optional), or 6 outlets (3 Outlets on each receptacle strip)
  • No necessary for USB adapter anymore, you can use other electronic and mobile device easily while charging. - optional

Appearance:

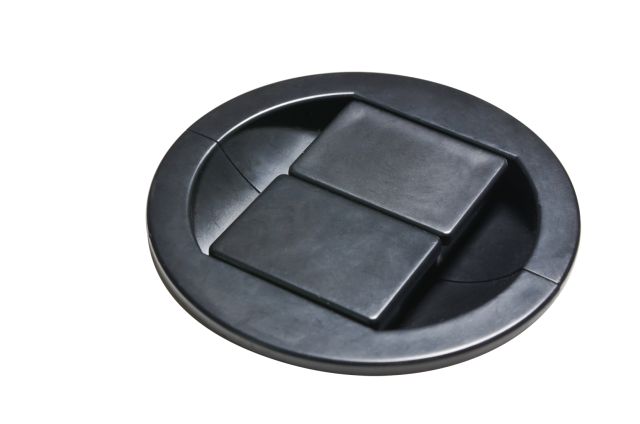

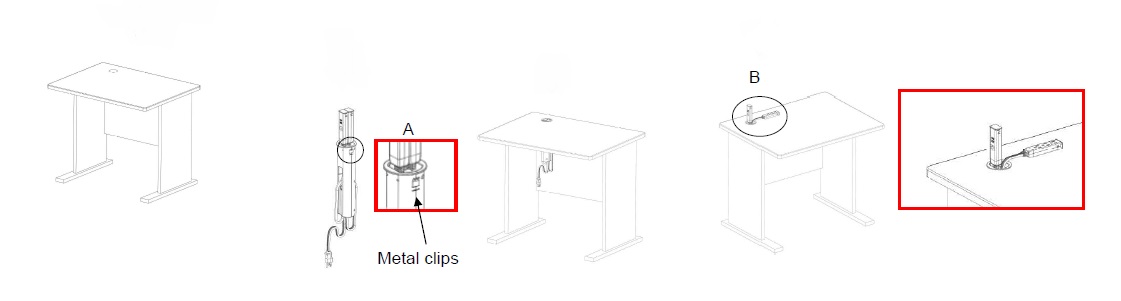

In desk power, Cut hole size: Ø60.0mm

 PRODUCT  INFORMATION

 Model no.   16R-010U, 16R-010UN  16R-010U-xMS, 16R-010UN-xMS  (x can be  3 to 5)
 Color  Customization  Customization
 Material of Construction  Plastic  Plastic
 Product Dimensions  Cut hole size: Ø 63.5mm  Cut hole size: Ø 63.5mm
 AC POWER /
 SURGE PROTECTION
 Surge Protection  -  Yes - 2100 Joules Rating
 Voltage  125 Vac  125 Vac
 UL 1449 VPR  -  L-N 500V, L-G 500V, N-G 500V
 Duty cycle current  -  3KA
 Current  15A  15A
 Frequency Compatibility  50/60 Hz  50/60 Hz
 Output Receptacles  NEMA 5-15R  NEMA 5-15R
 Outlet numbers  3 or 6  3 or 6
 Plug Type  NEMA 5-15P  NEMA 5-15P
 Input Cord Length  Length between 3FT to 15 FT.  Length between 3FT to 15 FT.
 Input Phase  Single-Phase  Single-Phase
 USB CHARGING  Ports  2 Extension USB Type A (No USB charger with 11-010N, 11-010)  2 Extension USB Type A   (No USB charger with11-010N-xMS, 11-010-xMS)
 Output Voltage  5 Vdc  5 Vdc
 Output Current  2.4 A  2.4 A
 TELCO PROTECTION  Wires Protected  One pass through only 8P8C Phone/Fax socket    One pass through only 8P8C Phone/Fax socket
 CERTIFICATIONS  Certifications  Tested to UL 962A, Fourth Edition, dated February 22, 2016.  Tested to UL 962A, Fourth Edition, dated February 22, 2016..
 CSA C22.2 No. 308_14, First Edition.  UL 1449, Fourth Edition, latest revision dated March 17, 2016.
 -  CSA C22.2 No. 308-14, First Edition; Cord Reels And Multi-Outlet Assemblies
 -  C22.2 No. 8-13, Electromagnetic Interference (EMI) Filters, Fifth Edition
 -  ECN 516/I-11B, Surge/Transient Voltage Suppressors, dated September 2, 1986
 RoHS Compliant  RoHS Compliant
