124people have viewed this product

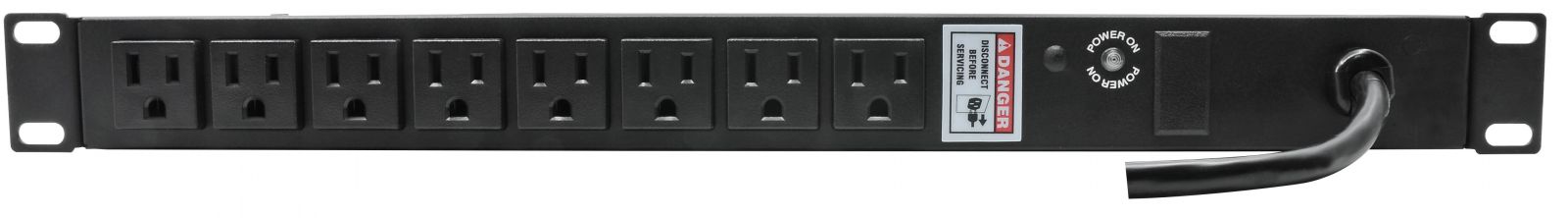

15/20R Vertical Aluminum Housing 17 Series
8 Outlets Vertical Units- NEMA5-15/20R Outlets
- Combo On/Off Switch Breaker - Optional
- Surge Protection - Optional
- Aluminum Housing
Safety:
- With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation. - Optional
- With Surge protection indicator light, and master On/off switch, enhance Safety identification level, easily aware of product working situation. Optional
- With heavy duty cord, avoid the electric wire go off due to wire twisted.
Convenient:
- Ideal for use of multiple convenience outlets for powering various of equipment.
- Just one click master switch to turn on/off to control whole power strip power.
- Long type power strip, can fix much power issues of electronic or machine which cannot be used due to electric cord range.
- The long wire of power strip solution can totally solve the short wire problem of using electronic device.
Appearance:
17 Series is simple, compact and easy design, not too much complicated appearance.
Textured aluminum shell，light weight, easy to move, durability greatly enhanced.
|
PRODUCT INFORMATION |
Model no. | 17 Series |
| Color | Customization | |
| Material of Construction | Aluminuml | |
| AC POWER / SURGE PROTECTION |
Surge Protection | Yes - 1650 Joules Rating (OPTIONAL) |
| Voltage | 125Vac | |
| UL 1449 VPR | L-N 500V, L-G 500V, N-G 500V (OPTIONAL) | |
| Duty cycle current | 3KA | |
| Current | 15A or 20A (as order requirement) | |
| Frequency Compatibility | 50/60 Hz | |
| Output Receptacles | NEMA 5-15R or NEMA 5-20R (as order requirement) | |
| Outlet numbers | 8 | |
| Plug Type | NEMA 5-15P or NEMA 5-20P (as order requirement) | |
| Input Cord Length | Length between 1.5 and4.5 meters. | |
| Input Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment - Safety - Part 1: General Requirements) |
| CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment - Safety - Part 1: General Requirements) | ||
| RoHS Compliant |
| Model No. | Current (A) |
Circuit Breaker | Surge Protection | Master Switch | Mounting Means | Output Receptacle |
| 17-701 | 12A | Y | - | OPTIONAL | OPTIONAL | NEMA 5-15R |
| 17-702 | 12A | Y | - | OPTIONAL | OPTIONAL | NEMA 5-15R |
| 17-703 | 12A | Y | Y | OPTIONAL | OPTIONAL | NEMA 5-15R |
| 17-704 | 12A | Y | Y | OPTIONAL | OPTIONAL | NEMA 5-15R |
| 17-705 | 16A | Y | - | OPTIONAL | OPTIONAL | NEMA 5-20R |
| 17-706 | 16A | Y | - | OPTIONAL | OPTIONAL | NEMA 5-20R |
| 17-707 | 16A | Y | Y | OPTIONAL | OPTIONAL | NEMA 5-20R |
| 17-708 | 16A | Y | Y | OPTIONAL | OPTIONAL | NEMA 5-20R |
* 1 Master On/off switch with built-in circuit breaker - Optional
