Modular Indesk/Clamp Solution 18-007

Multiple Furniture Solution
  • Direct Plug-in for easy using with 125V working voltage
  • Outlet numbers,  USB numbers, 1 Fax connector - Optional
  • Mountable Rack or Indesk Case - Optional



Safety:

  • With heavy duty cord, avoid the electric wire go off due to wire twisted.

Convenient:

  • 2 easy ways to use,

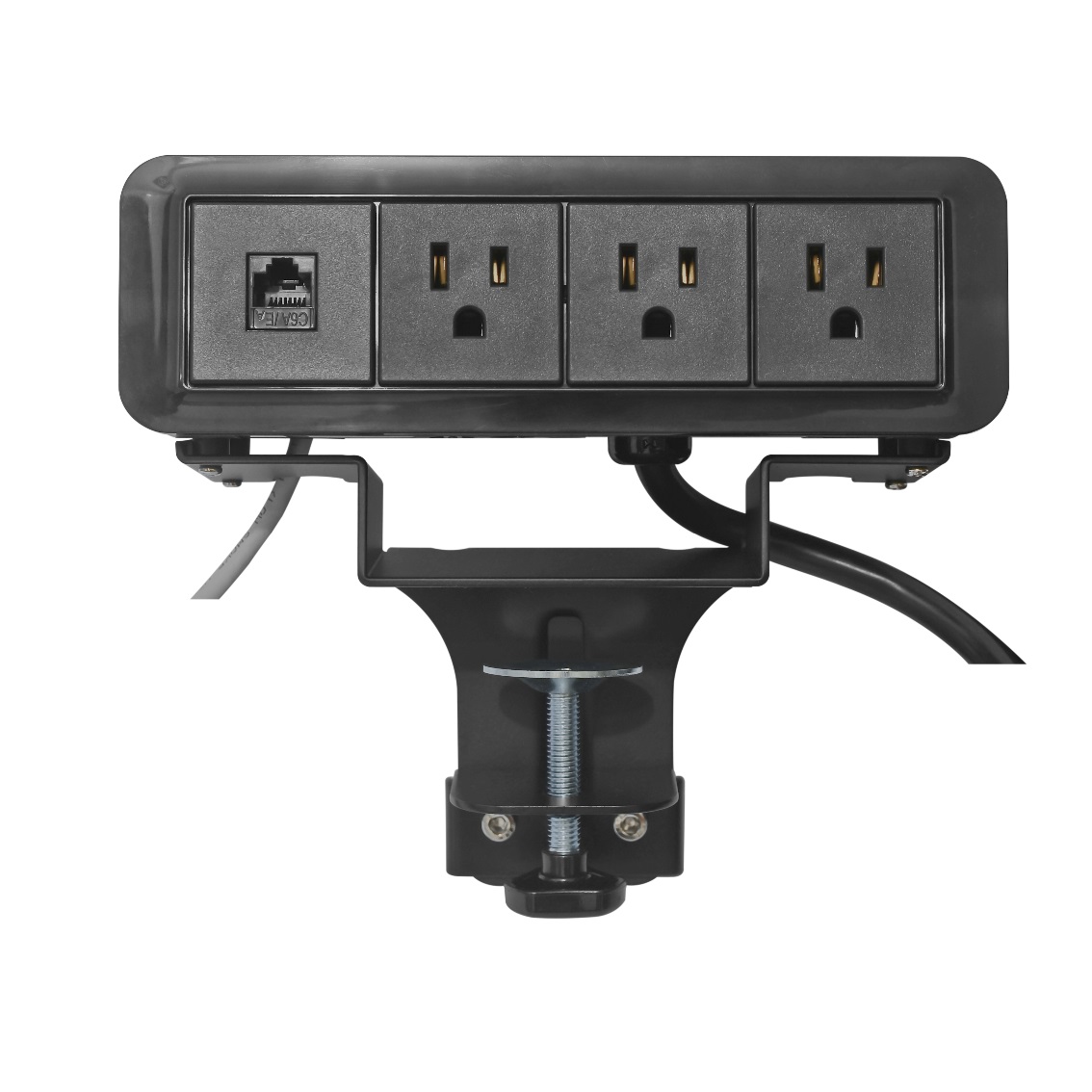

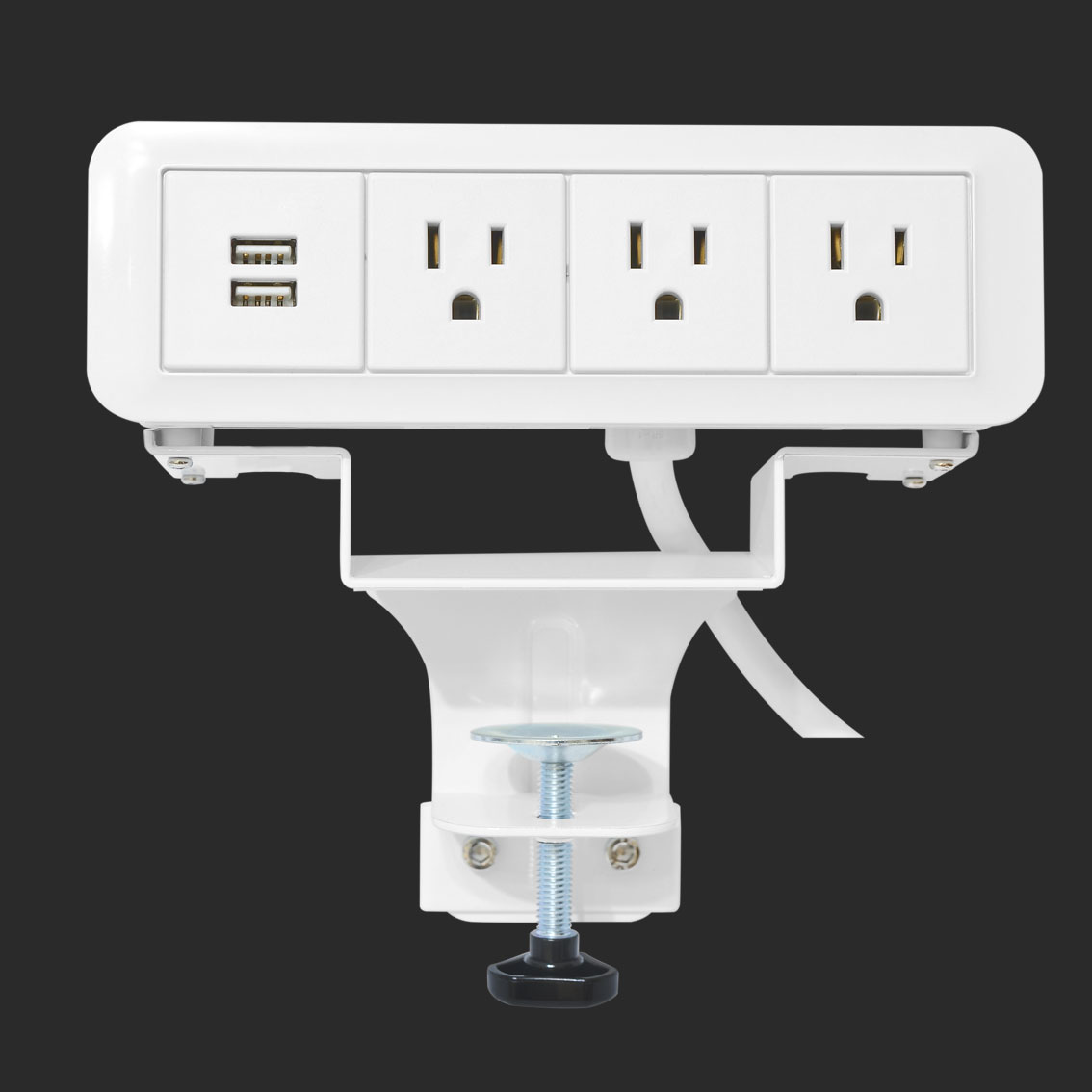

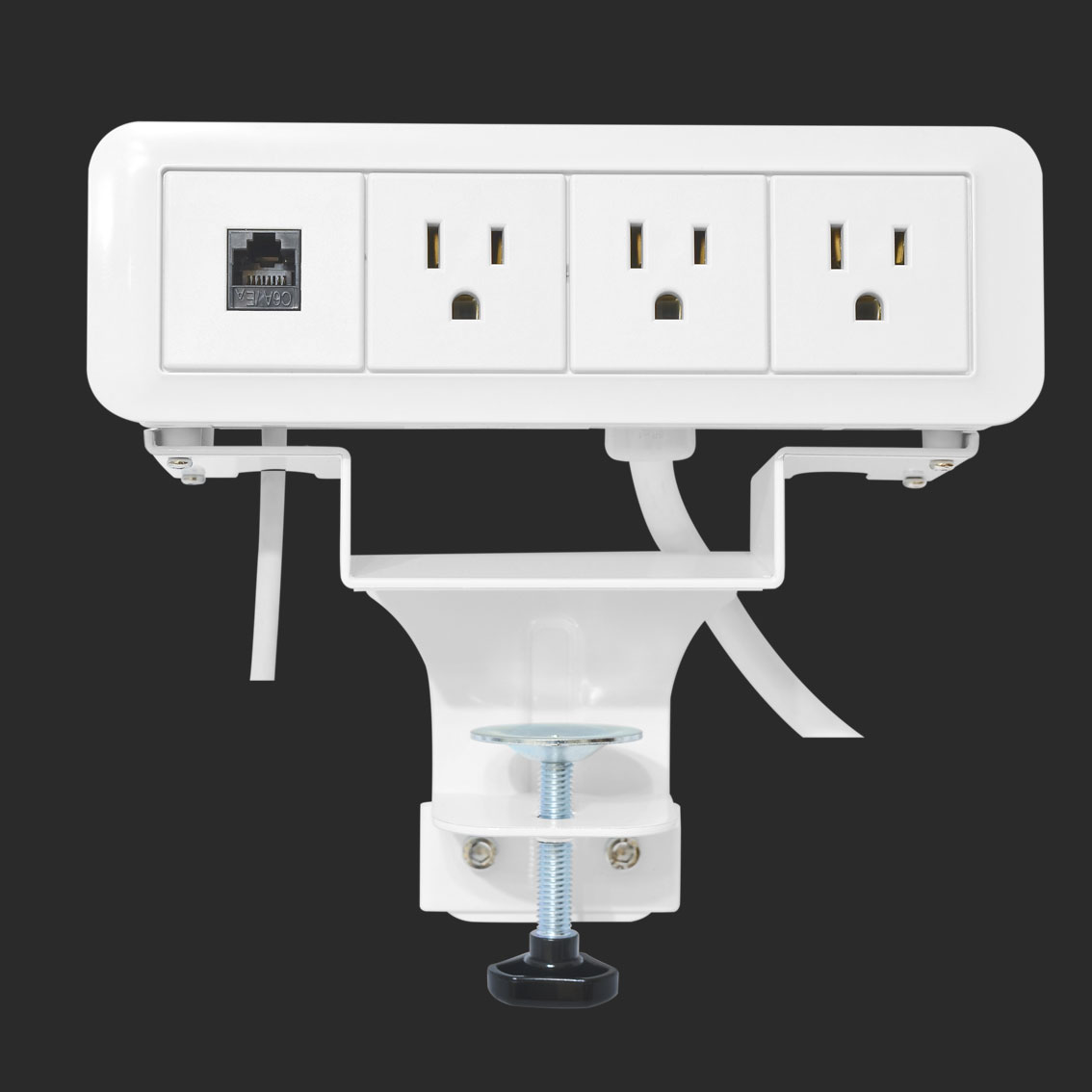

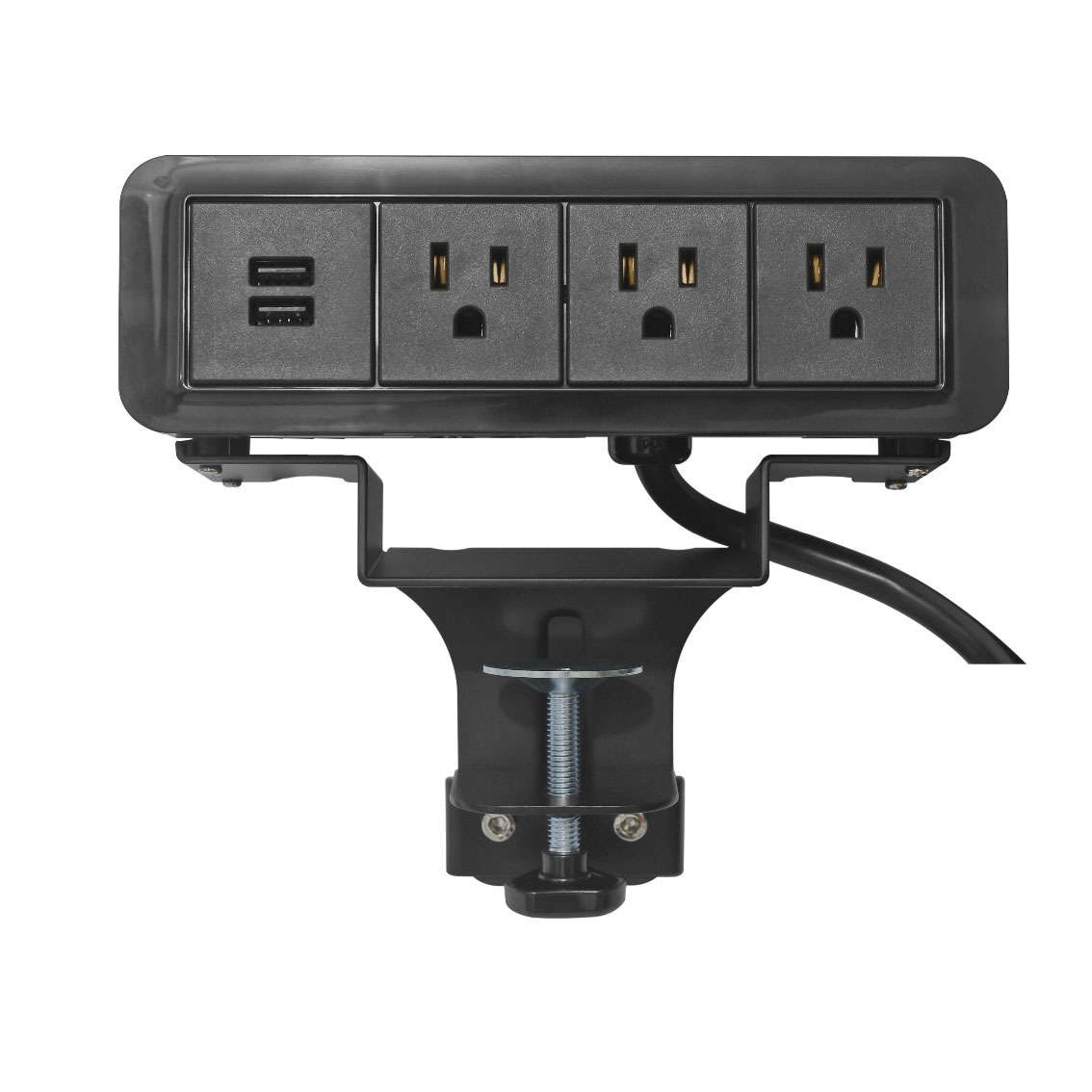

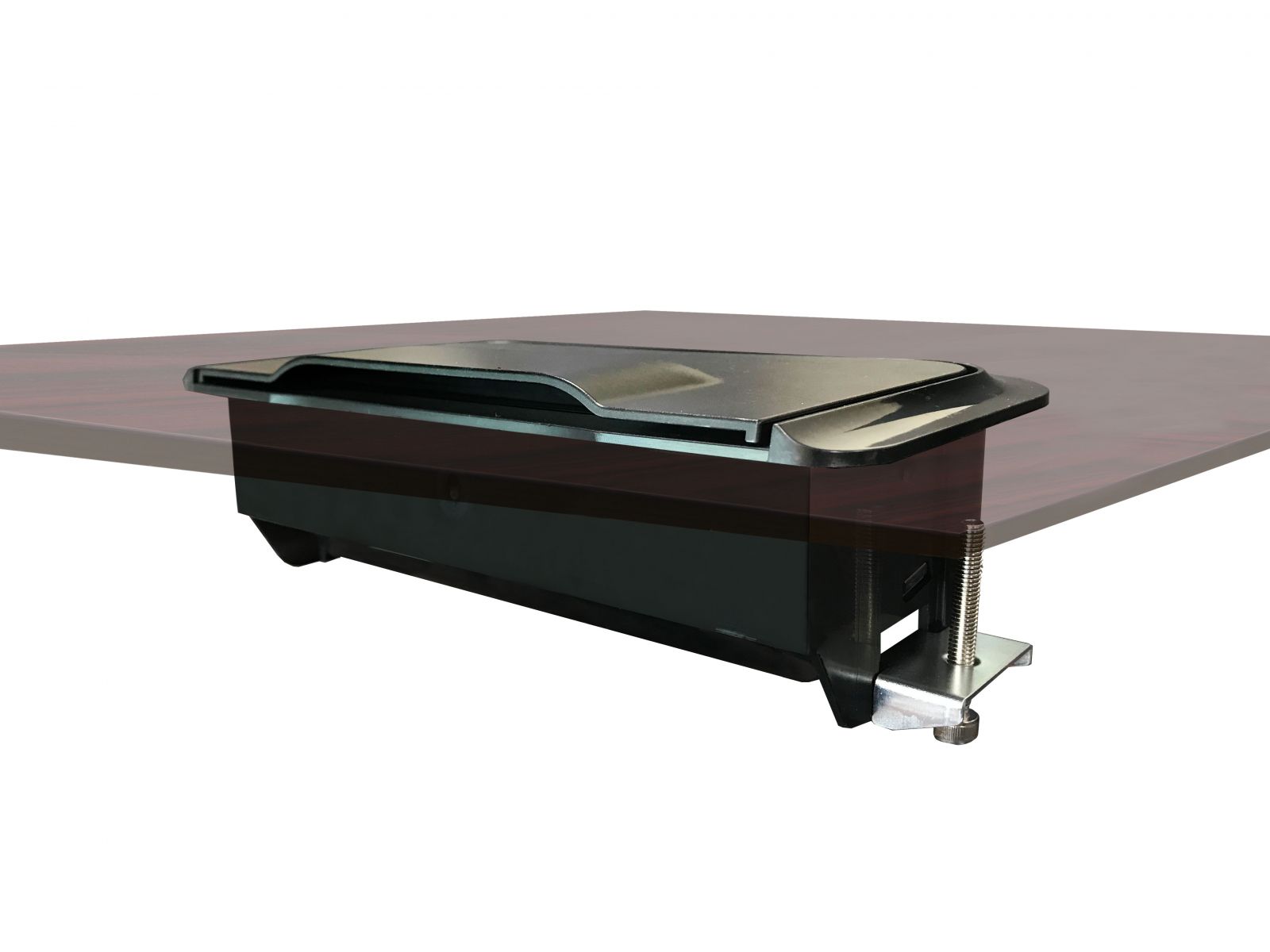

     1. Mount on the side of the table or
    2.

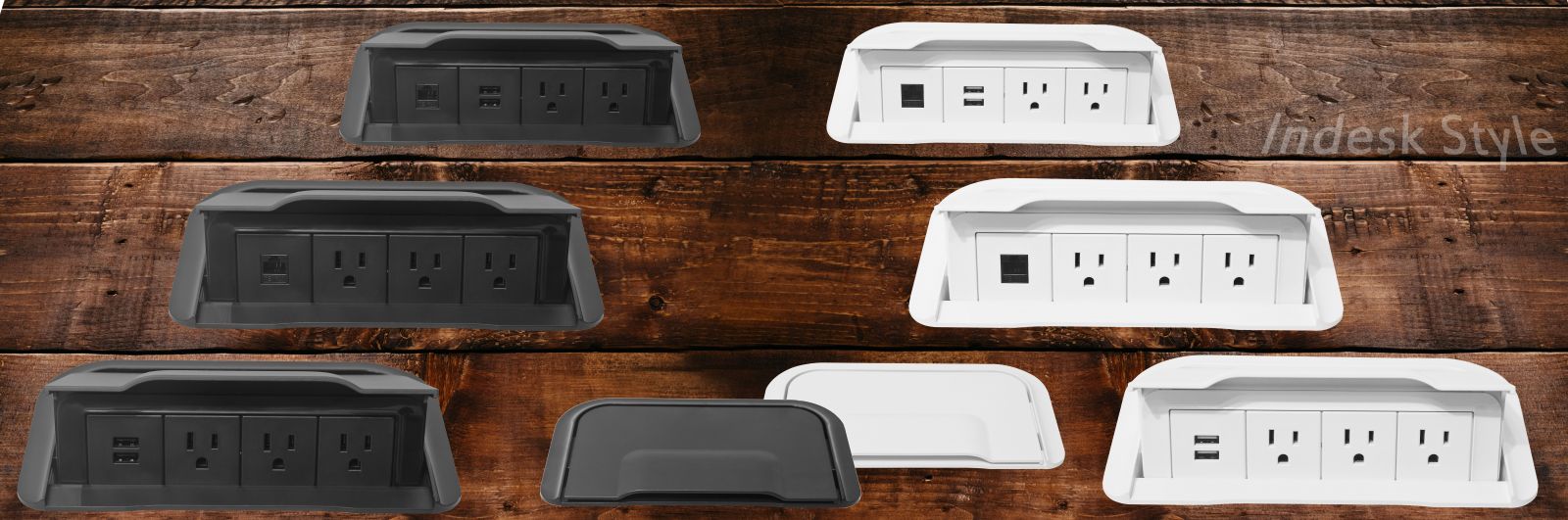

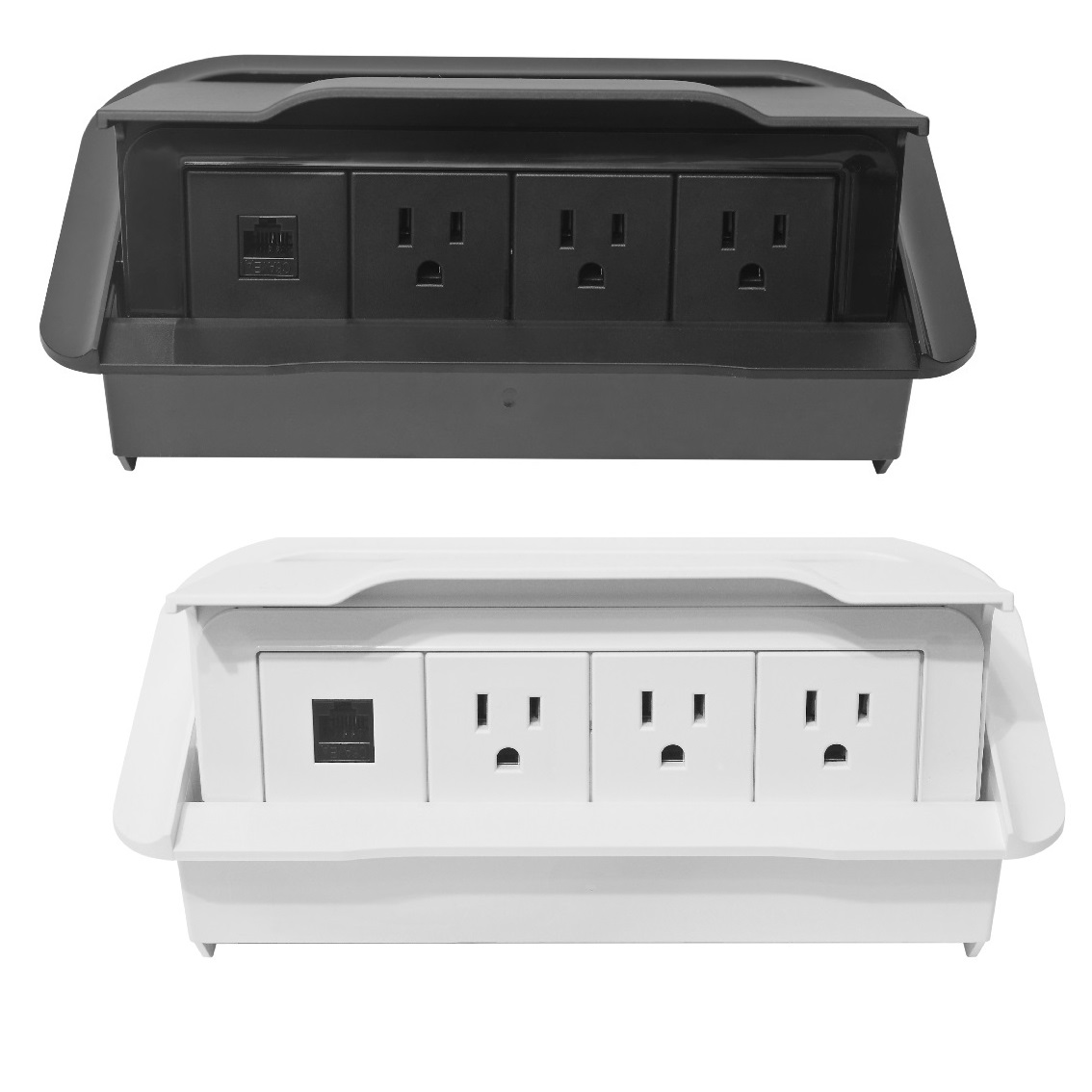

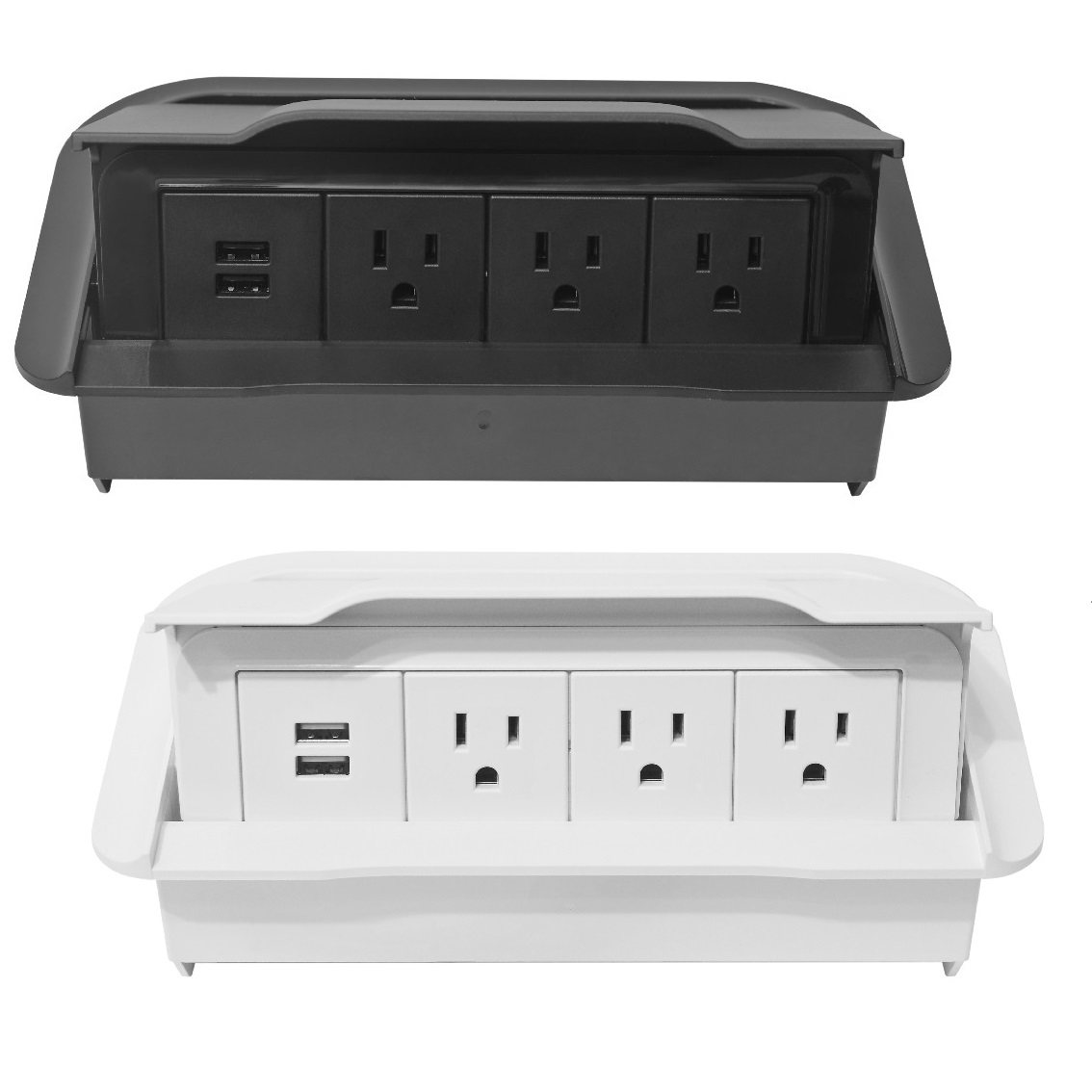

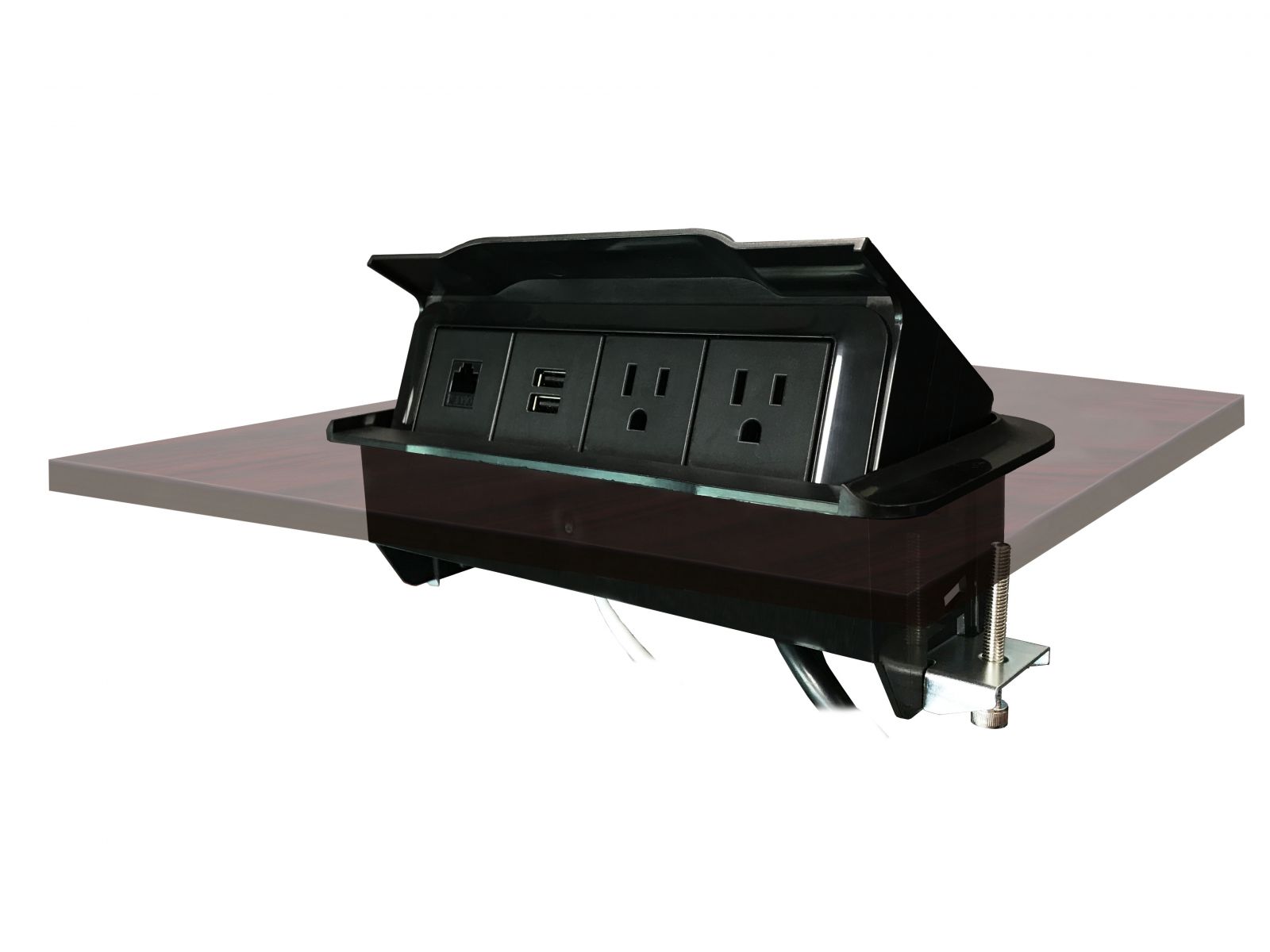

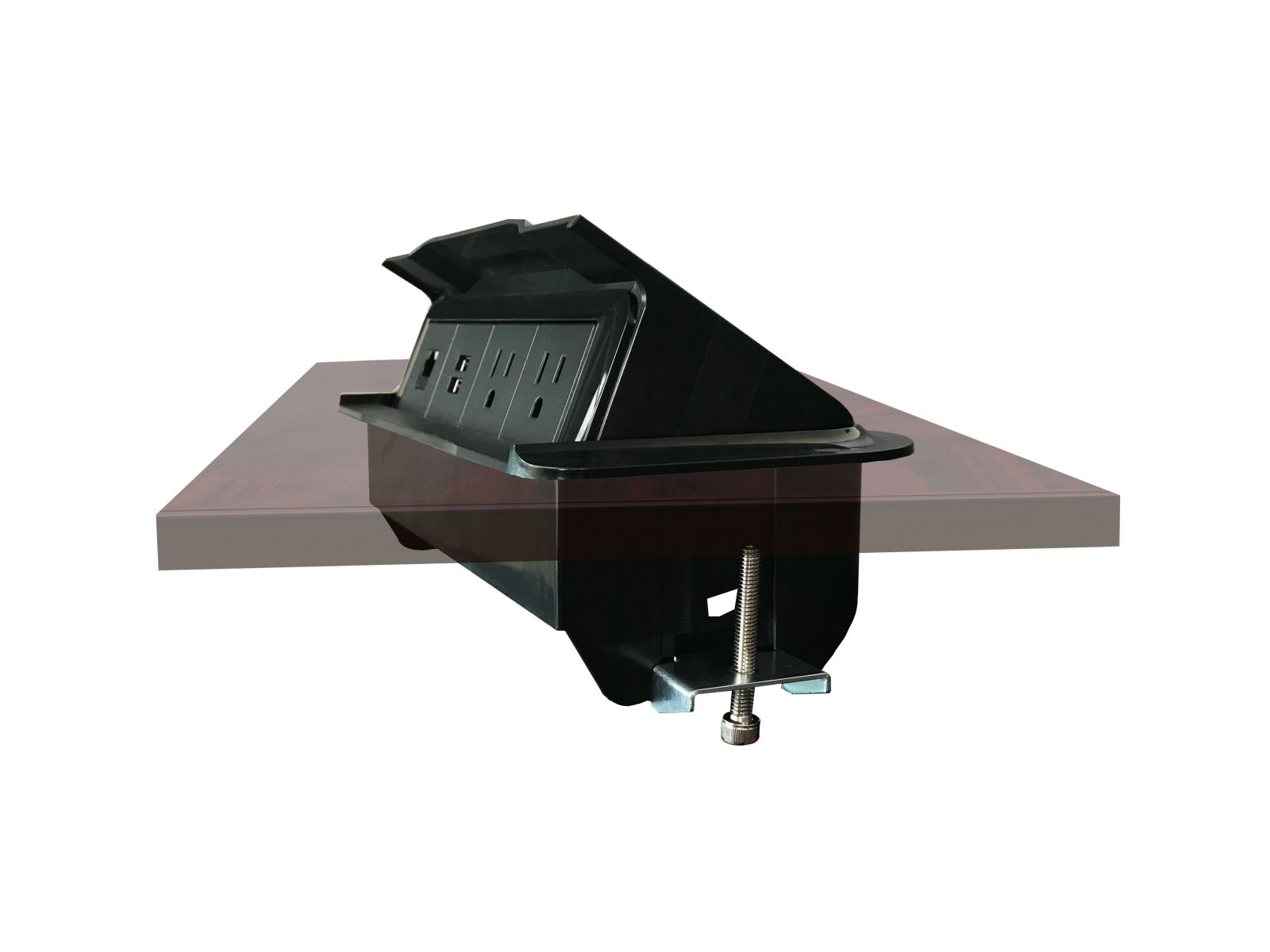

    Built in the table , make your table neat and tidy.
  • No too much wire length limitation with the electric device to plug-in.
  • USB charger available, integrate with outlet, more easier to sort the using devices.
  • No necessary for USB adapter anymore, you can use other electronic and mobile device easily while charging.
  • RJ45 connection  available.

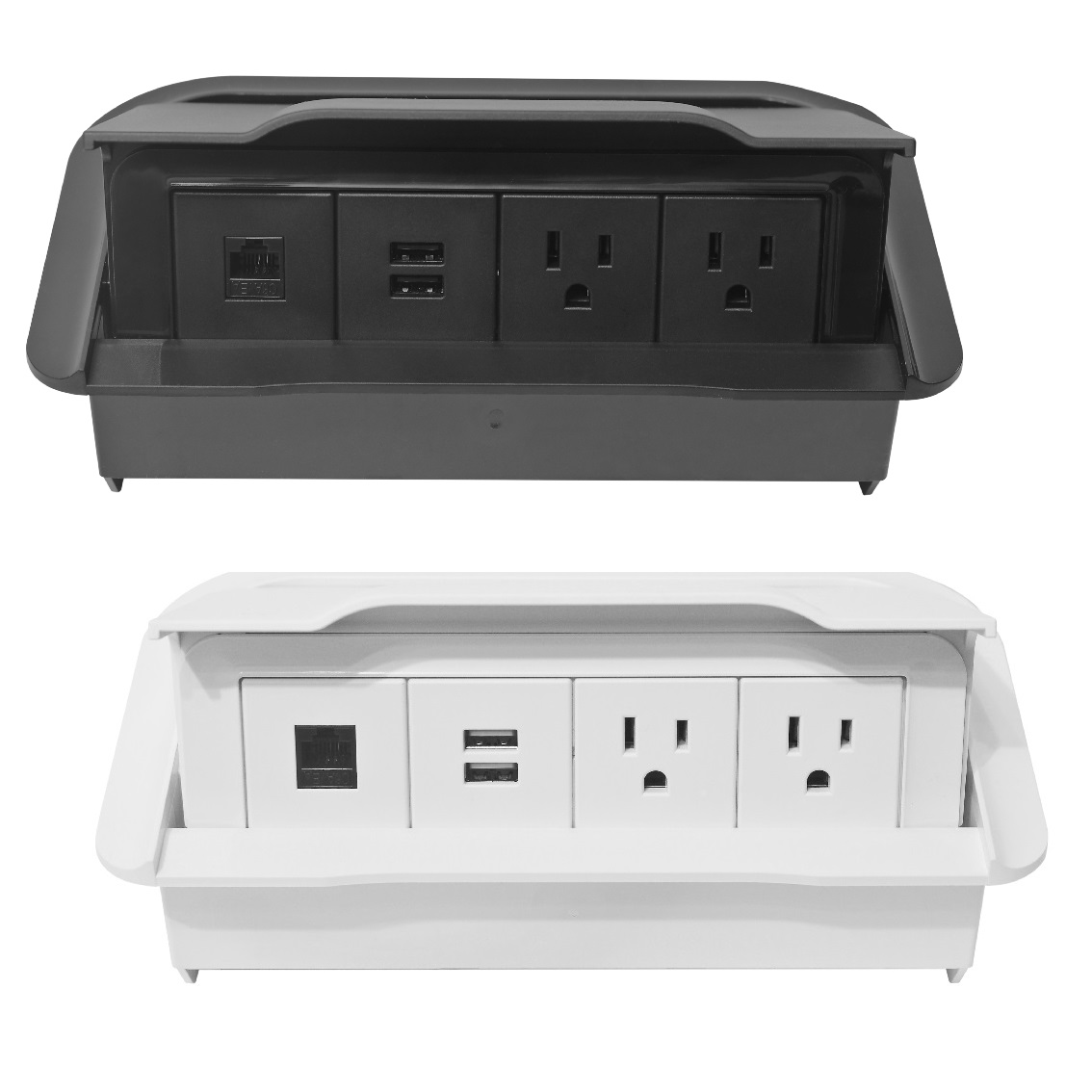

Appearance:

  • Matte black or white surface blasting, it's good to enhance the overall design quality when combined with furniture.

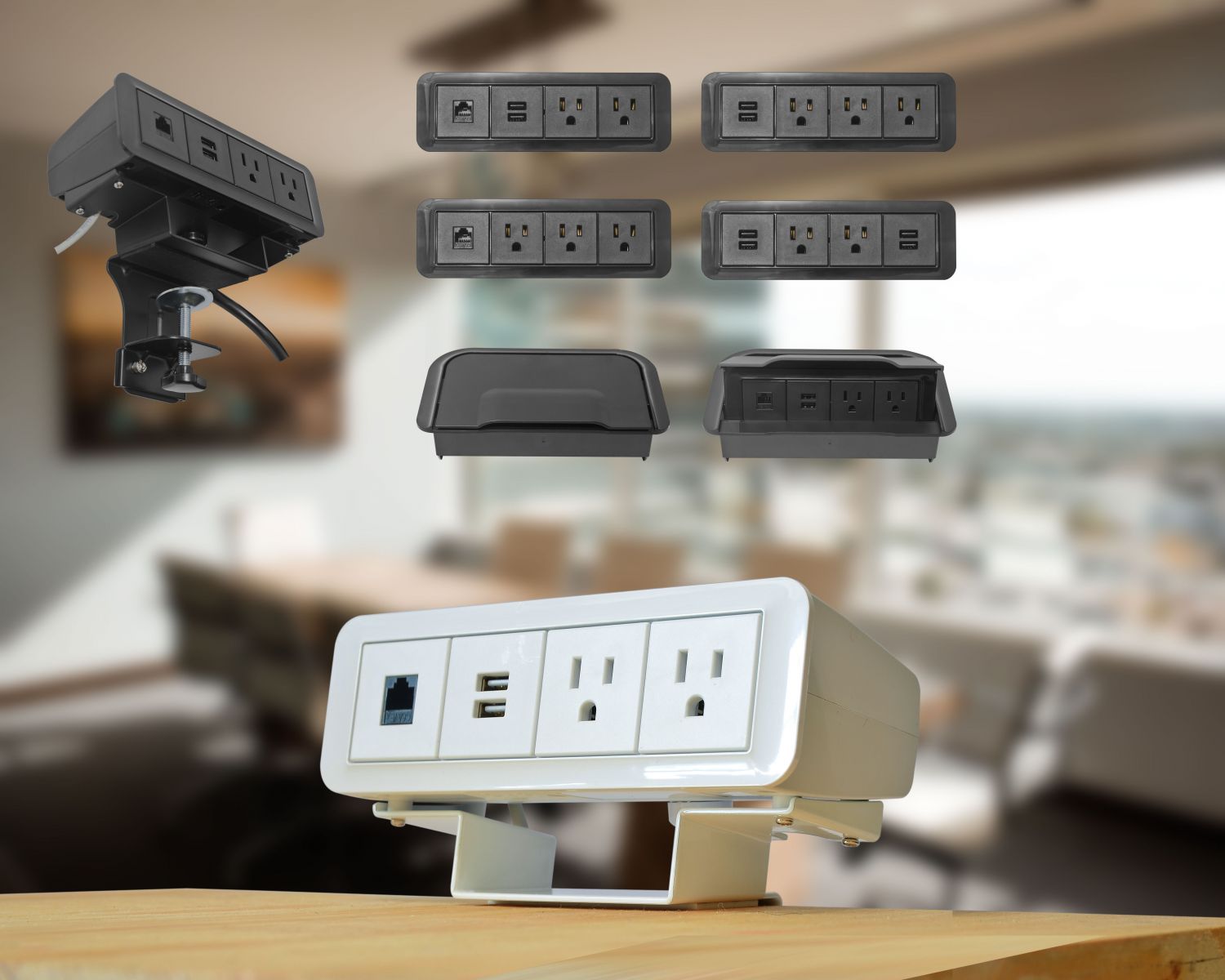

  • 2 easy and good choices for using - in desk, mountable.





 PRODUCT  INFORMATION

 Model no.   18-007
 Color  Customization
 Material of Construction  Plastic
 Product Dimensions

 Cut hole size for insurface box (indesk): 109.5mmW x 205mmL /

 if cut hole with Radius angle. :  114.5mmW x 205mmL and R8

 AC POWER /
 SURGE PROTECTION
 Surge Protection  -
 Voltage  125 Vac
 UL 1449 VPR  -
 Duty cycle current  -
 Current  15A
 Frequency Compatibility  50/60 Hz
 Output Receptacles  NEMA 5-15R
 Outlet numbers  Customization
 Plug Type  NEMA 5-15P
 Input Cord Length  Length between 3FT to 25 FT.
 Input Phase  Single-Phase
 USB CHARGING  Ports  1 - Optioanl
 Output Voltage  5 Vdc
 Output Current  1 set USB - 3.1A  / 2 sets USB - Total 6.2 A   ** 1 set=2 ports USB ; 2sets = 4 ports USB
TELCO PROTECTION  Connectors  RJ45 - Optional
 CERTIFICATIONS  Certifications  UL962A UL/cUL
 RoHS Compliant
