Safety:
Convenient:
Appearance:
66A is simple, compact and easy design, not too much complicated appearance.
Textured aluminum shell,light weight, easy to move, durability greatly enhanced.
PRODUCT INFORMATION |

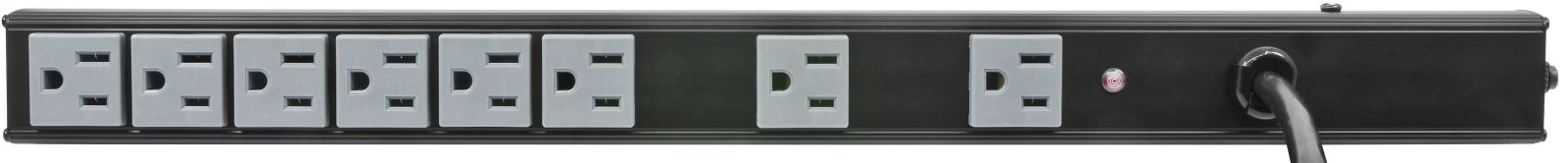

Model no. | 66A |
Color | Customization, | |
Material of Construction | Aluminuml | |
Product Dimensions | As spec of order requirement, length Min. 12 inches, Max. 77 inches | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - 1650 Joules Rating |
Voltage | 125Vac | |
UL 1449 VPR | L-N 500V, L-G 500V, N-G 500V | |
Duty cycle current | 3KA | |
Current | 12A or 16A (as order requirement) | |
Frequency Compatibility | 50/60 Hz | |
Output Receptacles | NEMA 5-15R or NEMA 5-15R duplex type or NEMA 5-20R duplex type (as order requirement) | |
Outlet numbers | 4 to 32 (as order requirement) | |
Plug Type | NEMA 5-15P or NEMA 5-20P (as order requirement) | |
Input Cord Length | Ae order requirement. (As laws and regulations is Min. 1.5M , Max. 4.5M) | |
Input Phase | Single-Phase | |
CERTIFICATIONS | Certifications | UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment - Safety - Part 1: General Requirements) |
CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment - Safety - Part 1: General Requirements) |
||
RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker - Optional
