Safety:
Convenient:
Appearance:

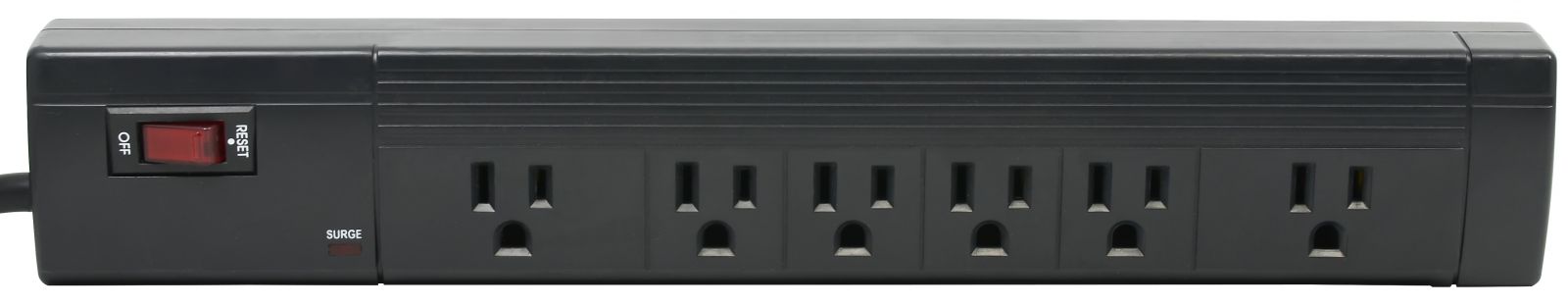

FMH6 is compact, strong, and easy design, it is good for office or home using.
PRODUCT INFORMATION |
Model no. | FMH6 | FMH6A, FMH6B-USB |
Color | Customization | Customizaion | |
Material of Construction | Plastic | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 1800 Joules Rating | Yes - max. 3000 Joules Rating |
Voltage | 125Vac | 125Vac | |
UL 1449 VPR | L-N 500V, L-G 500V, N-G 500V | L-N 500V, L-G 500V, N-G 400V | |
Duty cycle current | 3KA | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 60 Hz | 60Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 6 (4 Standard Outlets and 2 Transformer Spaced Outlets) | 6 (4 Standard Outlets and 2 Transformer Spaced Outlets) | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | 1.5 FT to 25 FT | 1.8 FT to 25 FT | |
Input Phase | Single-Phase | Single-Phase | |
USB CHARGING | USB | - | ONLY FOR FHM6B-USB |
TELCO PROTECTION | Connectors | RJ11 or RJ45 | RJ11 or RJ45 |
UNIVERSAL COAXIAL PROTECTION | Connections | F type | F type |
CERTIFICATIONS | Certifications | UL 1363 Third Edition | UL 1363 Third Edition |
UL 1449 Third Edition | UL 1449 Third Edition | ||
UL 497A, 3rd Edition("F") | UL 497A, 3rd Edition("F") | ||
UL 497B, 3rd Edition("C") | UL 497B, 3rd Edition("C") | ||
UL 1283, the Standard for Electromagnetic Interference Filters, Fifth Edition | UL 1283, the Standard for Electromagnetic Interference Filters, Fifth Edition | ||
C22.2, No. 21-95, Eighth Edition,indicates evaluation to the requirements | C22.2, No. 21-95, Eighth Edition,indicates evaluation to the requirements | ||
CSA C22.2 No. 8-M1986, Fourth Edition,Electromagnetic Interference (EMI) Filters, | CSA C22.2 No. 8-M1986, Fourth Edition,Electromagnetic Interference (EMI) Filters, | ||
CSA Electrical Technical Information Letters A-24, dated October 31, 1995 and I-11B, dated May 13, 1986. |
CSA Electrical Technical Information Letters A-24, dated October 31, 1995 and I-11B, dated May 13, 1986. | ||
RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch
* Phone/Fax Protection - optional
Coaxial Protection - optional
