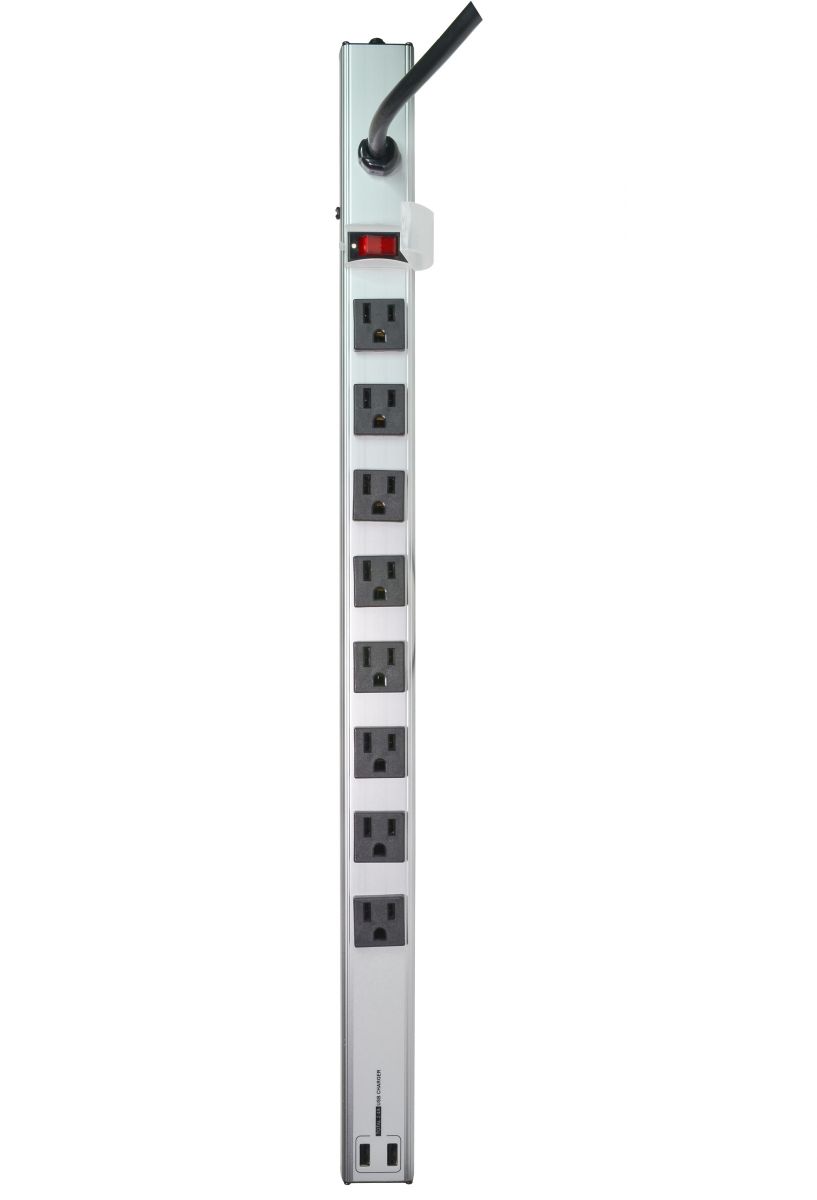

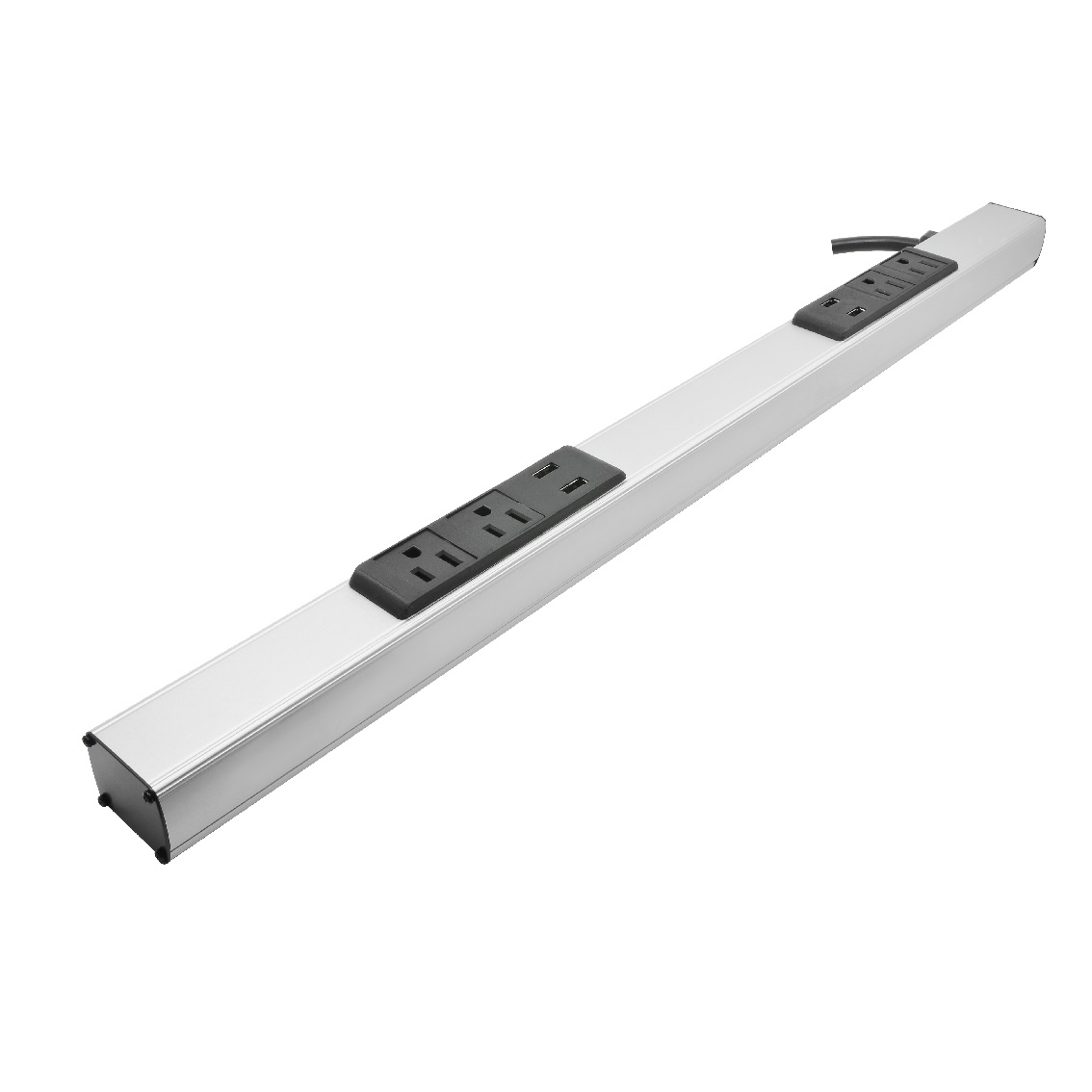

Rack & Mountable Aluminum Housing FPI
Vertical Power Distribution Unit- NEMA5-15/20R Outlets
- Combo On/Off Switch Breaker
- Aluminum Housing
Safety:
- With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation.
- With heavy duty cord, avoid the electric wire go off due to wire twisted.
Convenient:
- Ideal for use of multiple convenience outlets for powering various of equipment.
- Just one click master switch to turn on/off to control whole power strip power.
- Long type power strip, can fix much power issues of electronic or machine which cannot be used due to electric cord range.
- The long wire of power strip solution can totally solve the short wire problem of using electronic device.

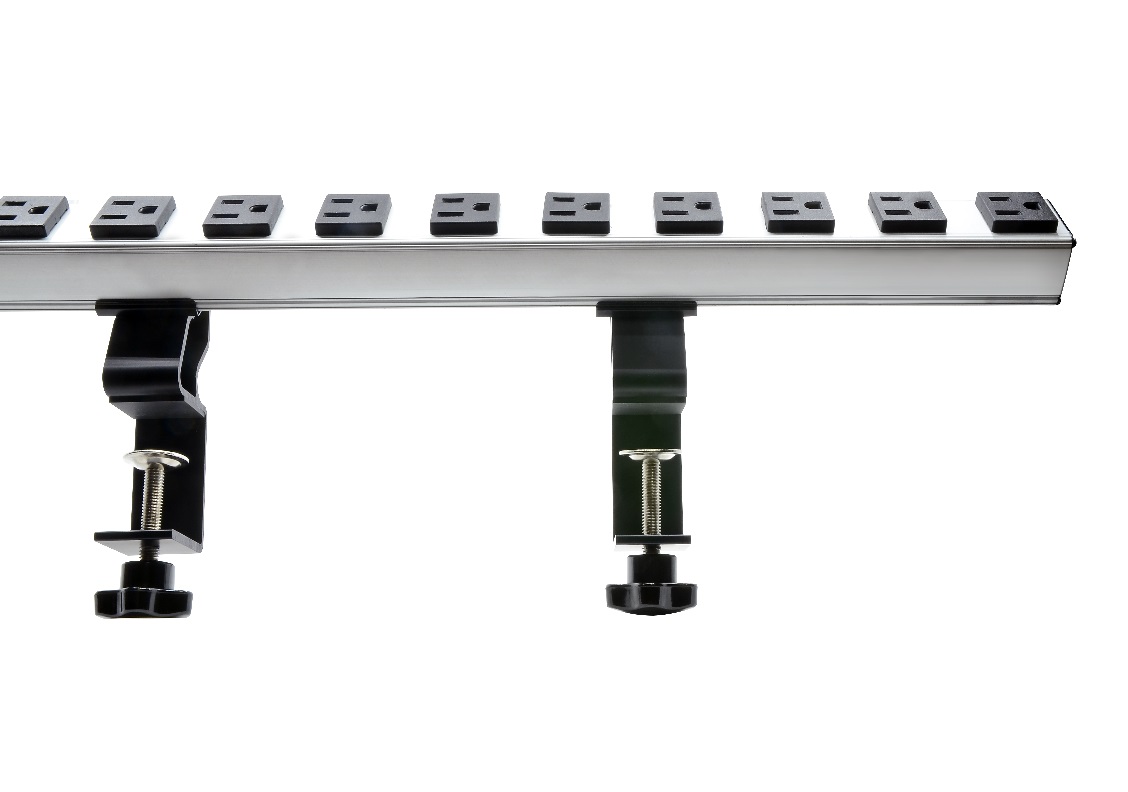

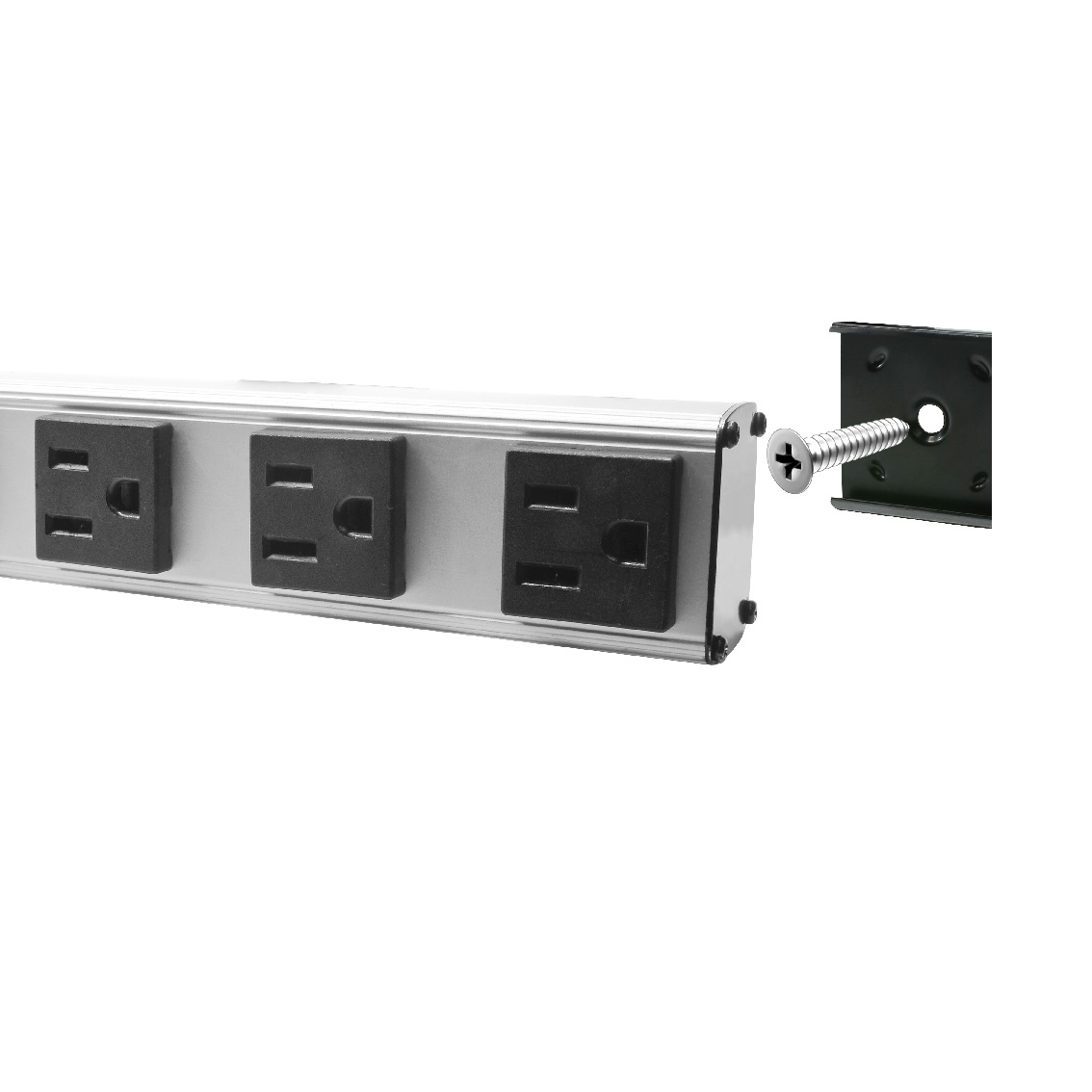

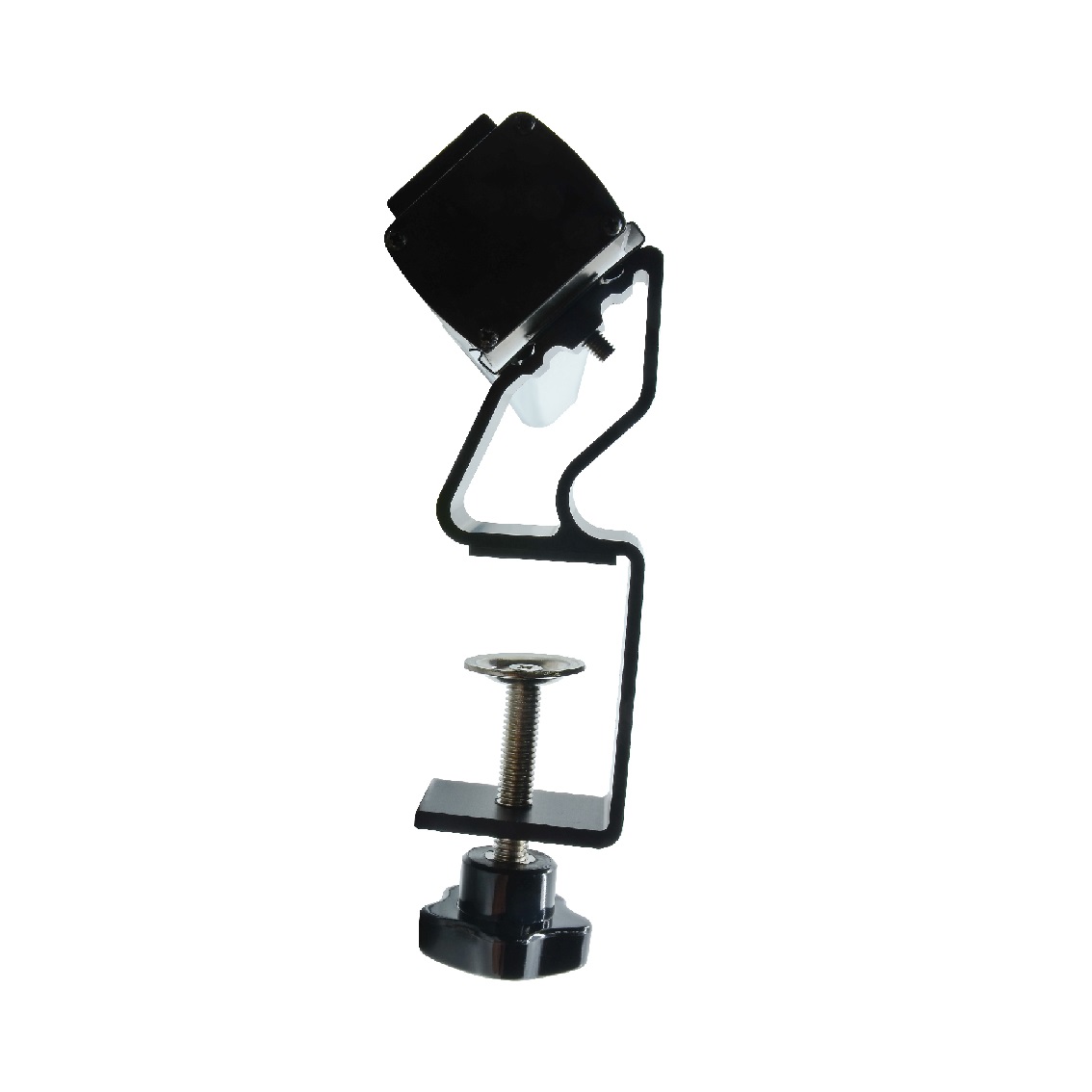

- With clamp or hardware kits, bulit own working station.
Appearance:
FPI is simple, compact and easy design, not too much complicated appearance.
Textured aluminum shell，light weight, easy to move, durability greatly enhanced.
| Model |
Length (Housing) |
Outlets | Amps | Cord Length | Protection | Amp/Volt. Meter | |
| Surge | Joules | ||||||
| FPI | 12"~77" | 4~24 | 15A | 2'~15' | Optional | Max. 1650J | Optional |
| FPI | 12"~77" | 4~24 | 20A | 2'~15' | Optional | Max. 1650J | Optional |
|
PRODUCT INFORMATION |
Model no. | FPI |
| Color | Customization | |
| Material of Construction | Aluminuml | |
| Product Dimensions | As spec of order requirement, length Min. 12 inches, Max. 77 inches | |
| AC POWER / SURGE PROTECTION |
Surge Protection | Yes - 1650 Joules Rating |
| Voltage | 125Vac | |
| UL 1449 VPR | L-N 500V, L-G 500V, N-G 500V | |
| Duty cycle current | 3KA | |
| Current | 15A or 20A (as order requirement) | |
| Frequency Compatibility | 60 Hz | |
| Output Receptacles | NEMA 5-15R or NEMA 5-20R (as order requirement) | |
| Outlet numbers | 4 to 32 (as order requirement) | |
| Plug Type | NEMA 5-15P or NEMA 5-20P (as order requirement) | |
| Input Cord Length | Length between 0.61 and 7.6 meters. | |
| Input Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | Tested to UL 1363, Third Edition, dated May 2, 2007 including revisions through October 13, 2009 |
| ANSI/UL 1449, Third Edition, dated September 29, 2006, including revisions through May 3, 2010. | ||
| CSA C22.2 No. 21-95, Eighth Edition, Canadian Standards for Electromagnetic Interference (EMI) Filters CSA C22.2 No. 8-1986, Fourth Edition |
||
| CSA Technical Information Letters A-24 dated October 31, 1995 and I_11B dated May 13, 1986 | ||
| RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* LED Metet Board (Dipslay Module) - Optional
