Safety:
Convenient:
Appearance:
M6 is simple, compact and easy design, Metal Chassis Cover with Plastic Bottom

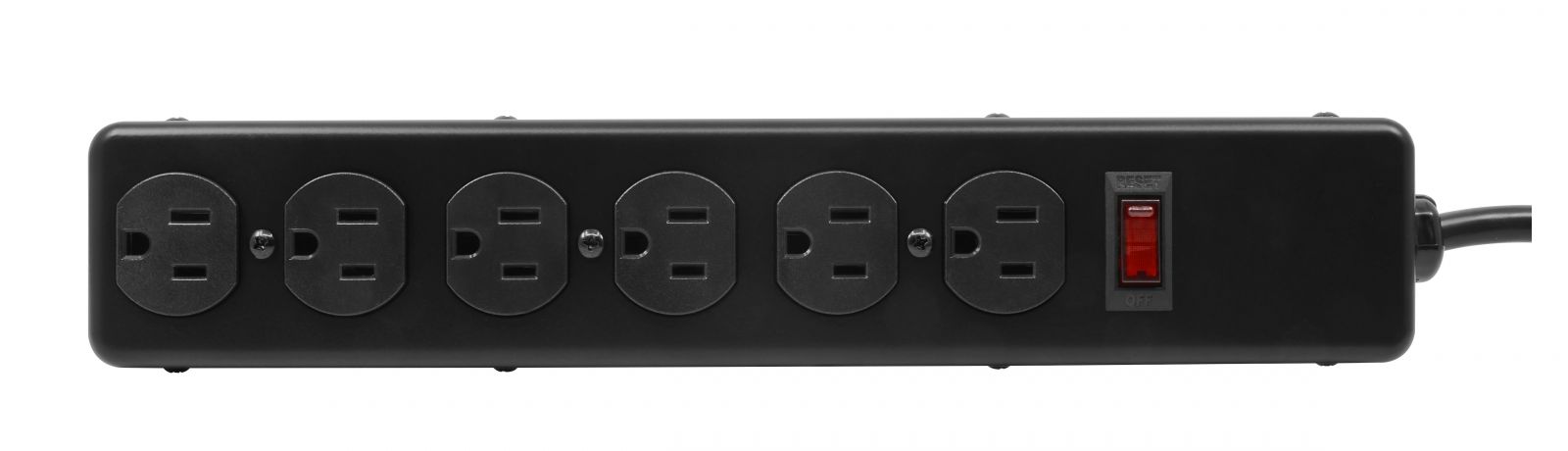

6 Outlets Surge Protector
PRODUCT INFORMATION |
Model no. | M6 | M6-3MS-2AL-2, M6-4MS-1, M6-3VS-1 (Type: "-2" means 2 indicator LED lights) |
Color | Customization | Customization | |
Material of Construction | Top enclosure Sheet metal Bottom Plastic |
Top enclosure Sheet metal Bottom Plastic |
|
AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes |
Voltage | 125Vac | 125Vac | |
UL 1449 VPR | - | M6-3MS-2AL-2: L-N 500V, L-G 500V, N-G 500V |
|
- | M6-4MS-1, M6-3VS-1: L-N 500V, L-G 500V, N-G 500V |
||
Duty cycle current | - | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 60 Hz | 60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 6 | 6 | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | 2 FT to 25 FT | 1.8 FT to 25 FT | |
Input Phase | Single-Phase | Single-Phase | |
CERTIFICATIONS | Certifications | Tested to UL 1363, Second Edition, requirements effective December 12, 1996 |
Tested to UL 1363, Third Edition, dated May 2, 2007 including revisions through August 27, 2008 |
- | ANSI/UL 1449, Third Edition, dated September 29, 2006, including revisions through September 4, 2009. |
||
- | CSA C22.2 No. 21-95, Eighth Edition | ||
- | CSA C22.2 No. 8-1986, Fourth Edition | ||
- | CSA Electrical Certification Notice 516/Technical Information Letters A-24 and I_11B |
||
RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
