Safety:
Convenient:
Appearance:

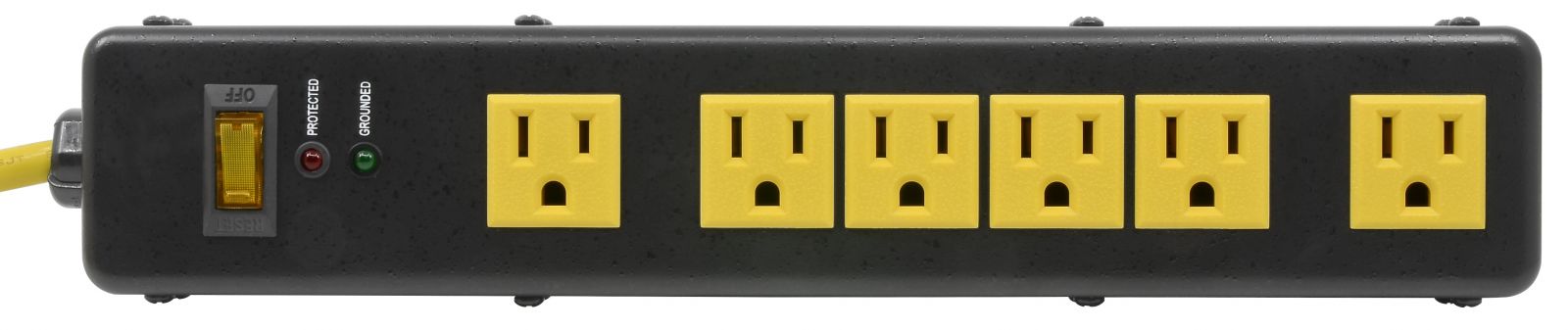

MSA is compact, strong, and easy design, it is good for office, home using or working station.
PRODUCT INFORMATION |
Model no. | MSA | MSA-XMS | MSA-XMS-3L |
Color | Customization | Customization | Customization | |
Material of Construction | Top enclosure is Sheet metal, Bottom is plastic | Top enclosure is Sheet metal, Bottom is plastic | Top enclosure is Sheet metal, Bottom is plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes - 1200 Joules Rating | Yes - 1200 Joules Rating |
Voltage | 125Vac | 125Vac | 125Vac | |
UL 1449 VPR | - | L-N 500V, L-G 500V, N-G 500V | L-N 400V, L-G 400V, N-G 400V | |
Duty cycle current | - | 3KA | 3KA | |
Current | 15A | 15A | 15A | |
Frequency Compatibility | 60Hz | 60Hz | 60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 6 (4 standard outlets + 2 transformer spaced oulets) | 6 (4 standard outlets + 2 transformer spaced oulets) | 6 (4 standard outlets + 2 transformer spaced oulets) | |
Plug Type | NEMA 5-15P | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | Length between 2 FT to 25FT | Length between 2 FT to 25FT | Length between 2 FT to 25FT | |
Input Phase | Single-Phase | Signle-Phase | Single-Phase | |
TELCO PROTECTION | Wires Protected | - | - | 2 wire, 1 pair (3,4) |
Connectors | - | - | RJ11 (6P2C), Two or Three | |
Clamping Level | - | - | 175V | |
CERTIFICATIONS | Certifications | UL 1363, the Standard for Relocatable Power Taps, Third Edition, | UL 1363, the Standard for Relocatable Power Taps, Third Edition, | UL 1363, the Standard for Relocatable Power Taps, Third Edition, |
- | ANSI/UL 1449, the Standard for Surge Protective Devices, Third Edition | ANSI/UL 1449, the Standard for Surge Protective Devices, Third Edition | ||
- | - | UL 498, Thirteenth Edition | ||
CSA C22.2 No. 21-95, Eighth Edition, Cord Sets and Power Supply Cords, | CSA C22.2 No. 21-95, Eighth Edition, Cord Sets and Power Supply Cords, | CSA C22.2 No. 21-95, Eighth Edition, Cord Sets and Power Supply Cords, | ||
- | CSA C22.2 No. 8-1986, Fourth Edition, Standards for Electromagnetic Interference Filters | CSA C22.2 No. 8-1986, Fourth Edition, Standards for Electromagnetic Interference Filters | ||
- | CSA Electrical Certification Notice 516/Technical Information Letters A-24 and I-11B | CSA Electrical Certification Notice 516/Technical Information Letters A-24 and I-11B | ||
RoHS Compliant | RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* Audible Surge Alarm - optional
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
