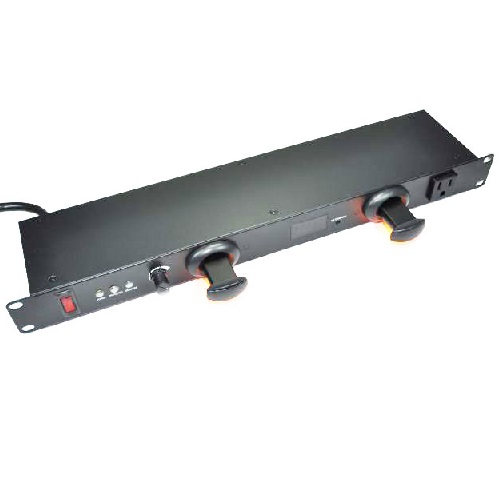

Display Module + Pull-out Light MSPDM

19inch Horizontal Power Distribution Unit





Safety:

  • With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation. - Optional
  • With Amperage/Boltage meter, monitor unit condition any time.
  • With Pull-out Light, light up enviroment for MSP while working.
  • With Surge protection indicator light, and master On/off switch, enhance Safety identification level, easily aware of product working situation. Optional
  • With heavy duty cord, avoid the electric wire go off due to wire twisted.

Convenient:

  • Ideal for use of multiple convenience outlets for powering various of equipment.
  • Just one click master switch to turn on/off to control whole power strip power.
  • Long type power strip, can fix much power issues of electronic or machine which cannot be used due to electric cord range.
  • The long wire of power strip solution can totally solve the short wire problem of using electronic device.
  • 1 U Metal Chassis with built in mounting ears design for rack.

Appearance:

MSPDM is a metal power rack, simple, compact and easy design, not too much complicated appearance.

Textured aluminum shell,light weight, easy to move, durability greatly enhanced.




 PRODUCT  INFORMATION

 Model no.   MSPDM(09-007)
 Color  Customization
 Material of  Construction  Aluminum shell
 AC POWER /
 SURGE PROTECTION
 Surge Protection  Yes - max. 3000 Joules Rating
 Voltage  125 Vac
 UL 1449 VPR  L-N 500V
 Duty cycle current  3KA
 Current  12A
 Frequency  Compatibility  60 Hz
 Output  Receptacles  NEMA 5-15R
 Outlet numbers  1 to 11
 Plug Type  NEMA 5-15P
 Input Cord Length  As order requirement. (As laws and regulations is Max. 4.5M,  Min.1.5M)
 Input Phase  Single-Phase
 CERTIFICATIONS  Certifications  Tested to UL 60950-1, 2nd Edition, 2014-10-14
 CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
 RoHS Compliant
