Safety:
Convenient:
Appearance:
NFM is compact, strong, and easy design, it is good for office or home using.

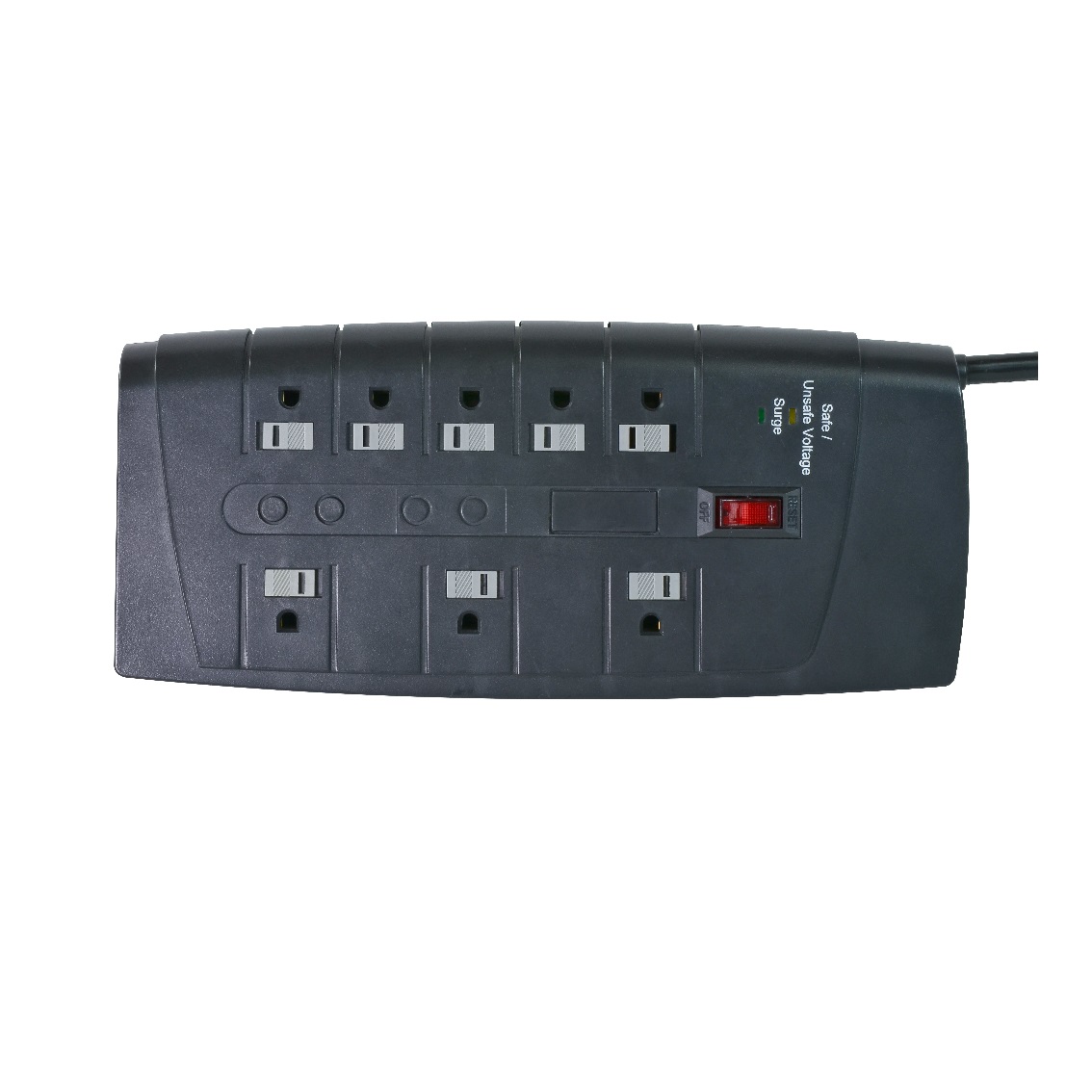

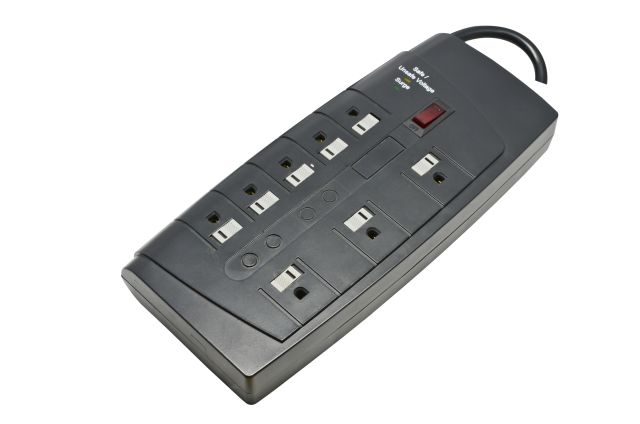

8 Outlets Surge Protector
PRODUCT INFORMATION |
Model no. | NFM-xMS (x can be 6, 8, 10, 12) |
Color | Customization | |
Material of Construction | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 3600 Joules Rating |
Voltage | 125Vac | |
UL 1449 VPR | 6MS、8MS、10MS:L-N 330V, L-G 400V, N-G 400V | |
12MS:L-N 500V, L-G 500V, N-G 500V | ||
Duty cycle current | 3KA | |
Current | 15A | |
Frequency Compatibility | 60 Hz | |
Output Receptacles | NEMA 5-15R | |
Outlet numbers | 8 with receptacle covers (5 Standard outlests + 3 Transformer spaced outlets) |
|
Plug Type | NEMA 5-15P | |
Input Cord Length | 1.5 FT to 25 FT | |
Input Phase | Single-Phase | |

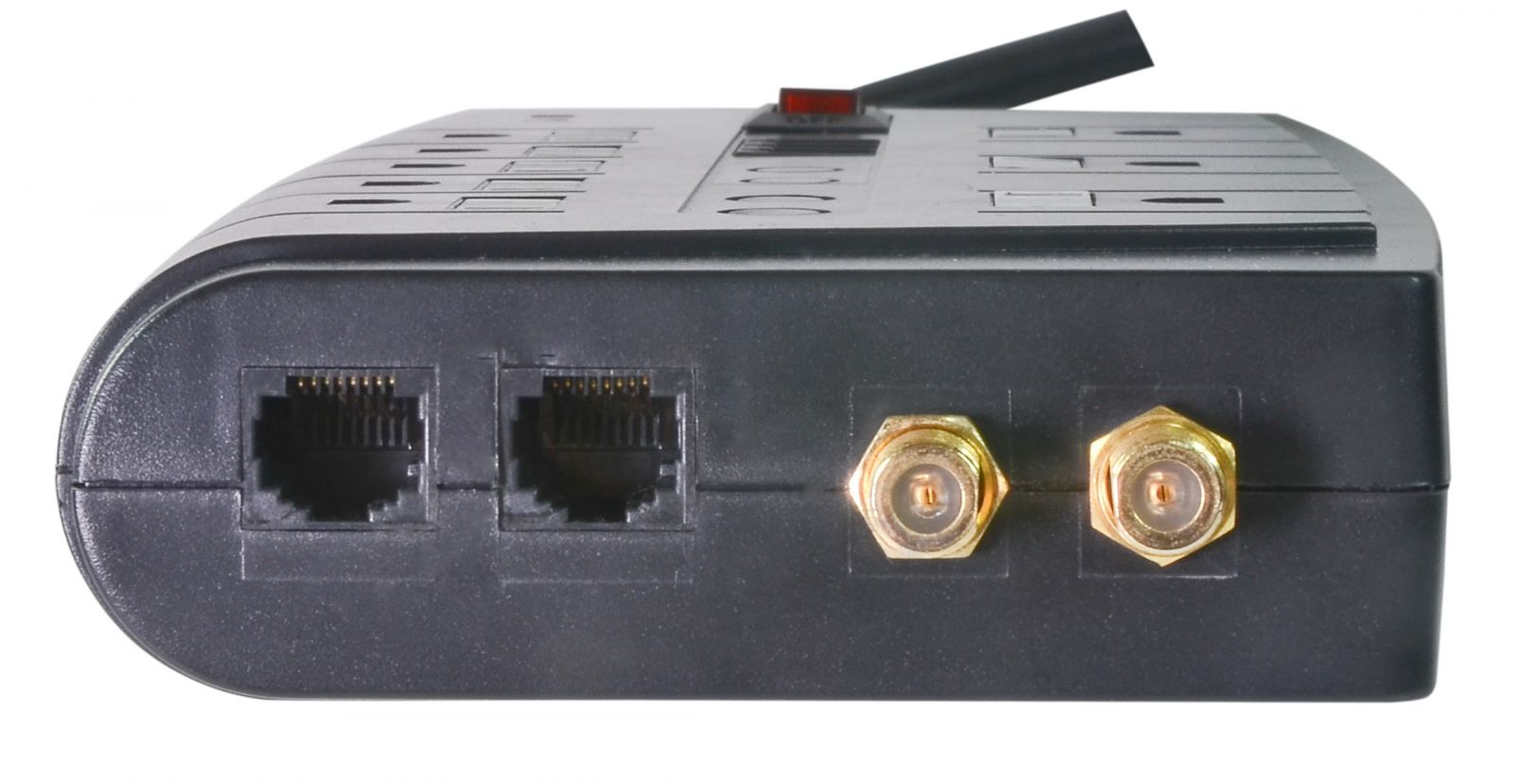

LAN CIRCUITS | Wires Protected | Pins 1, 2, 3, & 6 |
Connectors | RJ-45 Shared with Telco | |
Clamping Level | 6.0 - 8.2 Vdc | |
TELCO PROTECTION | Connectors | 2 or 3 RJ11 or RJ45 |
Clamping Level | 6.0 - 8.2 Vdc | |
UNIVERSAL COAXIAL PROTECTION | Connections | F type 2 or 4 |
CERTIFICATIONS | Certifications | Tested to UL 1363, Third Edition, dated May 2, 2007 including revisions through August 27, 2008 |
ANSI/UL 1449, Third Edition, dated September 29, 2006 and including revisions through September 4, 2009 |
||
UL 1283, Fifth Edition, dated November 30, 2005, and including revisions through February 20, 2009. |
||
RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
