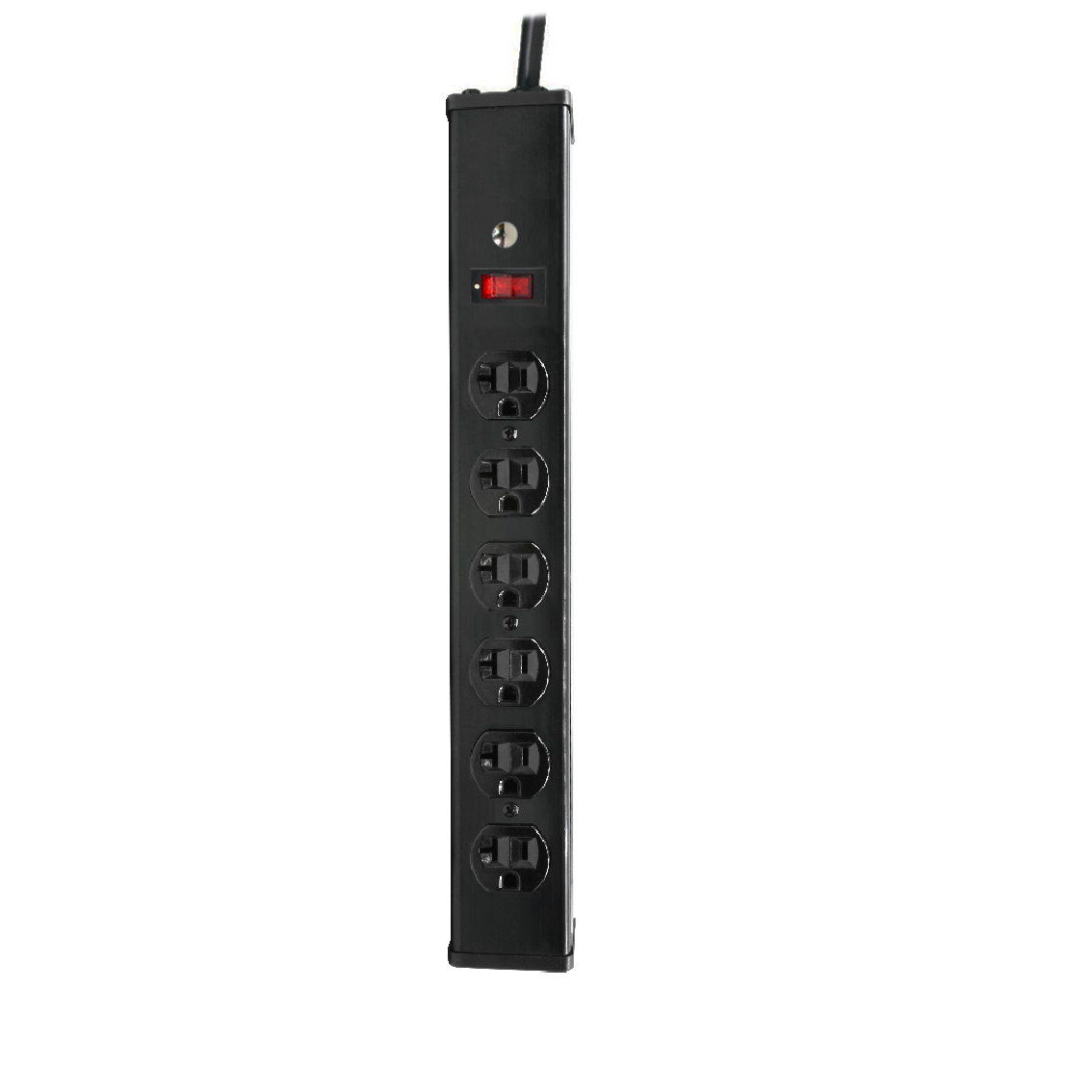

15A/20A Aluminum Housing + Master Switch NP2
NP2- NEMA5-15/20R Outlets
- Aluminum Housing
Safety:
- With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation.
- With heavy duty cord, avoid the electric wire go off due to wire twisted.
Convenient:
- Ideal for use of multiple convenience outlets for powering various of equipment.
- Long type power strip, can fix much power issues of electronic or machine which cannot be used due to electric cord range.
- The long wire of power strip solution can totally solve the short wire problem of using electronic device.
Appearance:
NP2 is simple, compact and easy design, not too much complicated appearance.
Textured aluminum shell，light weight, easy to move, durability greatly enhanced.
| Model |
Length (Housing) |
Outlets | Amps | Cord Length |
| NP2 | 12"~77" | 4~24 | 15 | 2'~15' |
| NP2 | 12"~77" | 4~24 | 20 |
2'~15' |
|
PRODUCT INFORMATION |
Model no. | NP2 |
| Color | Customization, | |
| Material of Construction | Aluminuml | |
| Product Dimensions | As spec of order requirement, length Min. 12 inches, Max. 77 inches | |
| AC POWER / SURGE PROTECTION |
Surge Protection | - |
| Voltage | 125Vac | |
| UL 1449 VPR | - | |
| Duty cycle current | - | |
| Current | 15A or 20A (as order requirement) | |
| Frequency Compatibility | 60 Hz | |
| Output Receptacles | NEMA 5-15R or NEMA 5-15R duplex type or NEMA 5-20R duplex type (as order requirement) | |
| Outlet numbers | 4 to 24 (as order requirement) | |
| Plug Type | NEMA 5-15P or NEMA 5-20P (as order requirement) | |
| Input Cord Length | Length between 0.46 and 7.6 meters. | |
| Input Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | Tested to UL 1363, Second Edition |
| RoHS Compliant |
