Safety:
Convenient:
Appearance:
NP-DM is simple, compact and easy design, not too much complicated appearance.

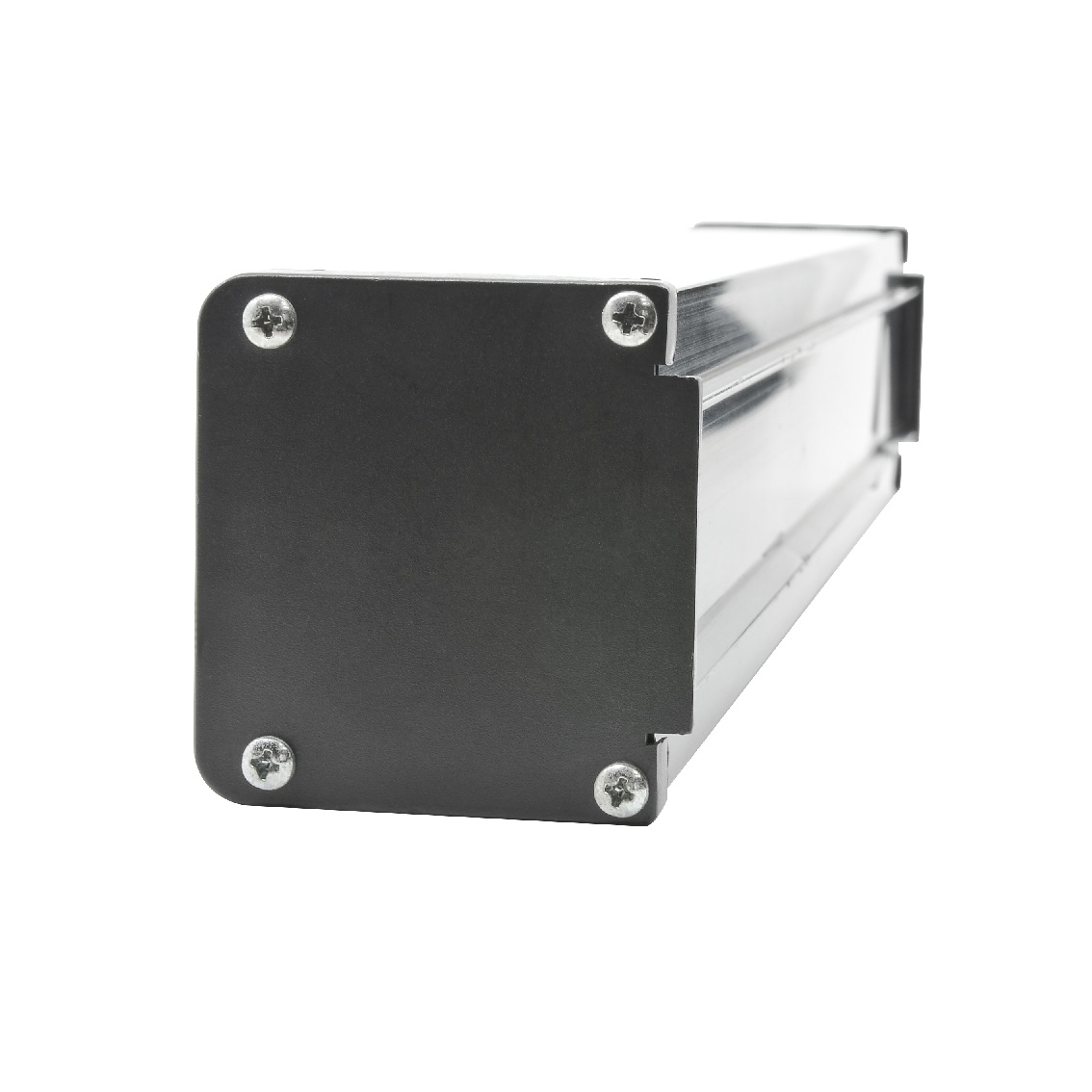

Textured aluminum shell,light weight, easy to move, durability greatly enhanced.
Model |
Length (Housing) |
Outlets | Amps | Cord Length | |
NP-DM | 12"~77" | 4~24 | 15 | 2'~15' | |
NP-DM | 12"~77" | 4~24 | 20 |
2'~15' |
PRODUCT INFORMATION |
Model no. | NP-DM |
Color | Customization, | |
Material of Construction | Aluminuml | |
Product Dimensions | As spec of order requirement, length Min. 12 inches, Max. 77 inches | |
AC POWER / SURGE PROTECTION |
Surge Protection | - |
Voltage | 125Vac | |
UL 1449 VPR | - | |
Duty cycle current | - | |
Current | 12A or 16A (as order requirement) | |
Frequency Compatibility | 50/60 Hz | |
Output Receptacles | NEMA 5-15R or NEMA 5-15R duplex type or NEMA 5-20R duplex type (as order requirement) | |
Outlet numbers | 4 to 24 (as order requirement) | |
Plug Type | NEMA 5-15P or NEMA 5-20P (as order requirement) | |
Input Cord Length | Ae order requirement. (As laws and regulations is Max. 4.5M) | |
Input Phase | Single-Phase | |
CERTIFICATIONS | Certifications | Tested to UL 60950-1, 2nd Edition, 2014-10-14 |
CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10, | ||
RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
