Safety:
With Surge protection indicator light, enhance Safety identification level, easily aware of product working situation.
Convenient:
Appearance:

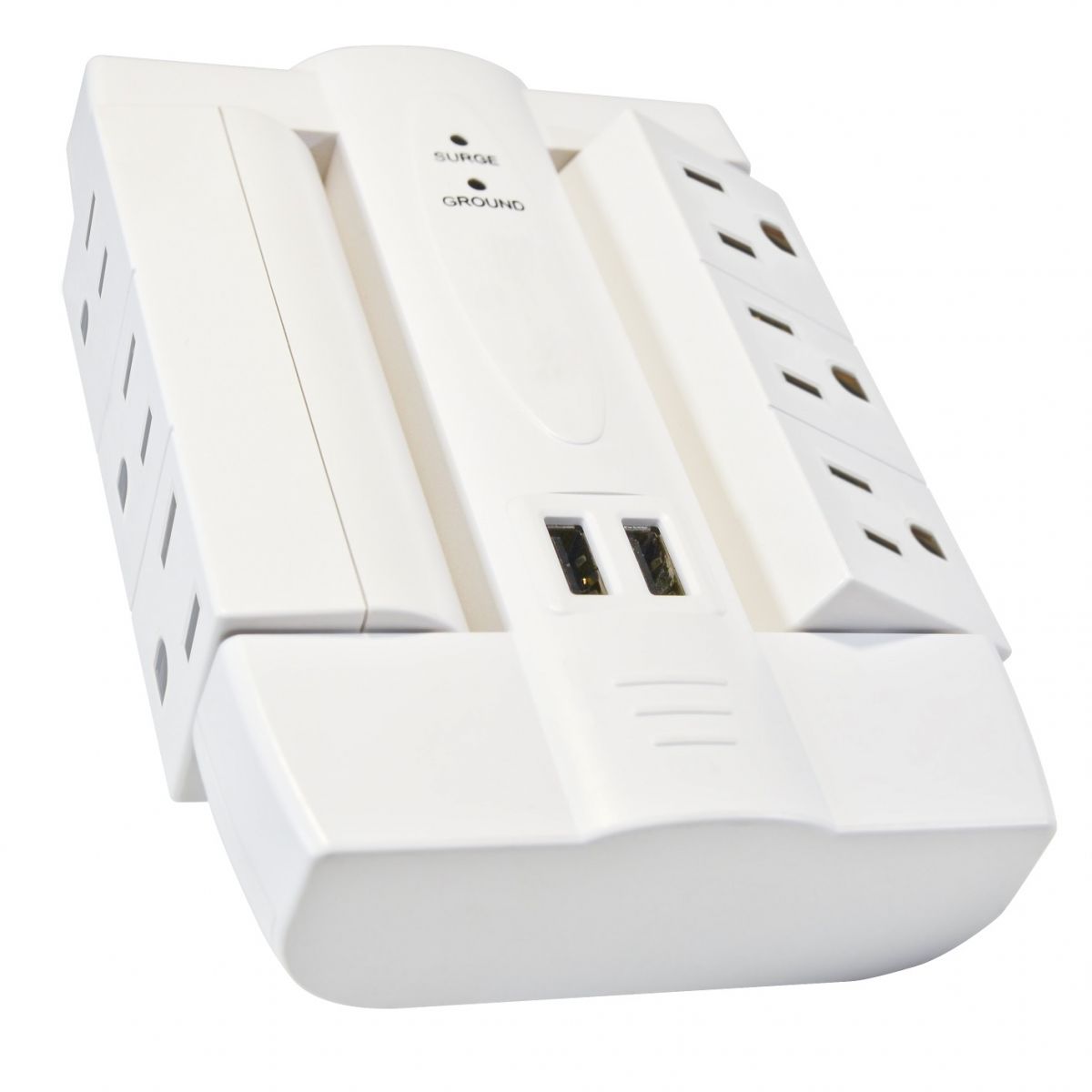

6 Swivel Side Sockets Surge Wall Tap with USB Charger * US Patented design
PRODUCT INFORMATION |
Model no. | 16R-006-xMS (x can be 3 to 7 or 1+6) |
Color | Customization | |
Material of Construction | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 2100 Joules Rating |
Voltage | 125 Vac | |
UL 1449 VPR | 3MS to 6MS:L-N 400V, N-G 500V, N-G 400V | |
1+6MS & 7MS:L-N 400V, N-G 400V, N-G 400V | ||
Nominal Discharge current | 3KA | |
Current | 15A | |
Frequency Compatibility | 50/60 Hz | |
Output Receptacles | NEMA 5-15R | |
Outlet numbers | 6 | |
Plug Type | No (Wall Tap) | |
Input Cord Length | No (Wall Tap) | |
Input Phase | Single-Phase | |
TELCO PROTECTION | Connectors | RJ11 or RJ45 |
UNIVERSAL COAXIAL PROTECTION | Connectors | F type 2 or 4 |
USB CHARGING | Ports | 2 Extension USB Type A |
Output Voltage | 5Vdc | |
Output Current | 2.4A | |
CERTIFICATIONS | Certifications | Tested to UL 498A, Second Edition dated 2008-01-23, including revisions through September 28, 2015, |
UL 1449, Fourth Edition dated 2014-08-20, including revisions through March 17, 2016. |
||
CSA C22.2 No. 42_10, Seventh Edition, | ||
C22.2 No. 8_13, Fifth Edition, | ||
CSA Electrical Certification Notice 516 | ||
RoHS Compliant |
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
