Safety:
Convenient:
Appearance:
PR4 is simple, compact and easy design, not too much complicated appearance.

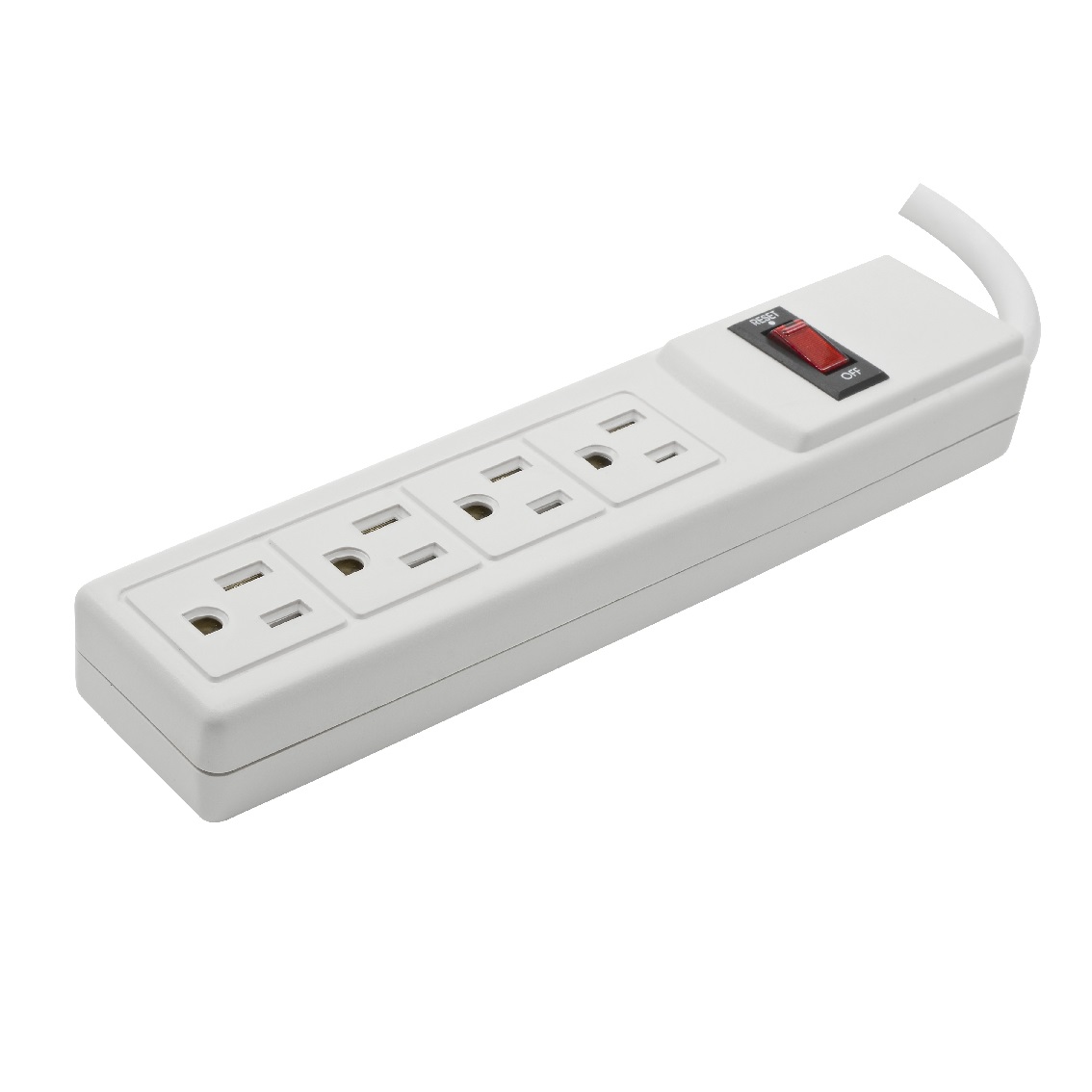

4 Outlets Surge Protector
PRODUCT INFORMATION |
Model no. | PR4 | PR4-3MS, PR4-3VS, PR4-1V |
Color | Customization | Customization | |
Material of Construction | Plastic | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes |
Voltage | 125Vac | 125Vac | |
UL 1449 VPR | - | PR4-3MS, PR4-3VS: L-N 500V, L-G 500V, N-G 500V |
|
PR4-1V:L-N 400V | |||
Duty cycle current | - | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 60 Hz | 60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 4 | 4 | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | 2 FT to 25 FT | 2 FT to 25 FT | |
Input Phase | Single-Phase | Single-Phase | |
LAN CIRCUITS | Wires Protected | - | Pins 1, 2, 3, & 6 |
Connectors | - | RJ-45 Shared with Telco | |
Clamping Level | - | 6.0 - 8.2 Vdc | |
TELCO PROTECTION | Connectors | - | 2 or 3 RJ11 or RJ45 |
Clamping Level | - | 6.0 - 8.2 Vdc | |
UNIVERSAL COAXIAL PROTECTION | Connections | - | F type 2 or 4 |
CERTIFICATIONS | Certifications | Tested to UL 1363, Second Edition | Tested to UL 1363, Second Edition |
RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
