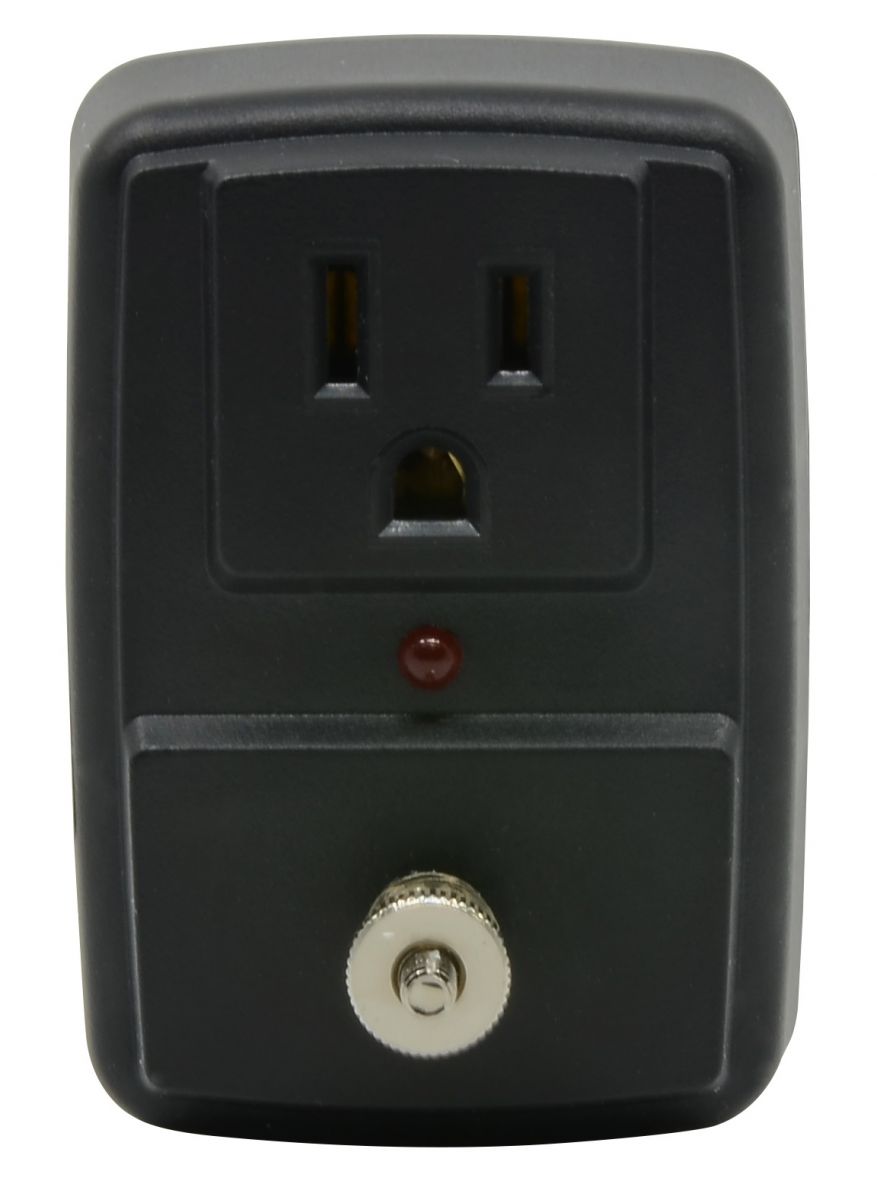

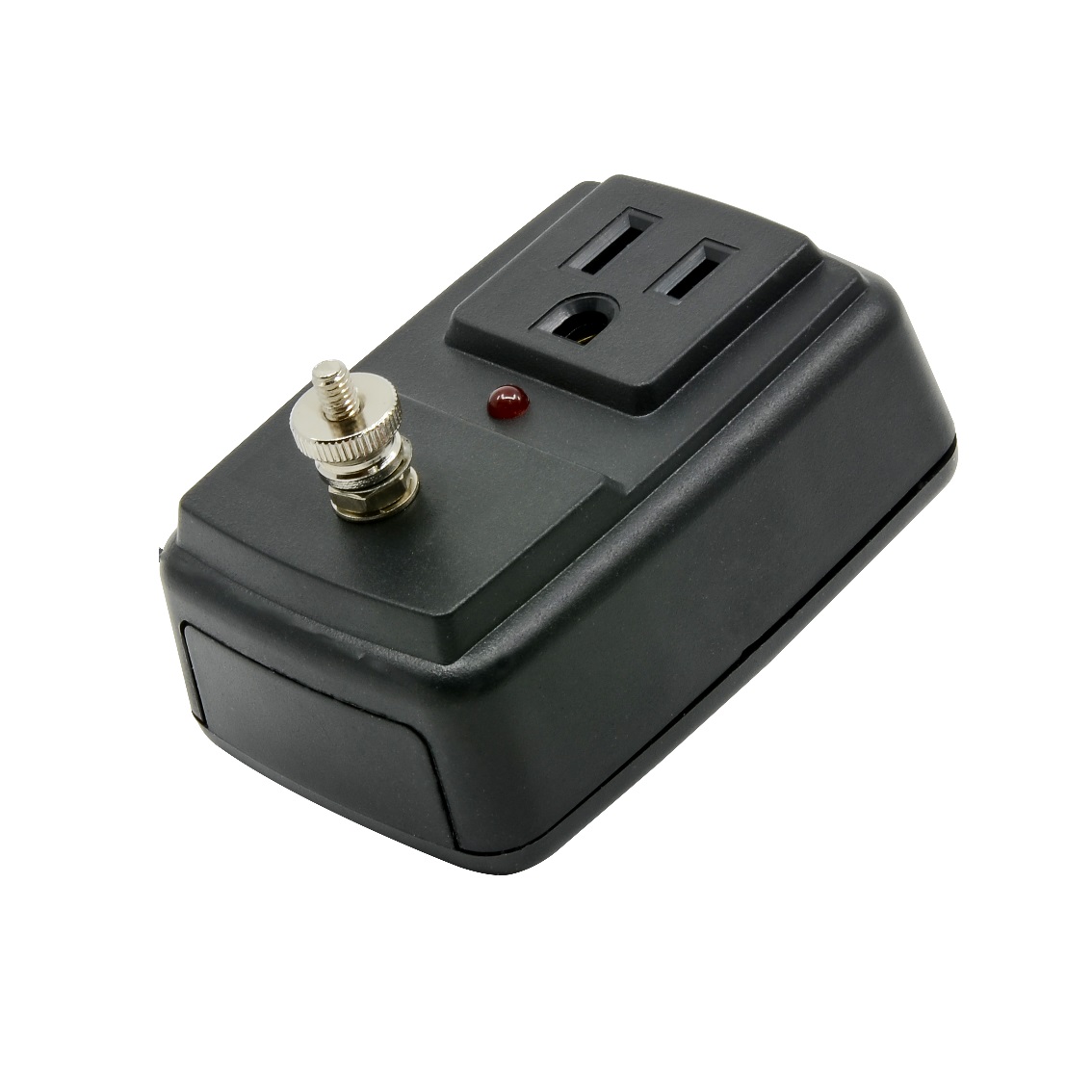

Grounding Lug + Surge Protection R1-3MS

  • Direct Plug-in for easy using with 125V working voltage
  • With Surge protection
  • Phone/Fax  Protection - Optional
  • Coaxial Protection - Optional

Safety:

  • With Surge protection, enhance Safety identification level, it is more safer when its working.
  • It’s optional for Phone/Fax and coaxial Protection, give you more safer life.

Convenient:

  • Just plug-in, the unit has 900 joules of surge energy absorption.
  • R1-3MS can combined with Phone/Fax (optional) or coaxial (optional) together, only need one wall tap, then can reach your protection and utility purpose.

Appearance:

R1-3MS is compact and strong, can fit in any place, easy carrying.

 PRODUCT  INFORMATION

 Model no.   R1-3MS
 Color  Customization
 Material of  Construction  Plastic
 AC POWER /
 SURGE PROTECTION
 Surge Protection  Yes - max. 900 Joules Rating
 Voltage  125 Vac
 UL 1449 VPR  L-N 500V, L-G 500V, N-G 500V
 Duty cycle current  3KA
 Current  15A
 Frequency  Compatibility  50/60 Hz
 Output  Receptacles  NEMA 5-15R
 Outlet numbers  1
 Plug Type  No  (Wall Tap)
 Input Cord Length  No  (Wall Tap)
 Input Phase  Single-Phase
 TELCO PROTECTION  Connectors  RJ11
 UNIVERSAL COAXIAL  PROTECTION  Connections  F type
 CERTIFICATIONS  Certifications  Tested to ANSI/UL 1449,  Third Edition, dated September 29, 2006.

 CSA C22.2 No. 8-M1986, the Standard for Electromagnetic Interference
 (EMI) Filters,Fourth Edition, dated July 2000, Reaffirmed 2004

 CSA Electrical Certification Notice No. 516, dated September 2, 1986,
 Technical Information Letter A-24, dated October 31, 1995,
 and Technical Information Letter I-11B, dated May 13, 1986.
 RoHS Compliant
