IP Addressable Power Distribution Unit　SIP-U2 (Power Rack)

IP addressable Power Distribution Unit
  • 1U Horizontal Controllable Power
  • 8 Controllable Receptacles at Front
  • Temperature/Humidity Sensor and Network Interface, 1 x RJ45, 1 x RJ11(6P4C), 1 x RJ11(6P2C)
  • 1 master On/off switch with built-in circuit breaker

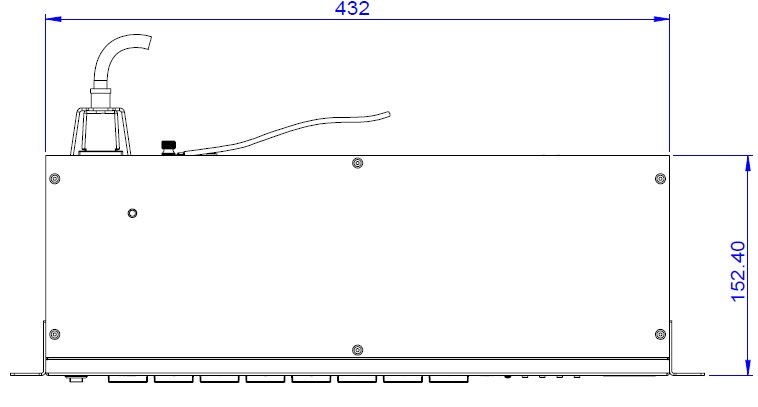

Unit dimension: 17" (1U) x 1.62" (H) x 6" (D)

 User's Interface - SiPower app, for controlling, monitoring and managaing the engery sumption for all of your SiP series products from anywhere on your iOS and Android devices.



  • Simple and intuitive user interface
  • Power on/off a device from anywhere by your iOS and android devices
  • Remotely control power strips as many as you like
  • Manage individual power outlet remotely
  • Simple security control
  • Give each power strip a nickname
  • User definable names for each controllable output
  • Set up specified time intervals of each outlet on or off
  • Set up the sequence of the group outlets on or off (forward:1-8 or backward: 8-1)
  • Temperature setting for auto AC fan control
  • Power, current, temperature and humidity monitoring
  • Over current, temperature and humidity alarm setting
  • Ensure the privacy and safety with password
  • Auto PIN rest
  • Support SiP series products
  • Time scheduling on individual outlet to switch on or off (only available in "SiPower Cloud" app)
  • Centralized management (only available in "SiPower Cloud" app)
  • Metal Chassis with removable mounting brackets
  • Heavy duty cord, detachable (IEC 13 to NEMA5-15P)
  • 8 Controllable Receptacles (Front)
  • Button Panel included, to indicate indivdiual outlet status or power on/off each outlet manually
  • On/off switch with built-in circuit breaker
  • ​Network Interface, 1 x RJ45, 1 x RJ11(6P4C), 1 x RJ11(6P2C)

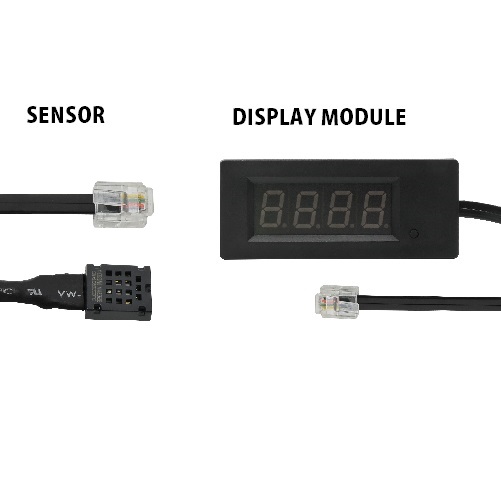

  • Temperature/Humidity Sensor
  • Detachable LED display module







 PRODUCT  INFORMATION

  Model no.   SIP-U2
 Color  Customization
 Material of  Construction  Aluminum shell
 AC POWER /
 SURGE PROTECTION		  Surge Protection  Yes - max. 1020 Joules Rating - Optional
 Voltage  125 Vac
 UL 1449 VPR  L-N 500V
 Duty cycle current  3KA
 Current  12A
 Frequency  Compatibility  50/60 Hz
 Output  Receptacles  NEMA 5-15R
 Outlet numbers  8
 Plug Type  NEMA 5-15P
 Input Cord Length  As order requirement. (As laws and regulations is Max. 4.5M,  Min.1.5M)
 Input Phase  Single-Phase
 CERTIFICATIONS  Certifications  UL 60950-1, 2nd Edition, 2011-12-19
 (Information Technology Equipment - Safety - Part 1: General Requirements)
 CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12
(Information Technology Equipment - Safety - Part 1: General Requirements)0
 RoHS Compliant
