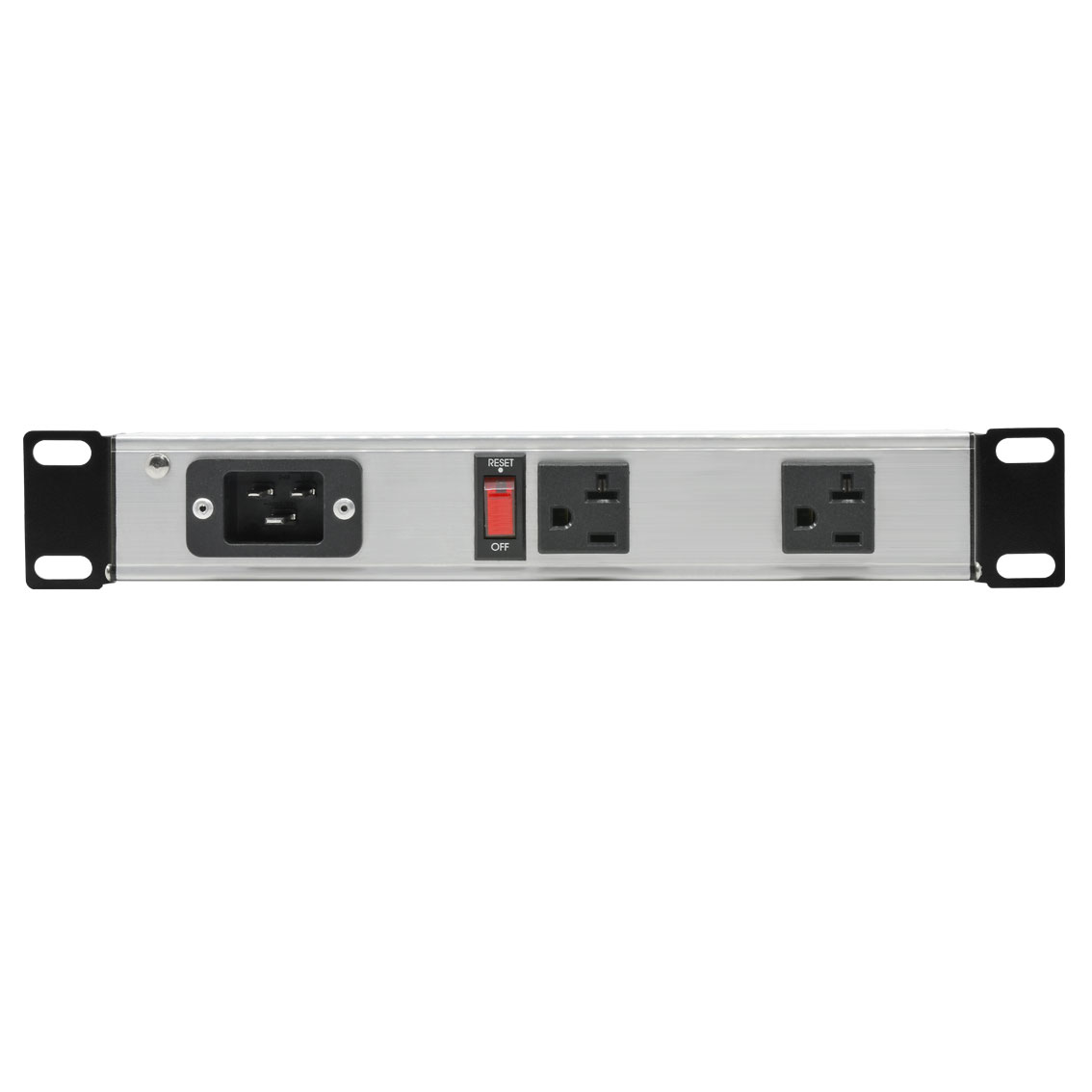

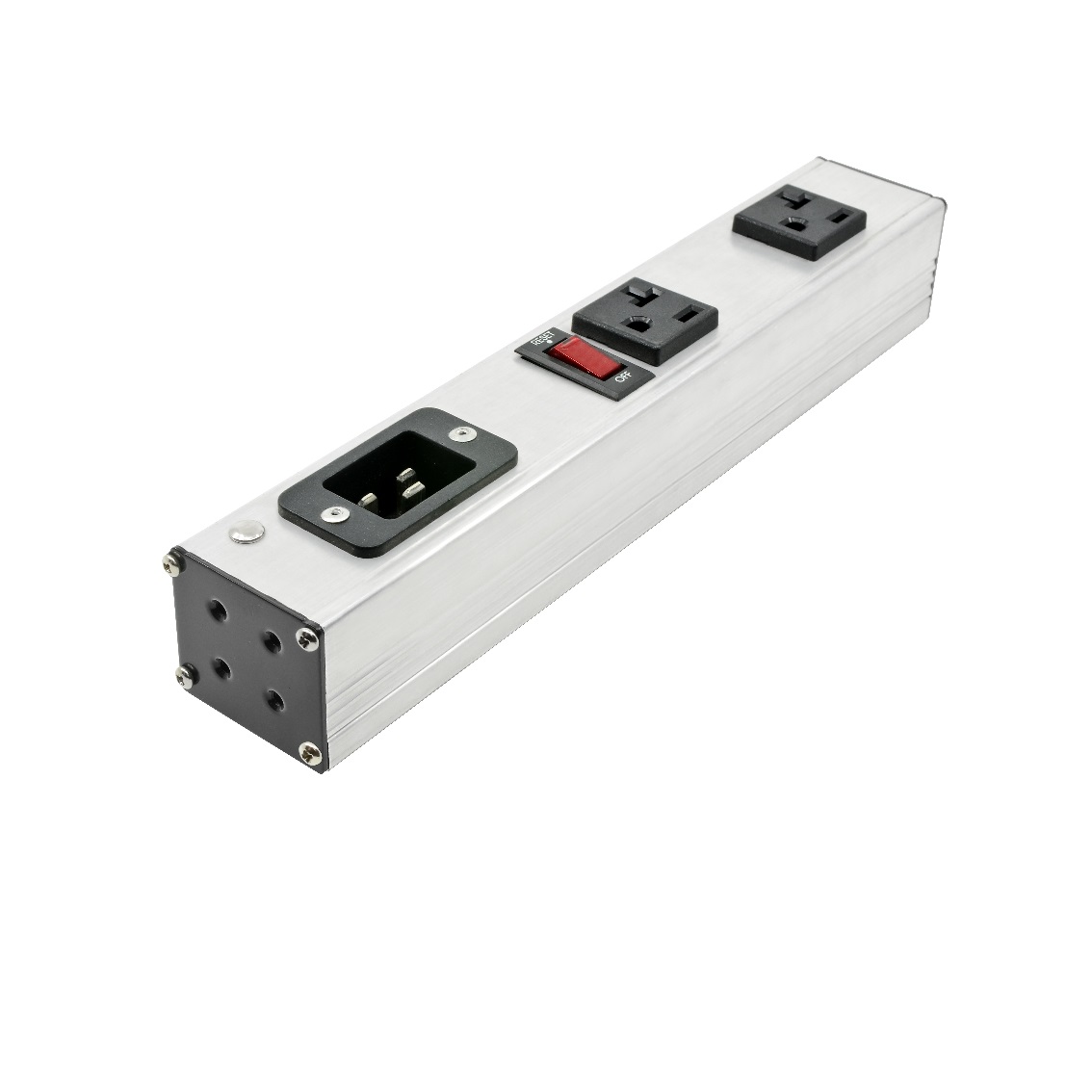

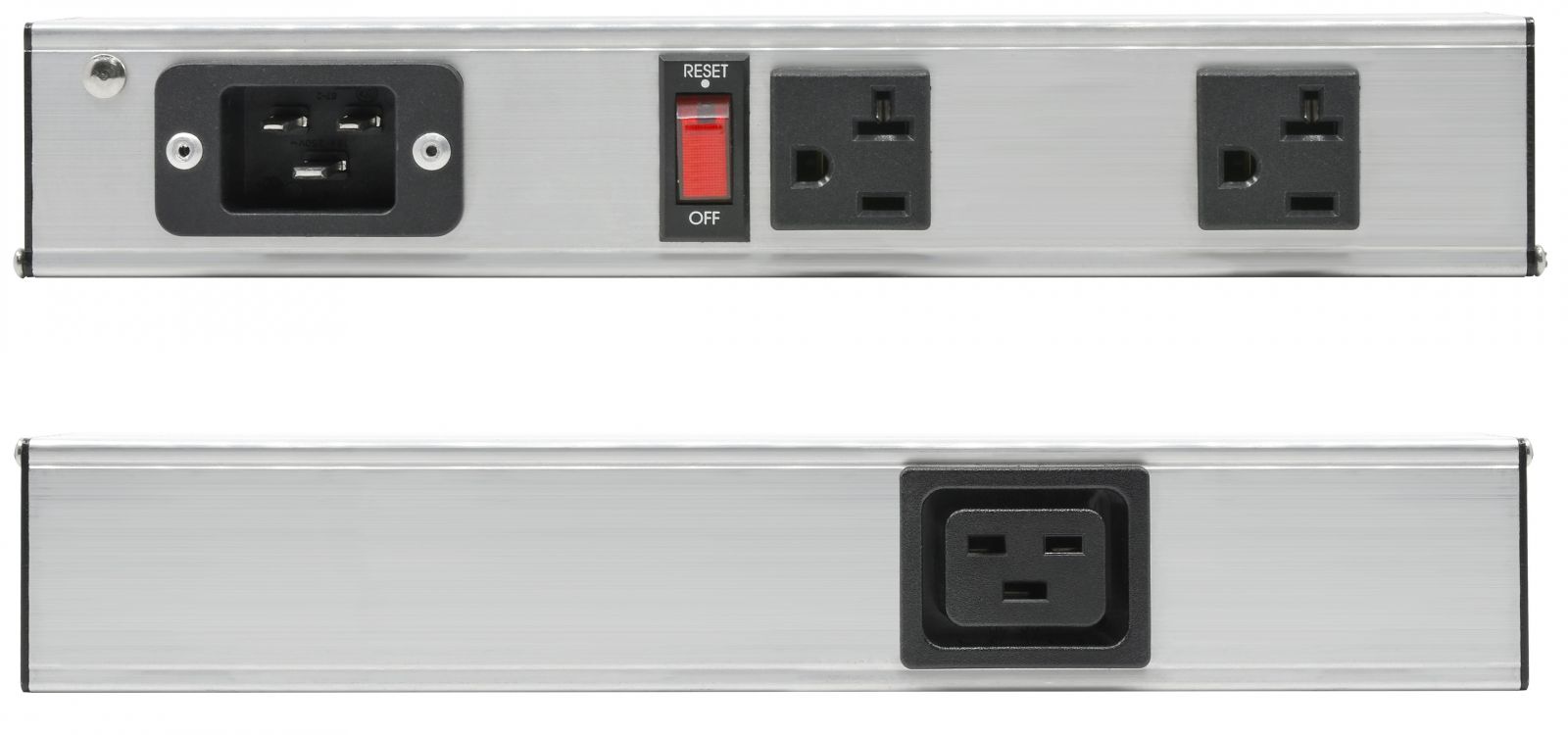

20A Rack & Mountable Solution VPSN-25

VPSN-25
  • IEC or NEMA Outlets Power Strip
  • With master 1 on/off master switch and circuit breaker
  • Direct Plug-in for easy using
  • Aluminum Housing
  • Available Rack and mount power strip

Safety:

  • With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation.
  • With detachable heavy duty cord, avoid the electric wire go off due to wire twisted.

Convenient:

  • Ideally use for horizontally mounted
  • Just plug-in, from 1 outlets change to 2~24 Outlets with 125V working voltage, do not have to worry about the problem of insufficient outlet.
  • The long wire of power strip solution can totally solve the short wire problem of using electronic device.

Appearance:

VPSN-25 is simple, long and easy design, easy sharing more outlets with others and other device, not too much complicated appearance.

 PRODUCT  INFORMATION

 Model no.   VPSN-25
 Color  Customization
 Material of Construction  Aluminum Housing
 Product Dimensions  As spec of order requirement, length Min. 10 inches, Max. 77 inches
 AC POWER /
 SURGE PROTECTION
 Surge Protection  -
 Voltage  125 Vac
 UL 1449 VPR  -
 Duty cycle current  -
 Current  16A
 Frequency Compatibility  50/60 Hz
 Output Receptacles  NEMA 5-20R + IEC C19 (OPT)
 Outlet numbers  2~24
 Plug Type  NEMA 5-20P + C19 Outlet
 Input Cord Length   Customization. As laws and regulations is Max. 4.5M,  Min.1.5M
 Input Phase  Single-Phase
 CERTIFICATIONS  Certifications  UL 60950-1, 2nd Edition, 2011-12-19
 (Information Technology Equipment - Safety - Part 1: General Requirements)
 CAN/CSA C22.2 No. 60950-1-07, 2nd Edition,
  2011-12 (Information Technology Equipment - Safety - Part 1: General Requirements)
 RoHS Compliant

1 Master On/off switch with built-in circuit breaker
