7 Outlets with 2 Swivel Receptacles 09-010

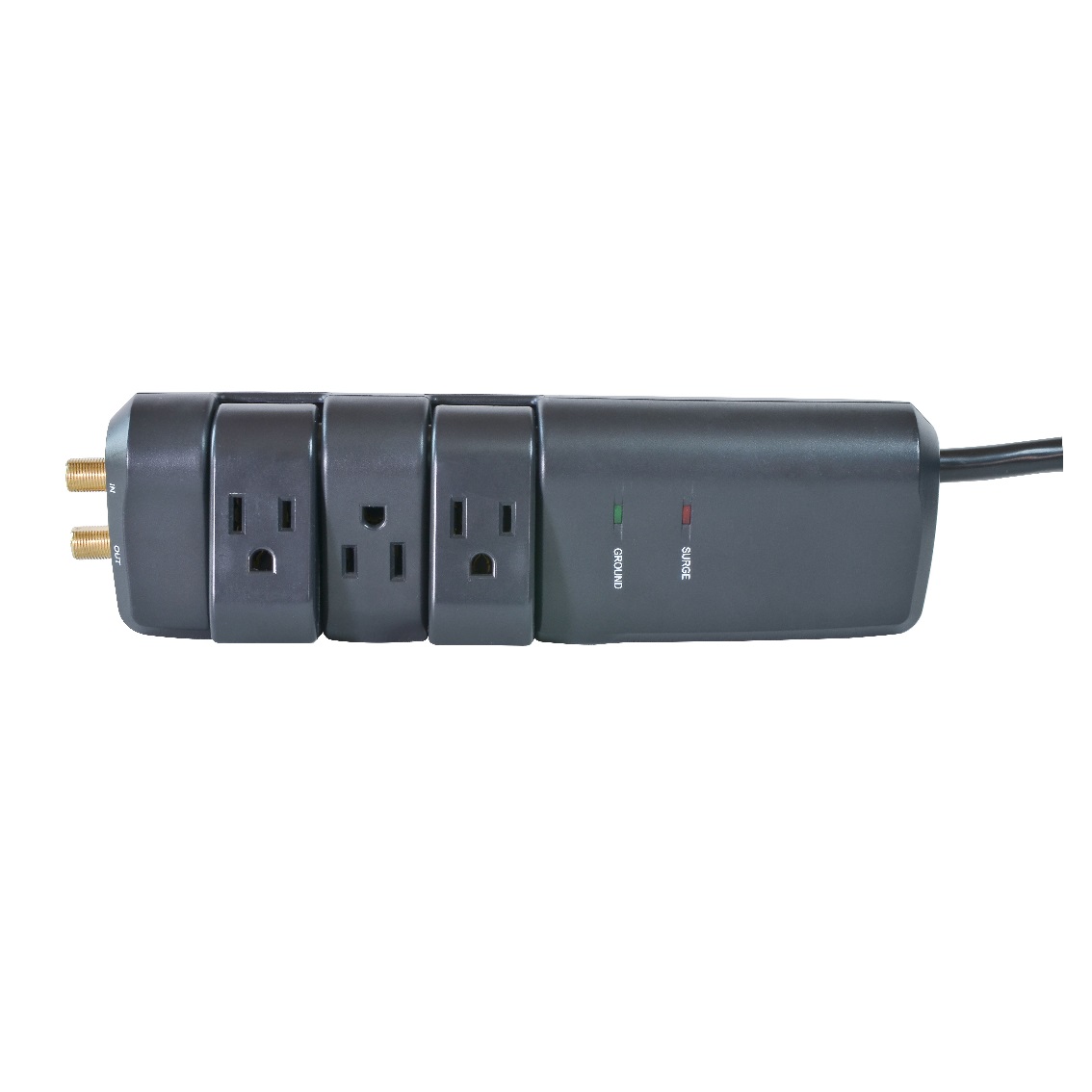

7 Outlet Surge Protector includes 2 swivel receptacles
  • The smallest 7 outlet surge protector in the market

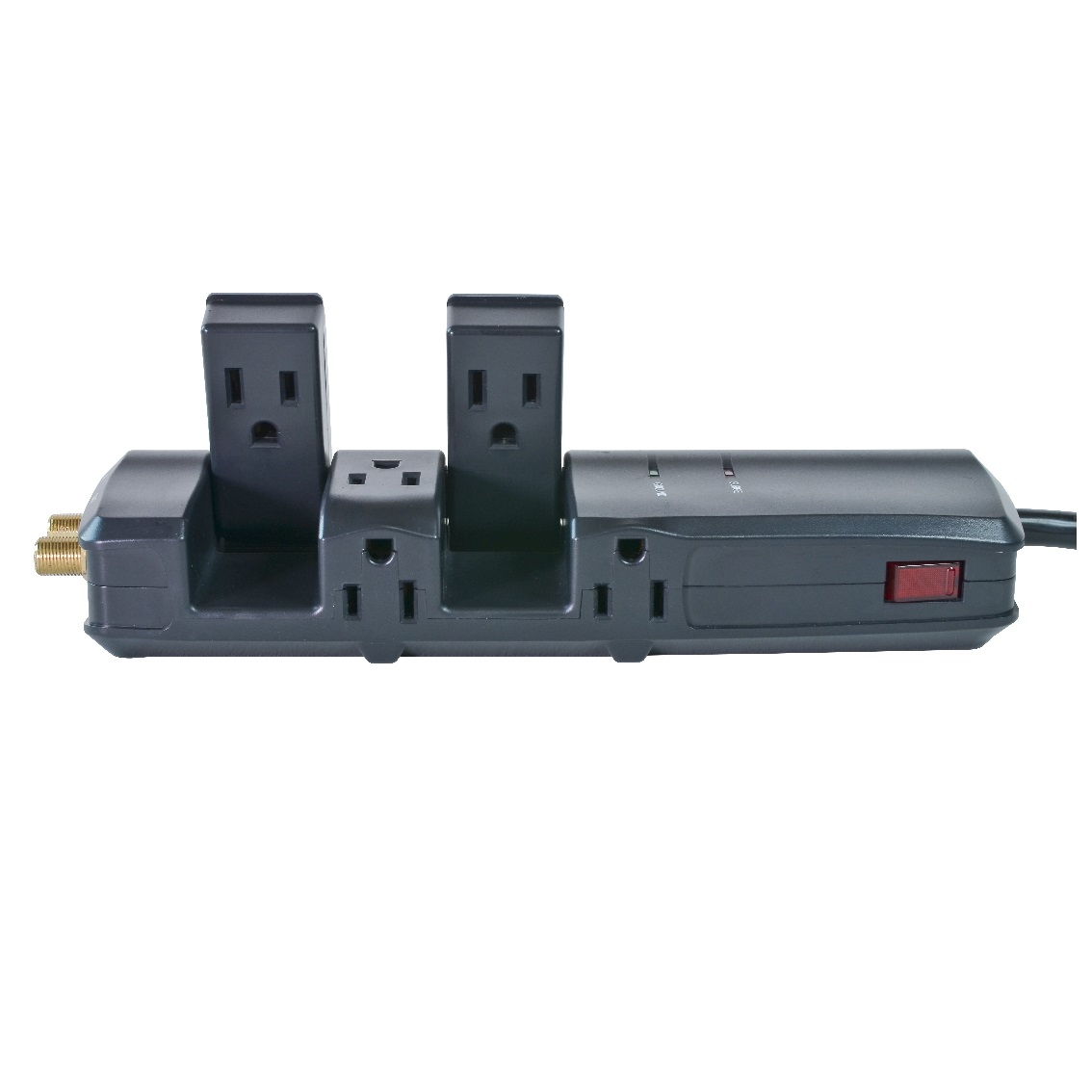

  • 2 Swivel Outlets, turn to the using direction
  • Direct Plug-in for easy using with 125V working voltage
  • With Surge protection indicator light
  • Phone/Fax, Network, Coaxial Protection - Optional




Safety:

  • With Surge protection indicator light, and master On/off switch and circuit breaker, enhance Safety identification level, easily aware of product working situation.
  • With heavy duty cord, avoid the electric wire go off due to wire twisted.
  • It’s optional for Phone/Fax, Network, Coaxial Protection, give you more safer life.

 Convenient:

  • Just plug-in, from 1 outlets change to 7 Outlet Power Block with swivel outlets with 125V working voltage, do not have to worry about the problem of insufficient outlet.
  • For swivel outlet, can turn to the using direction simply for share more outlets to other electronic equipment, not only can rise the outlets utility but also the swivel structure can decrease electric fire happen. ( which may caused by the wire joint twisted when electronic device use in different direction.)
  • Combined with Phone/Fax, Network, Coaxial (optional) together, only need one power strip, then can reach your protection and utility purpose, not by buying 3 or 4 protection devices to do it.

Appearance:

  • 09-010 is compact, strong, can fit in any place, you can use your laptop, mobile, camera battery charging and other electronic devices in same time and also share with others.
  • 09-010 has US Patented design. Only in Rite-Tech



7 Outlets Surge Protector with 2 Swivel Outlets   *US Patented design

 PRODUCT  INFORMATION

 Model no.   09-010-xMS   (x can be 4 to 7)
 Color  Customization
 Material of Construction  Plastic
 AC POWER /
 SURGE PROTECTION
 Surge Protection  Yes - max. 2100 Joules Rating
 Voltage  125Vac
 UL 1449 VPR  L-N 400V, L-G 500V, N-G 500V
 Duty cycle current  3KA
 Current  15A
 Frequency Compatibility  60 Hz
 Output Receptacles  NEMA 5-15R
 Outlet numbers  7 (with 2 Swivel Outlets)
 Plug Type  NEMA 5-15P
 Input Cord Length   1.5 FT to 25 FT
 Input Phase  Single-Phase
 LAN CIRCUITS PROTECTION  Wires Protected  Pins 1, 2, 3, & 6
 Connectors  RJ45 shared with Telco
 Clamping Level  6.0 - 8.2 Vdc
 TELCO PROTECTION  Connectors  2 RJ11 or RJ45
 Clamping Level  6.0 - 8.2 Vdc

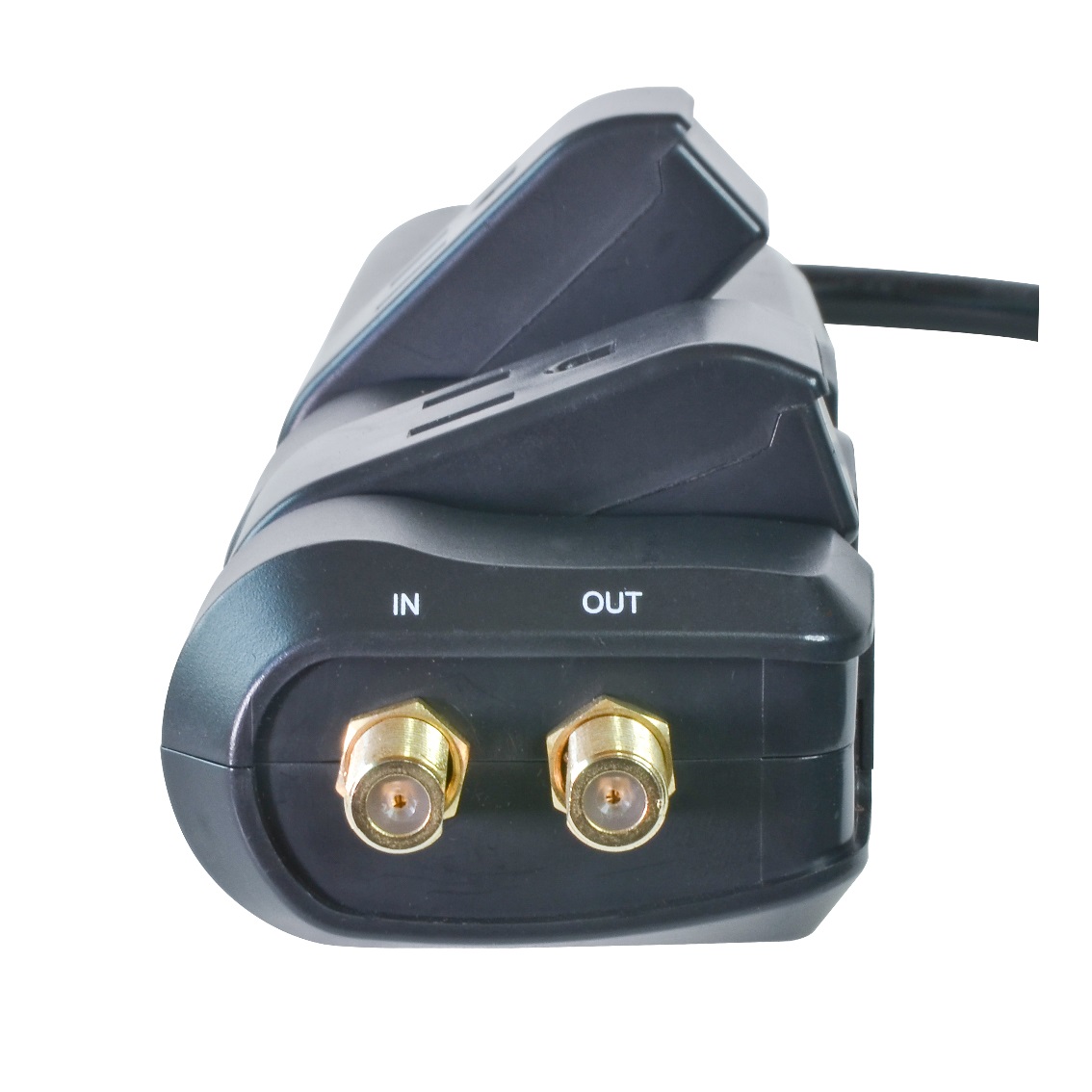

 UNIVERSAL COAXIAL PROTECTION  Connections   F type 2 or 4
 CERTIFICATIONS  Certifications  Tested to UL 1363, Third Edition, Latest Revision Dated October 13, 2009
 UL 1449, Third Edition, Latest Revision Dated September 4, 2009.
 CSA C22.2 No. 21-95, Eighth Edition
 C22.2 No. 8-M1986, Electromagnetic Interference (EMI) Filters, Fifth Edition
 CSA Electrical Technical Information Letters A-24,
 dated October 31, 1995 and I-11B, dated May 13, 1986.
 RoHS Compliant

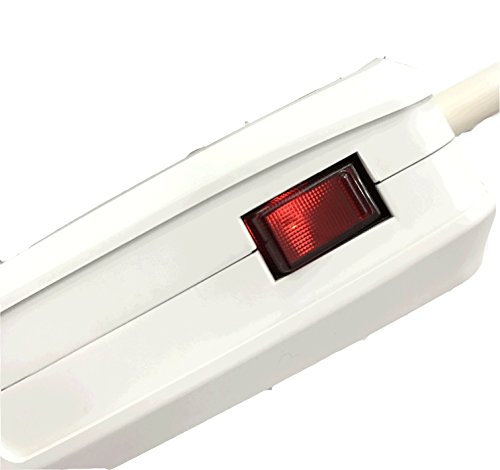

1 Master On/off switch with built-in circuit breaker

*  Phone/Fax Protection - optional

   Network Protection - optional

   Coaxial Protection - optional
