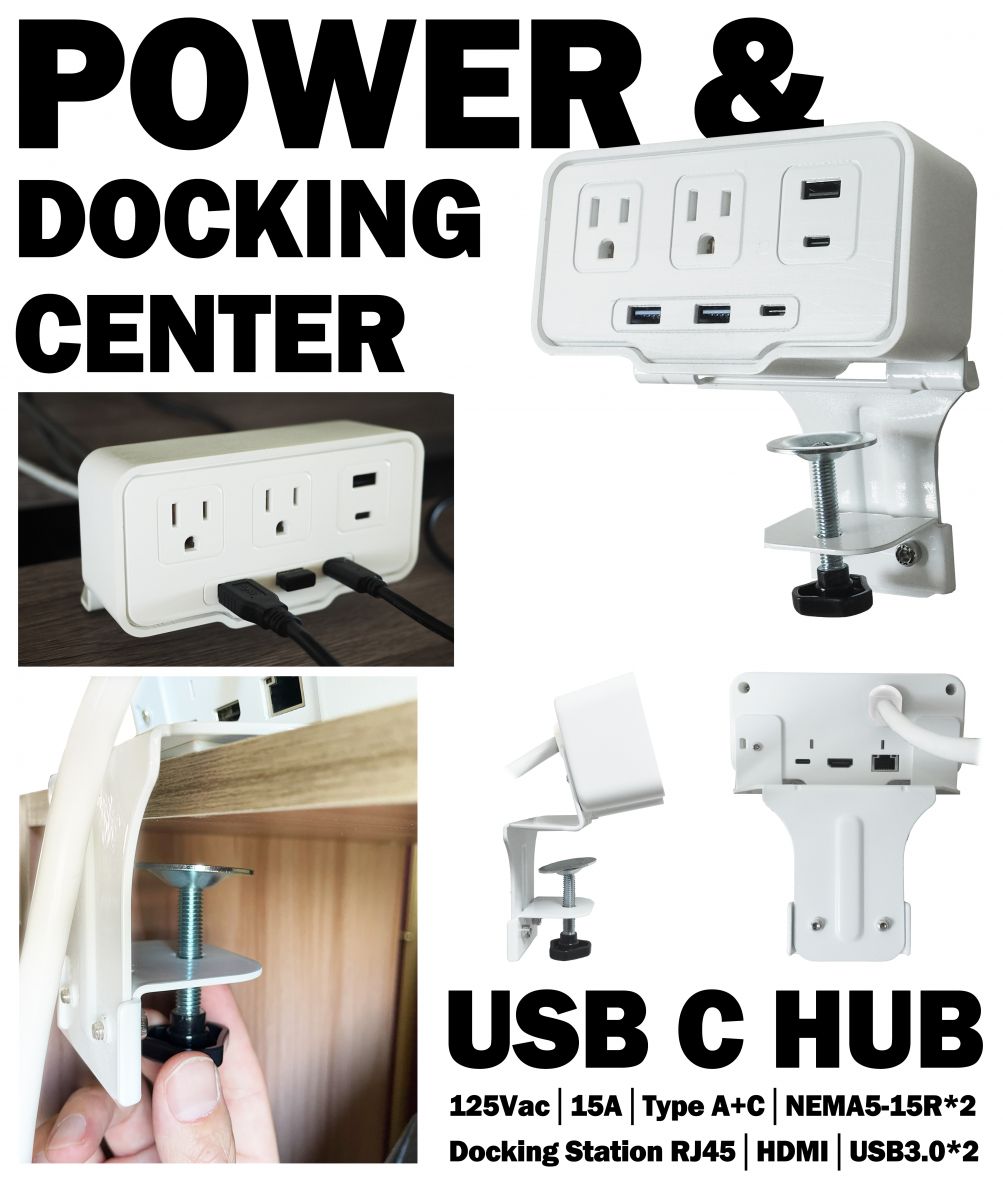

Type C Power Docking Station 21-002 (Type C HUB)
Type C & Docking Station- Direct Plug-in for easy using with 125Vac working voltage
- Type C power charging (20 W)
- With Docking Station
It's a best power solution, also a docking station.

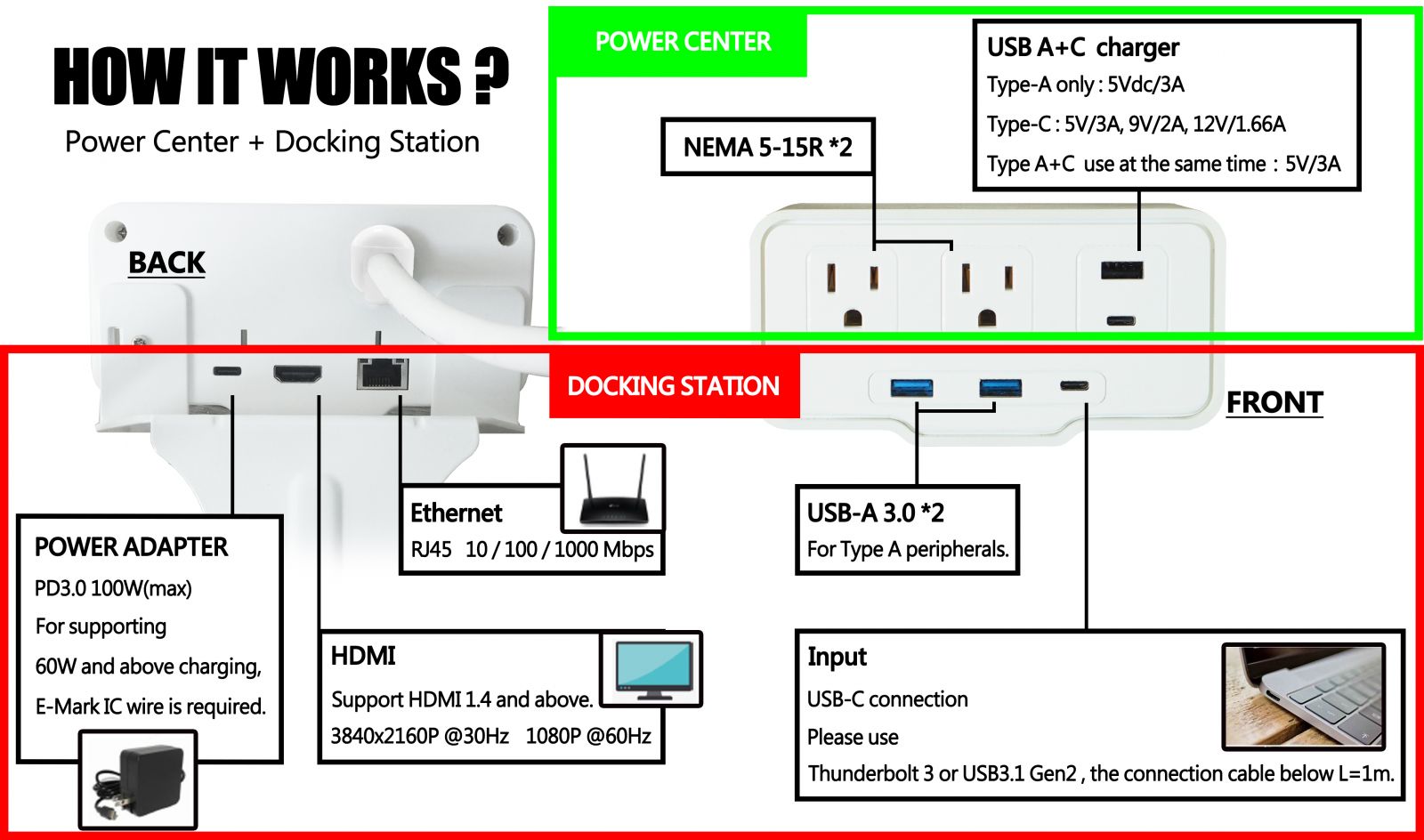

Power Center + Docking Station = 21-002
Power Center:
- NEMA 5-15R *2
- Type A+C charger:
Type-A only : 5Vdc/3A
Type-C : 5V/3A, 9V/2A, 12V/1.66A
Type A+C use at the same time：5V/3A
max. 20W

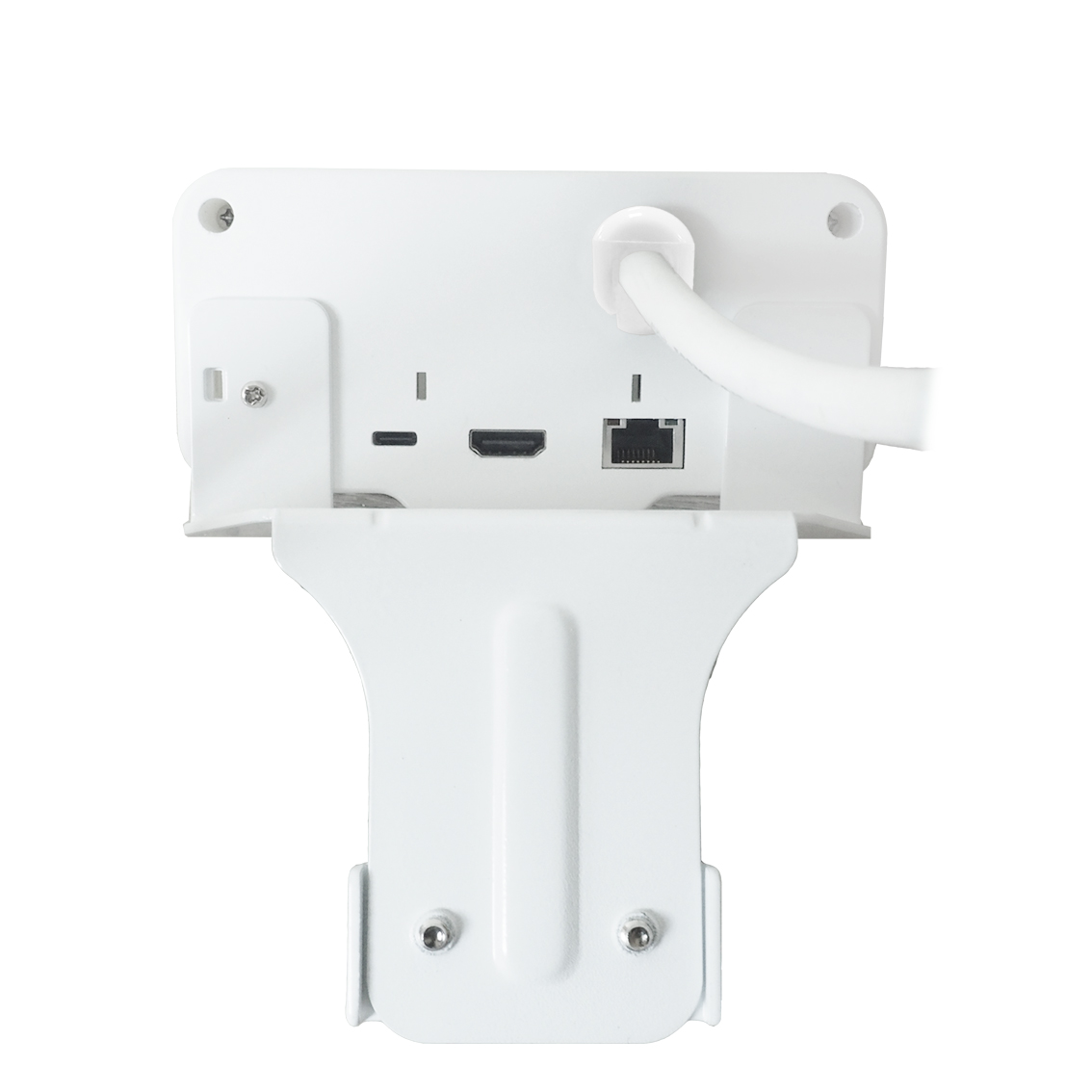

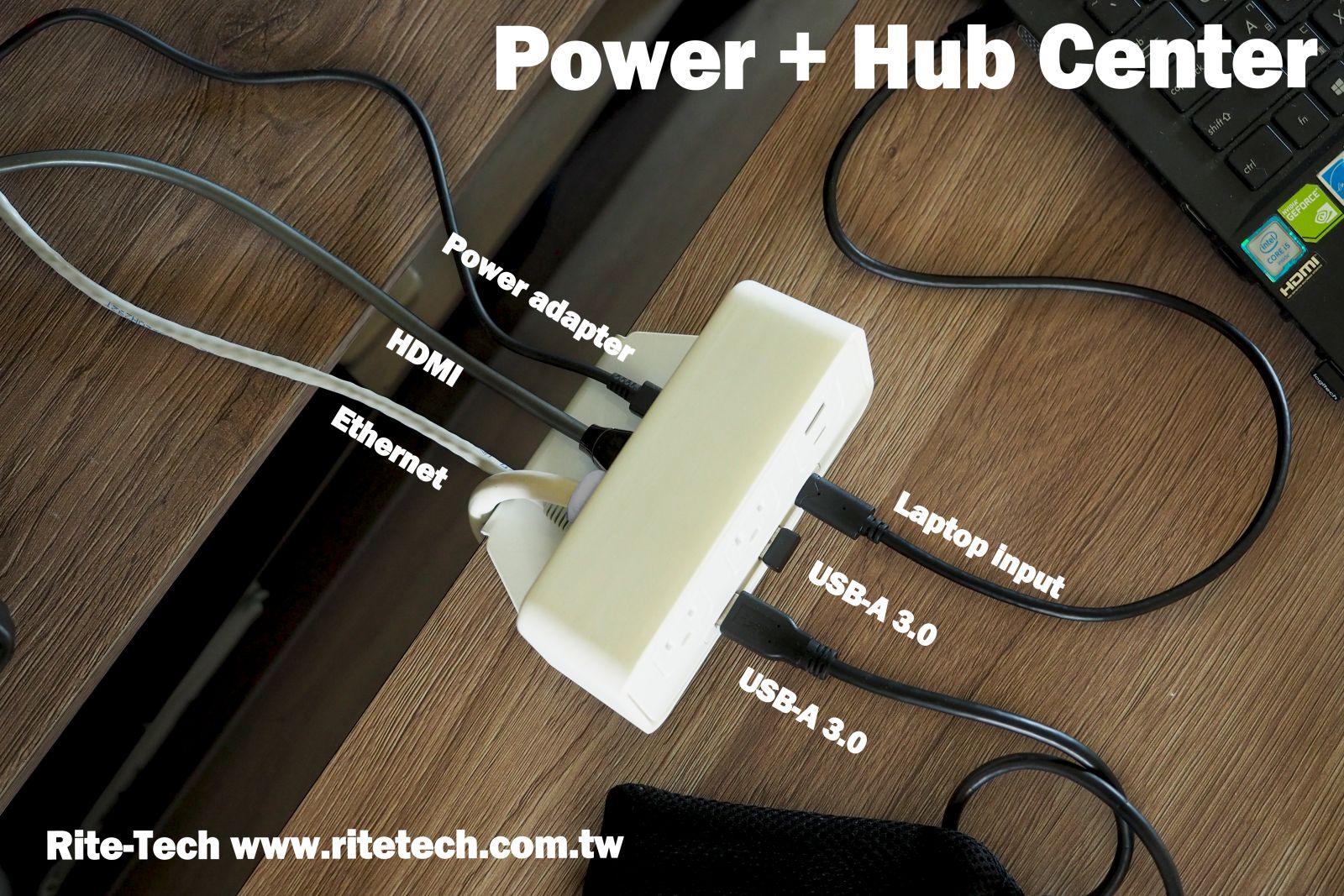

Docking Station:
- Power Adapter: Power In -Type-C , PD3.0 , 100W (max) / for supporting 60W and above charging, E-Mark IC wire is required.
- HDMI: Support HDMI 1.4 and above. 3840x2160P@30Hz / 1080P@60Hz
- Ethernet: RJ45 10/100/1000Mbps
- USB-A 3.0 *2: For Type A peripherals
- Input: USB-C connection- please use Thunderbolt 3 or USB 3.1 Gen2, the connection cable below L=1M.
|
PRODUCT INFORMATION |
Model no. |
21-002 |
|
Color |
Customization |
|
|
Material of Construction |
Plastic |
|
|
Product Dimensions |
for more information, please contact with us. |
|
|
AC POWER / |
Surge Protection |
None |
|
Voltage |
125 Vac |
|
|
UL 1449 VPR |
- |
|
|
Duty cycle current |
- |
|
|
Current |
15A |
|
|
Frequency Compatibility |
60 Hz |
|
|
Output Receptacles |
NEMA 5-15R |
|
|
Outlet numbers |
2 |
|
|
Plug Type |
NEMA 5-15P |
|
|
Input Cord Length |
Customization |
|
|
Input Phase |
- |
|
|
USB CHARGING |
USB Spec |
Type-A only : 5Vdc/3A Type-C : 5V/3A, 9V/2A, 12V/1.66A Type A+C use at the same time：5V/3A max. 20W |
|
CERTIFICATIONS |
Certifications |
UL962A (On Going) |
