Safety:
Convenient:
Appearance:

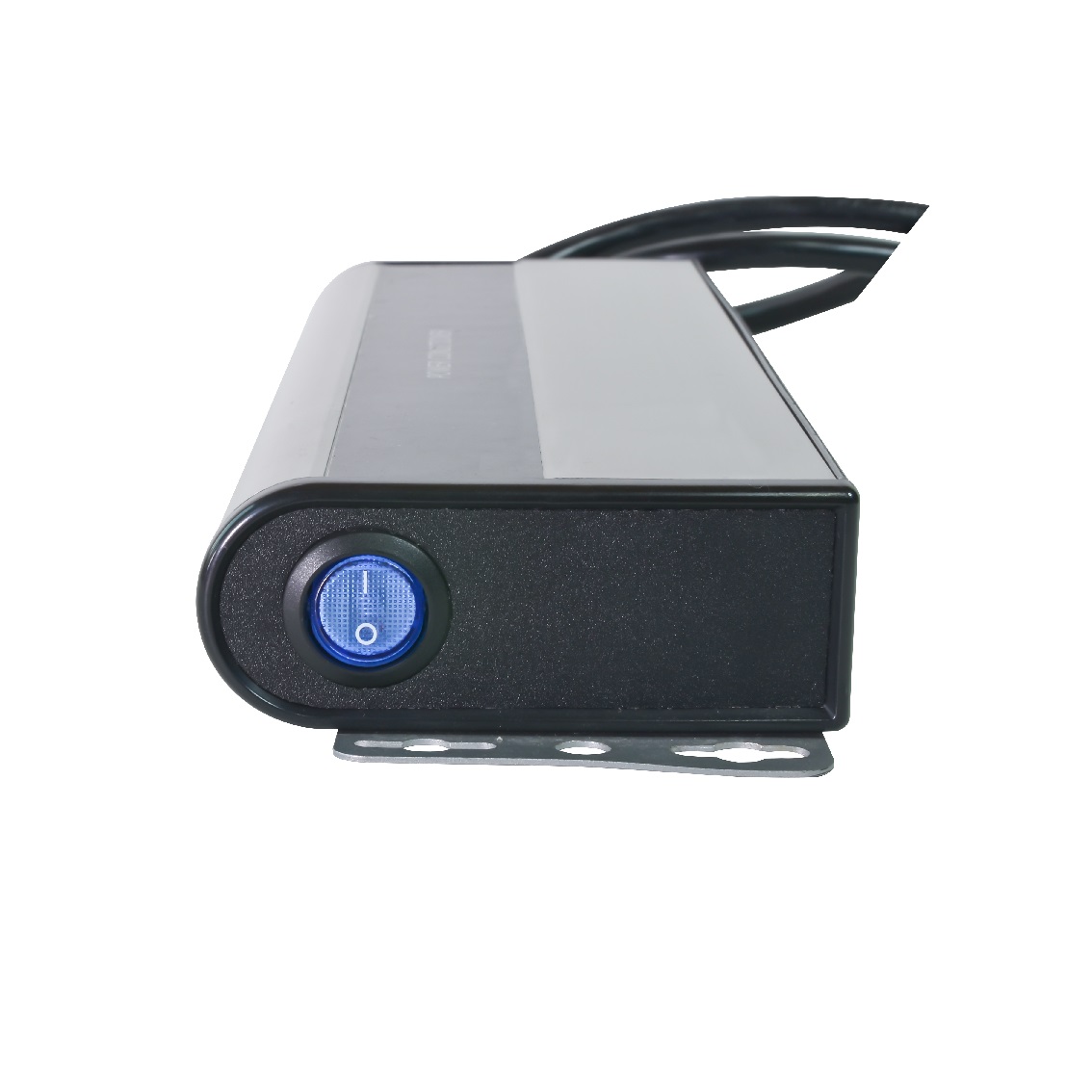

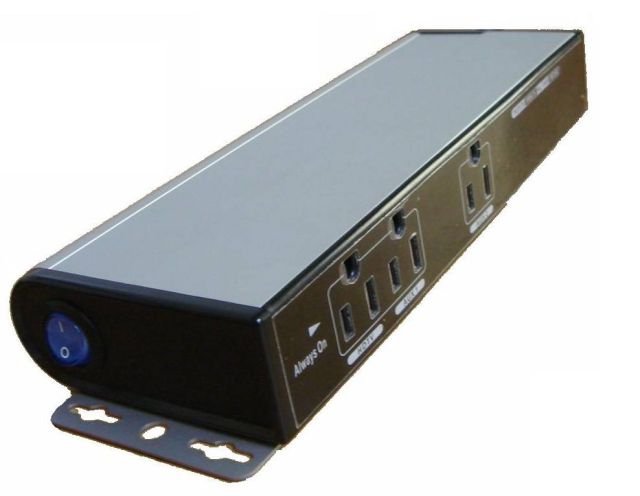

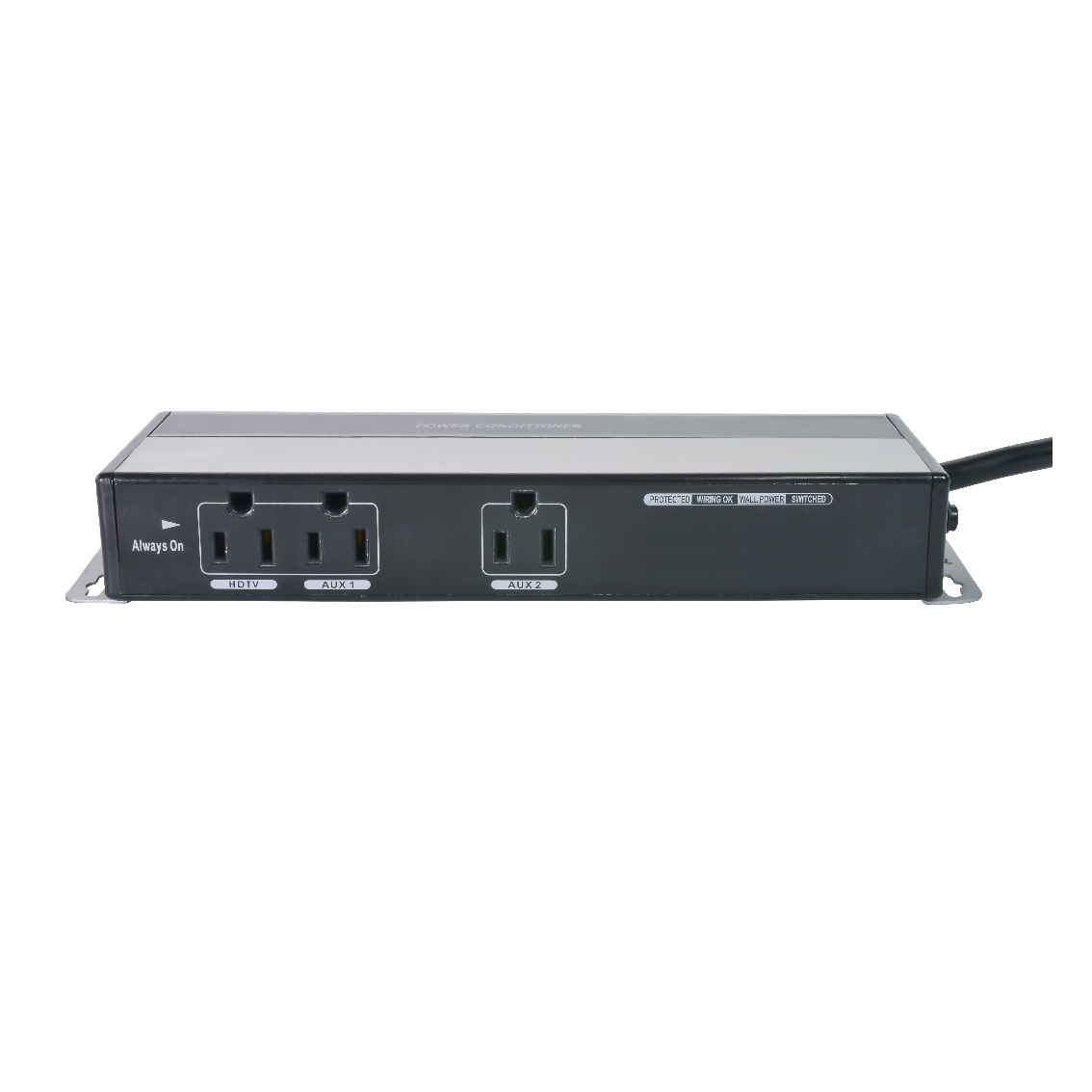

06-047 is simple, compact and easy design, not too much complicated appearance.
PRODUCT INFORMATION |
Model no. | 06-047 |
Color | Customization, | |
Material of Construction | Aluminuml | |
Product Weight | 0.68KGs | |
Product Dimensions | 255 mm x 92 mm x 38 mm | |
AC POWER / SURGE PROTECTION |
Surge Protection | Yes - 4200 Joules Rating |
Voltage | 125Vac | |
UL 1449 VPR | L-N 330V | |
Duty cycle current | 3KA | |
Current | 12A | |
Frequency Compatibility | 60 Hz | |
Output Receptacles | NEMA 5-15R | |
Outlet numbers | 3 (1 outlet alwasys on bank and 2 outlets switched bank) | |
Plug Type | NEMA5-15P | |
Input Cord Length | As order requirement. (As laws and regulations is Max. 4.5M, Min.1.5M) - Fixed or Detachable input cord |
|
Input Phase | Single-Phase | |
CERTIFICATIONS | Certifications | Tested to UL 60950-1, 1st Edition, 2007-10-31 |
CSA C22.2 No. 60950-1-03, 1st Edition, 2006-07 | ||
UL 1283, Fifth Edition | ||
UL 1449, Third Edition | ||
C22.2, No. 8-M1986, Fourth Edition and Canadian Technical Information Letter I-11B and A-24 | ||
RoHS Compliant |
