Safety:
Convenient:
Appearance:
08-030S is simple and easy design, not too much complicated appearance.

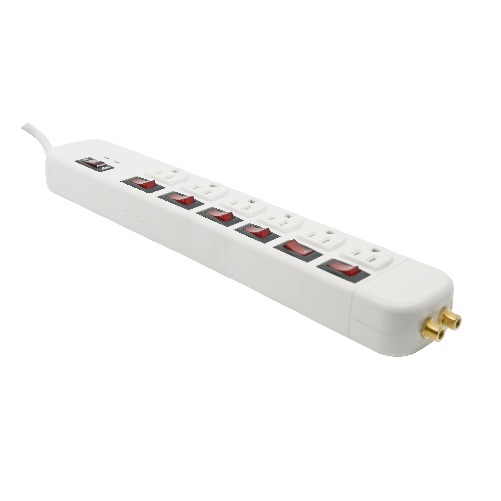

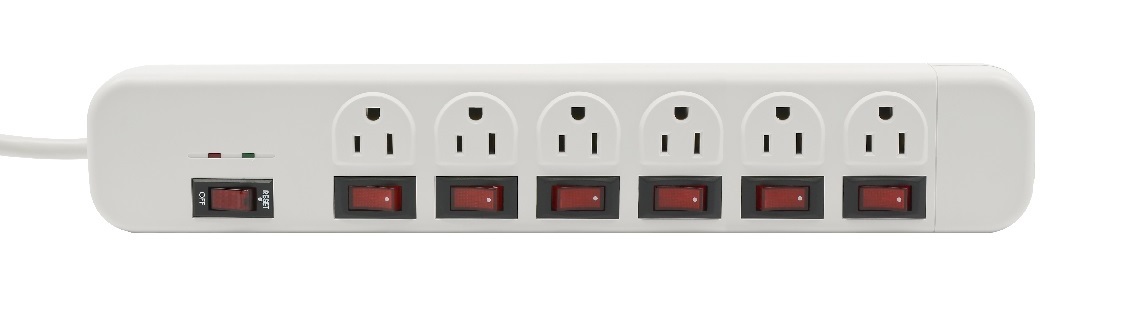

6 Switched Outlets Surge Protector
PRODUCT INFORMATION |
Model no. | 08-030-S | 08-030-S-xMS (x can be 4 to 7) |
Color | Customization | Customization | |
Material of Construction | Plastic | Plastic | |
AC POWER / SURGE PROTECTION |
Surge Protection | No | Yes - max. 2100 Joules Rating |
Voltage | 125Vac | 125Vac | |
UL 1449 VPR | No | L-N 400V, L-G 500V, N-G 500V | |
Duty cycle current | No | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 60 Hz | 60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 6 | 6 | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | 1.5 FT to 15 FT | 1.5 FT to 15 FT | |
Input Phase | Single-Phase | Single-Phase | |
LAN CIRCUITS | Wires Protected | Pins 1, 2, 3, & 6 | Pins 1, 2, 3, & 6 |
Connectors | RJ-45 Shared with Telco | RJ-45 Shared with Telco | |
Clamping Level | 6.0 - 8.2 Vdc | 6.0 - 8.2 Vdc | |
TELCO PROTECTION | Connectors | 2 or 3 RJ11 or RJ45 | 2 or 3 RJ11 or RJ45 |
Clamping Level | 6.0 - 8.2 Vdc | 6.0 - 8.2 Vdc | |
UNIVERSAL COAXIAL PROTECTION | Connections | F type 2 or 4 | F type 2 or 4 |
CERTIFICATIONS | Certifications | Tested to UL 1363, Third Edition | Tested to UL 1363, Third Edition, latest revision dated August 27, 2008 |
CSA C22.2 No. 21-95, Eighth Edition | UL 1449, Third Edition, Dated September 29, 2006. | ||
- | CSA C22.2 No. 21-95, Eighth Edition | ||
- | C22.2 No. 8-M1986, Electromagnetic Interference (EMI) Filters, Fifth Edition; |
||
- | CSA Electrical Technical Information Letters A-24, dated October 31, 1995 and I-11B, dated May 13, 1986. |
||
RoHS Compliant | RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker and 6 Individual switches to each outlet
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
