Safety:
Convenient:
Appearance:

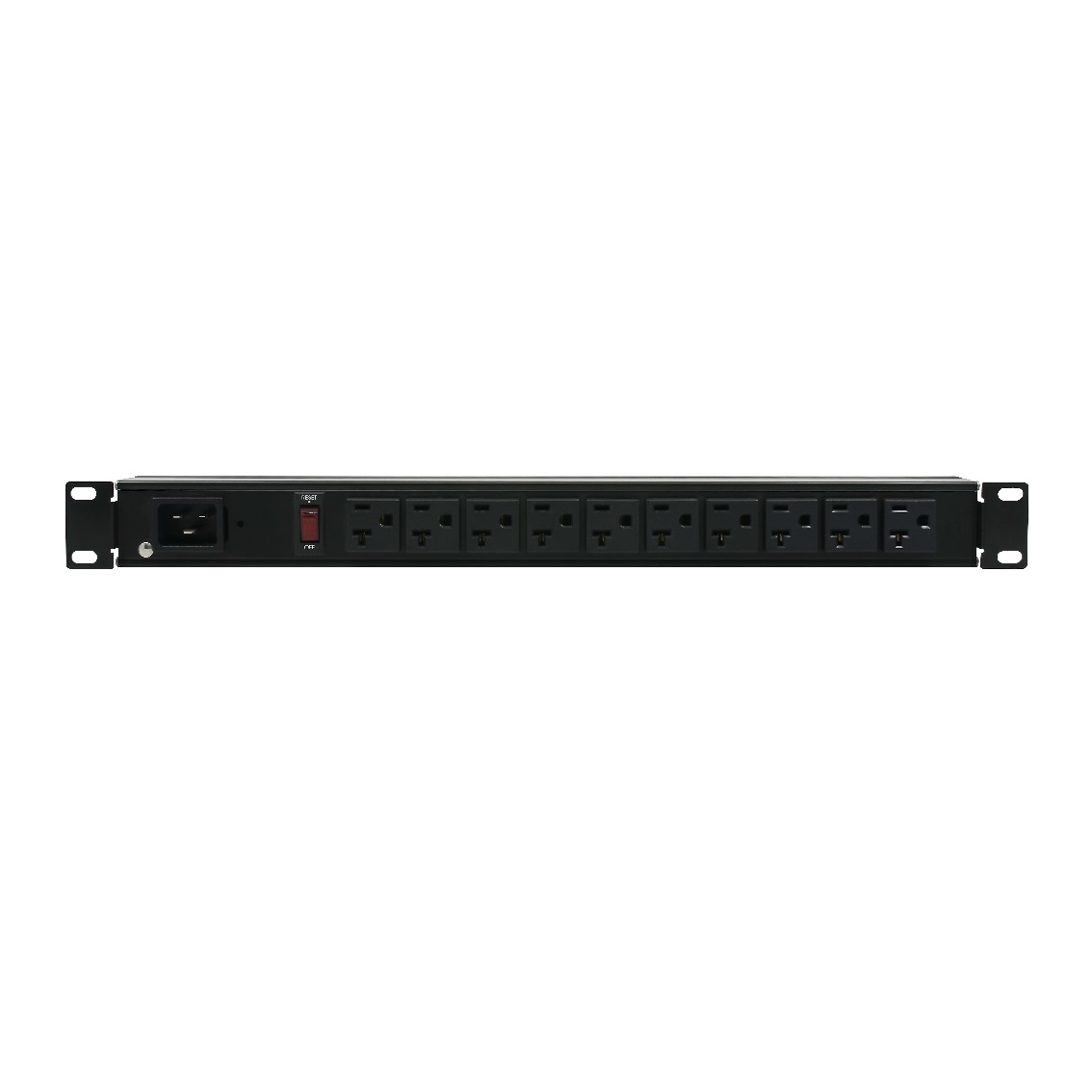

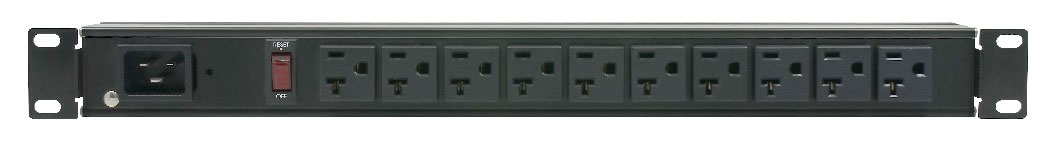

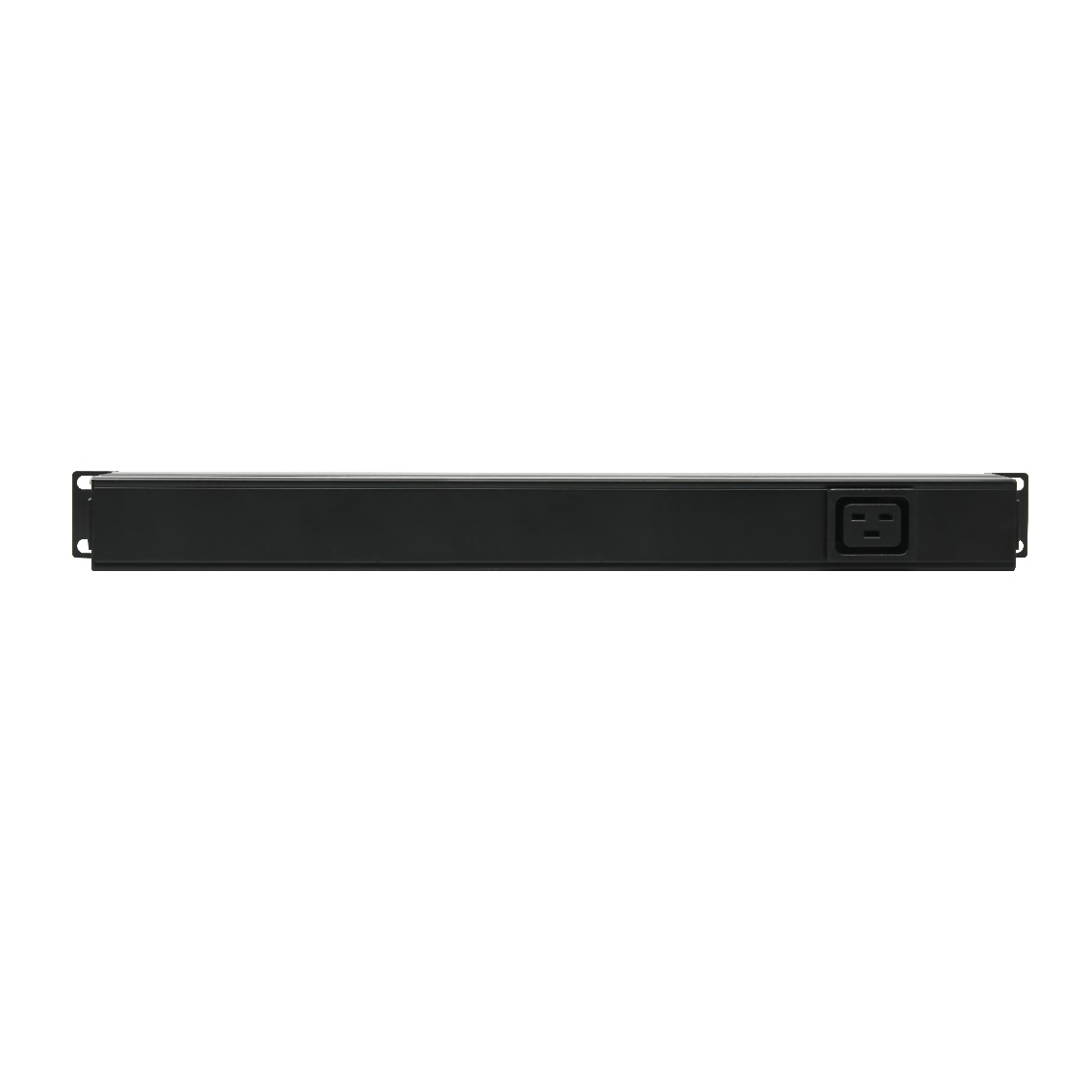

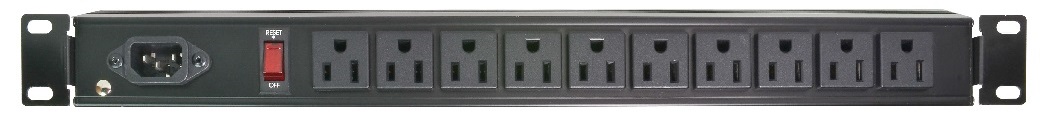

12-005 is simple, long and easy design, easy sharing more outlets with others and other device, not too much complicated appearance.
|
PRODUCT INFORMATION |
Model no. | 12-005-15 , 12-005-20 |
| Color | Customization | |
| Material of Construction | Aluminum Housing | |
| Product Dimensions | 482.60 mm x 49.5 mm x 44 mm | |
| AC POWER / SURGE PROTECTION |
Surge Protection | - |
| Voltage | 125 Vac | |
| UL 1449 VPR | - | |
| Duty cycle current | - | |
| Current | 12A or 16A | |
| Frequency Compatibility | 50/60 Hz | |
| Output Receptacles | NEMA 5-15R + IEC C13 (OPT) or NEMA 5-20R + IEC C19 (OPT) | |
| Outlet numbers | 10 + 1 (IEC C13 Optional) or 10 + 1 (IEC C19 Optional) | |
| Plug Type | NEMA 5-15P + C13 Outlet or NEMA 5-20P + C19 Outlet | |
| Input Cord Length | Customization. As laws and regulations is Max. 4.5M, Min.1.5M | |
| Input Phase | Single-Phase | |
| CERTIFICATIONS | Certifications | Tested to UL60950-1 (USA) |
| CAN/CSA C22.2 No. 60950-1-07 (Canada) | ||
| RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
