Time Switcher Distribution Unit  13-026

Time Switcher Distribution Unit
  • Direct Plug-in for easy using with 125V working voltage
  • With master On/off switch


Safety:

  • With timer switcher, no more worry about long time charging or long time device using and over heat issue.
  • With master On/off switch indicator light, enhance Safety identification level, it is more safer when its working.

Convenient:

The Time Switcher Distribution Unit, Non-Timed on the front panel, timed to alternate power between group A and group B by every 15 mins.

Appearance:

Matte black surface blasting, small and neat appearance, it's good to enhance the overall design quality when combined with furniture.


17.78 cm (L) x 15.57 cm (D) x 1U, 4.55cm (H)





 PRODUCT  INFORMATION

 Model no.   13-026
 Color  Customization
 Material of  Construction  1U Metal Chassis with built-in mount means
 Product  Dimensions  17.78 mm x 15.57 mm x1U, 4.55 mm
 AC POWER /
 SURGE PROTECTION
 Surge Protection  -
 Voltage  125 Vac
 UL 1449 VPR  -
 Duty cycle current  -
 Current  12A
 Frequency  Compatibility  50/60 Hz
 Output  Receptacles  NEMA 5-15R duplex receptacles
 Outlet numbers  6
 Plug Type  NEMA 5-15P + IEC C13
 Input Cord Length  As order requirement. (As laws and regulations is Max. 4.5M,  Min.1.5M)
 Input Phase  Single-Phase
 CERTIFICATIONS  Certifications  Tested to UL60950-1, 2nd Edition, 2011-12-19
 CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12
 RoHS Compliant

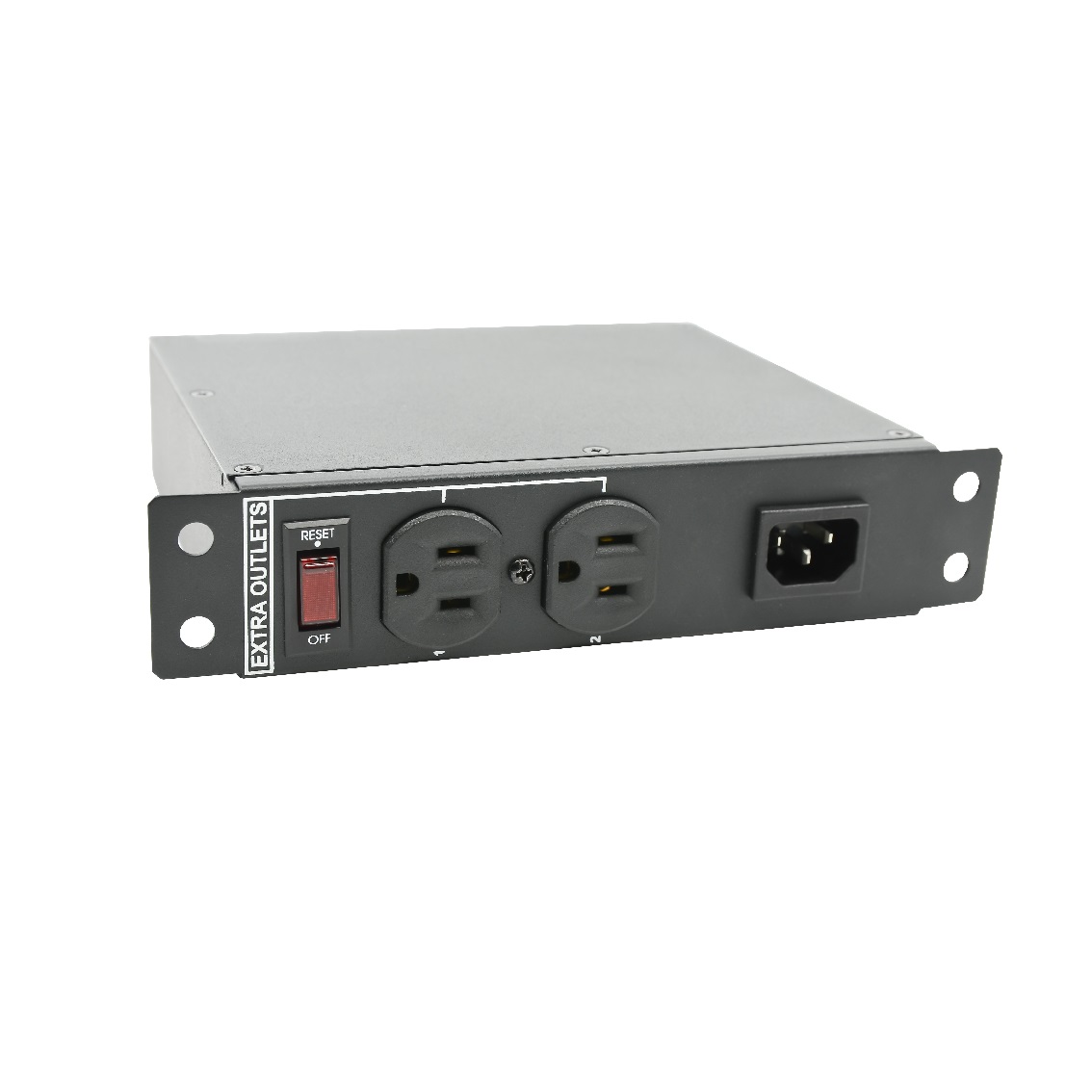

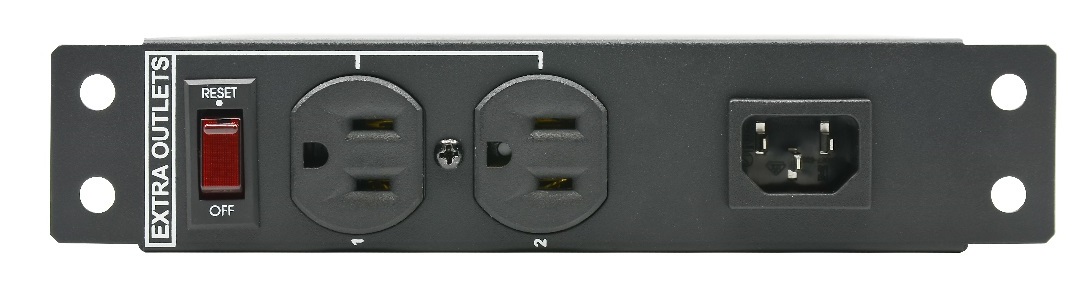

* - 1 Duplex Non-Timed on the front panel

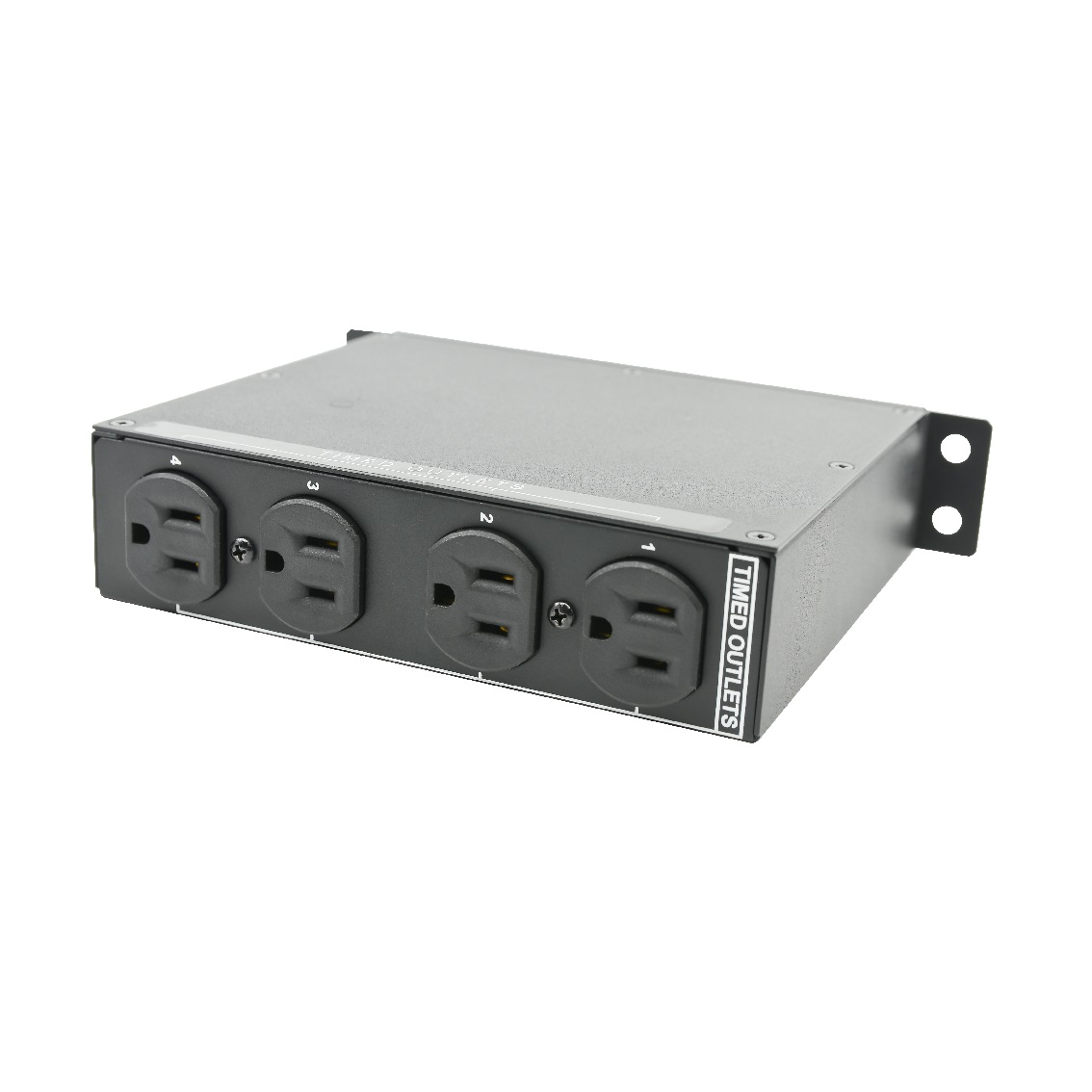

  - 2 Duplexes Timed to alternate power between group A and group B by every 15 mins.
