Safety:
Convenient:
Appearance:

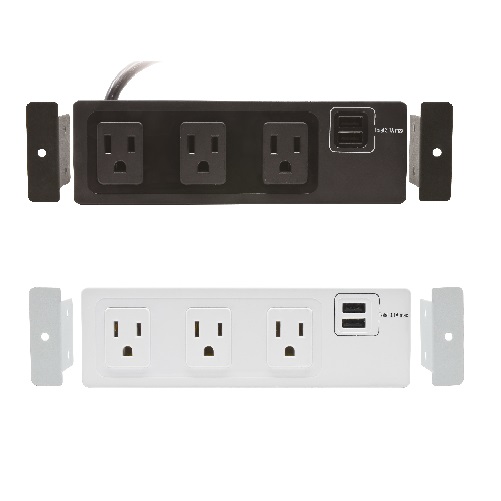

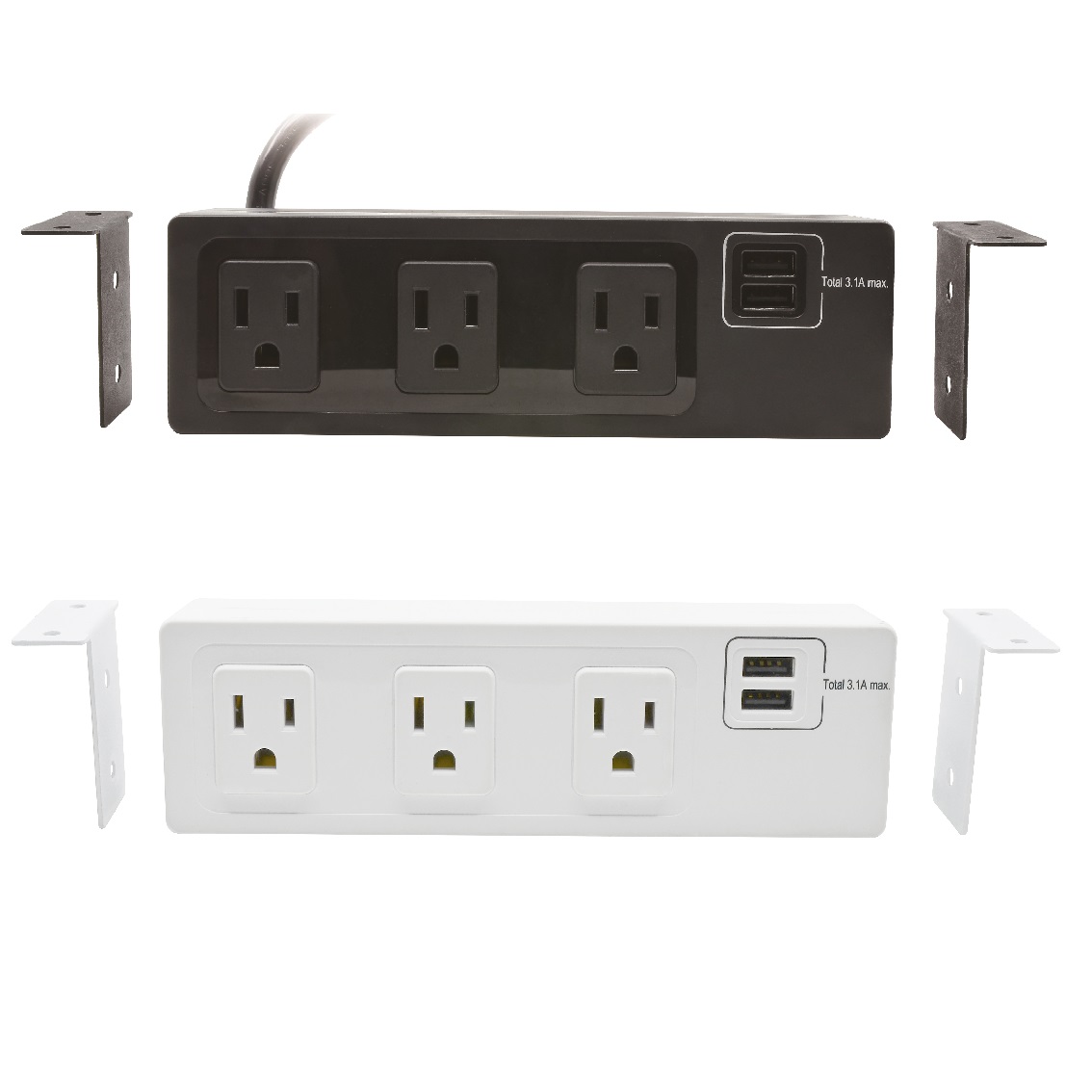

PRODUCT INFORMATION |

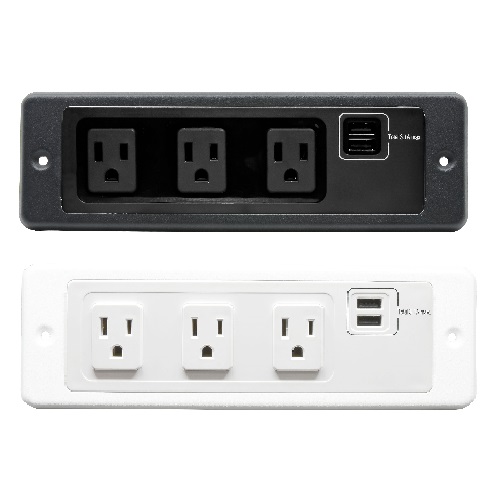

Model no. | 15R-015U | 15R-015US |
Color | Customization | Customization | |
Material of Construction | Plastic | Plastic | |

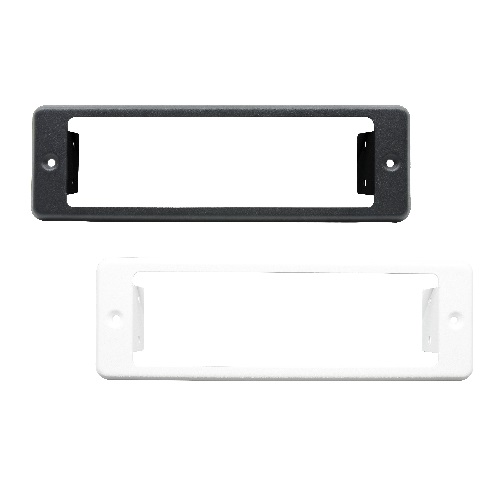

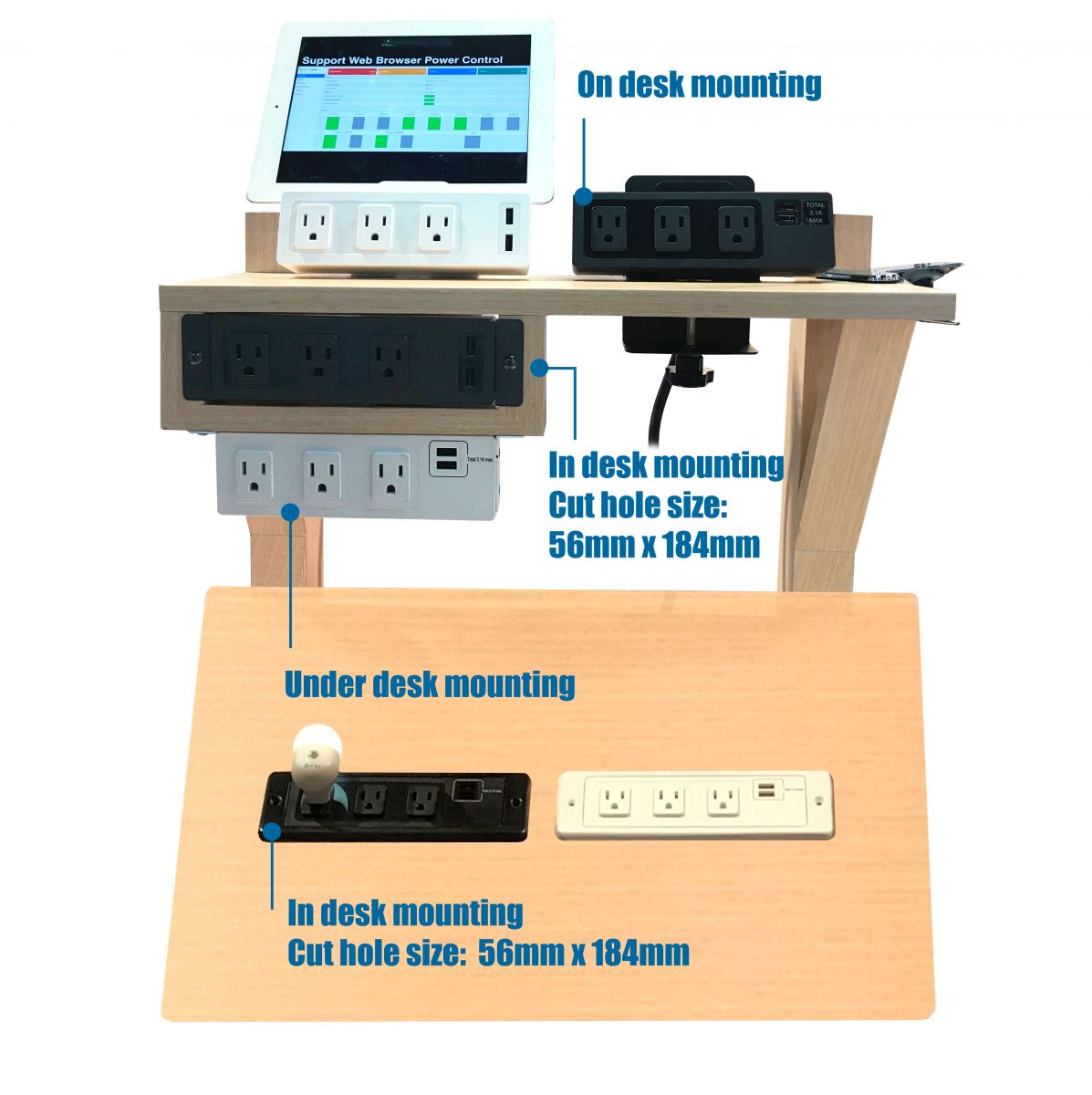

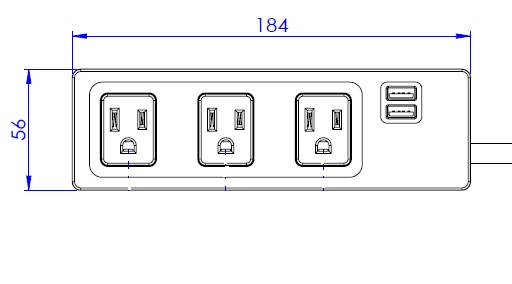

Product Dimensions | Cut hole size: 56mmW x 184mmL | Cut hole size: 56mmW x 184mmL | |
AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes - 510 Joules Rating |
Voltage | 125 Vac | 125 Vac | |
UL 1449 VPR | - | L-N 1000V | |
Duty cycle current | - | 3KA | |
Current | 15A | 15A | |
Frequency Compatibility | 50/60 Hz | 50/60 Hz | |
Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
Outlet numbers | 3 | 3 | |
Plug Type | NEMA 5-15P | NEMA 5-15P | |
Input Cord Length | Length between 3FT to 25 FT. | Length between 3FT to 25 FT. | |
Input Phase | Single-Phase | Single-Phase | |

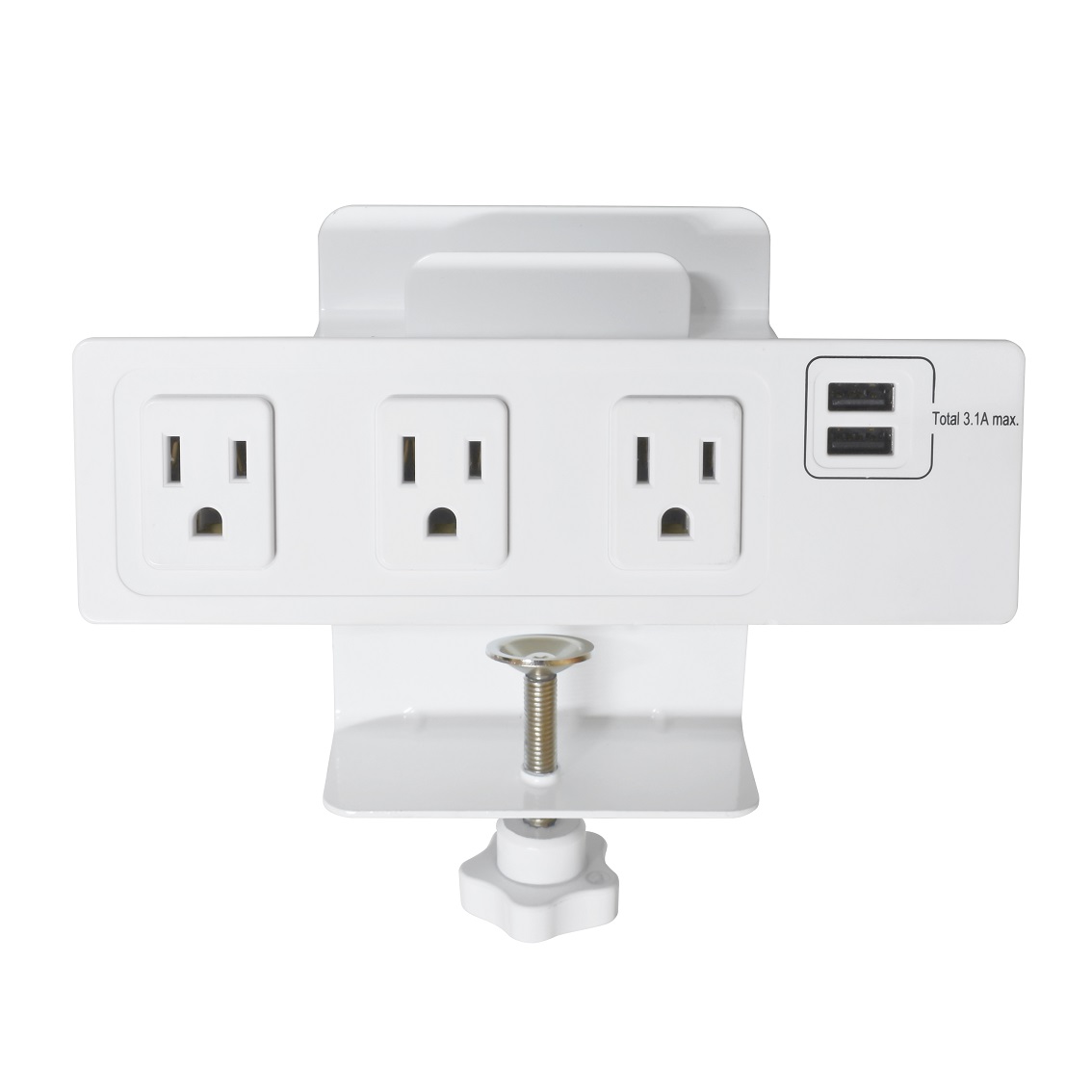

USB CHARGING | Ports | 2 Extension USB Type A | 2 Extension USB Type A |
Output Voltage | 5 Vdc | 5 Vdc | |
Output Current | 3.1A | 3.1A | |
CERTIFICATIONS | Certifications | Tested to ANSI/UL 962A, 4th Edition, dated September 29, 2014, Revision Date February 22, 2016. |
Tested to ANSI/UL 962A, 4th Edition, dated September 29, 2014, Revision Date February 22, 2016. |
ANSI/UL 1449, 4th Edition, dated August 20, 2014, Revision Date March 17, 2016. |
ANSI/UL 1449, 4th Edition, dated August 20, 2014, Revision Date March 17, 2016. |
||
CSA C22.2 No. 308-14, 1st Edition, dated December 2014. | CSA C22.2 No. 308-14, 1st Edition, dated December 2014. | ||
CSA C22.2 No. 8-13, 5th Edition, dated November 2013. | CSA C22.2 No. 8-13, 5th Edition, dated November 2013. | ||
CSA Electrical Certification Notice 516 / Technical Information Letter I-11B |
CSA Electrical Certification Notice 516 / Technical Information Letter I-11B |
||
Surge/Transient Voltage Surge Suppressors (dated May 13, 1986), Revision dated September 2, 1986. |
Surge/Transient Voltage Surge Suppressors (dated May 13, 1986), Revision dated September 2, 1986. |
||
RoHS Compliant | RoHS Compliant |
