In Desk Pull-out Grommet + USB 16R-011U

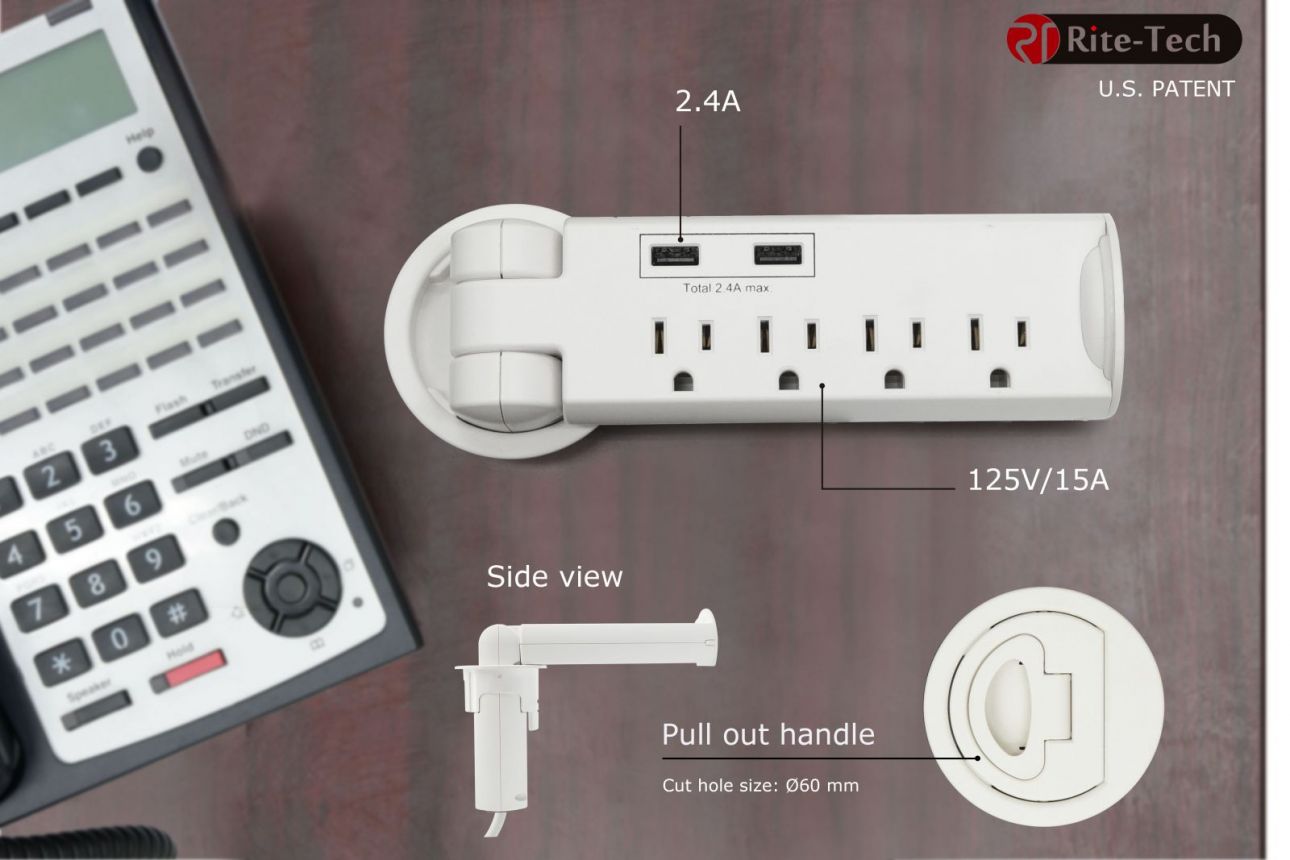

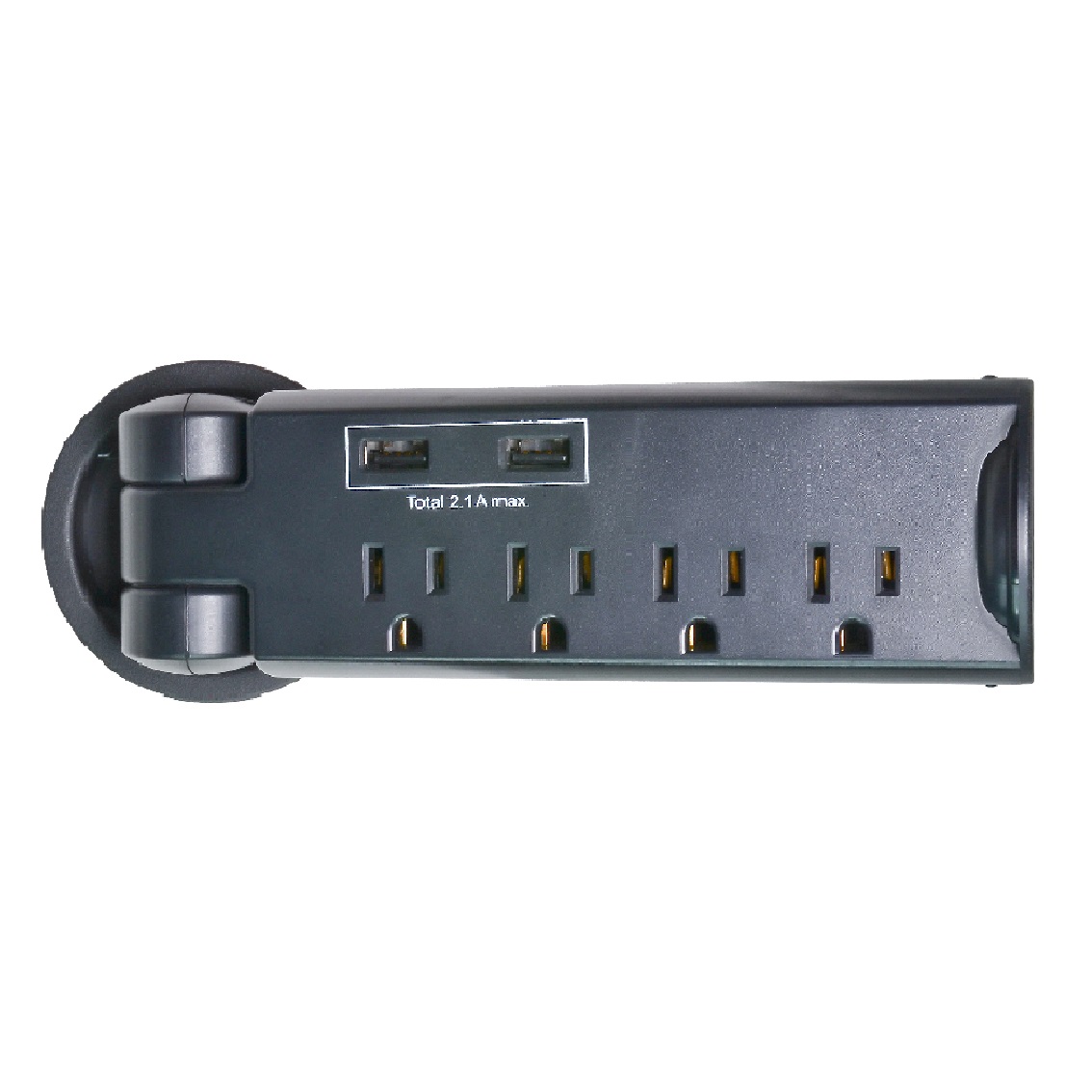

Desktop Pull-out Grommet Power- Easy pull out the power strip for using.
- 4 Outlets on each receptacle strip With Surge protection
- 2 USB charger -Optional
Safety:
- With heavy duty cord, avoid the electric wire go off due to wire twisted.
- With Surge protection, enhance Safety identification level, it is more safer when its working.
Convenient:
- Hidden style power strip, free and easy to replace the relevant type of hidden power of office furniture.
- Pull-out power strip and lying on the desktop simply, no clutter.
- Adjustable angle of power strip, capable to adjust the angle of power strip by following the furniture design, it can save more space and looks more cleaner.
- No necessary for USB adapter anymore, you can use other electronic and mobile device easily while charging. - optional
Appearance:

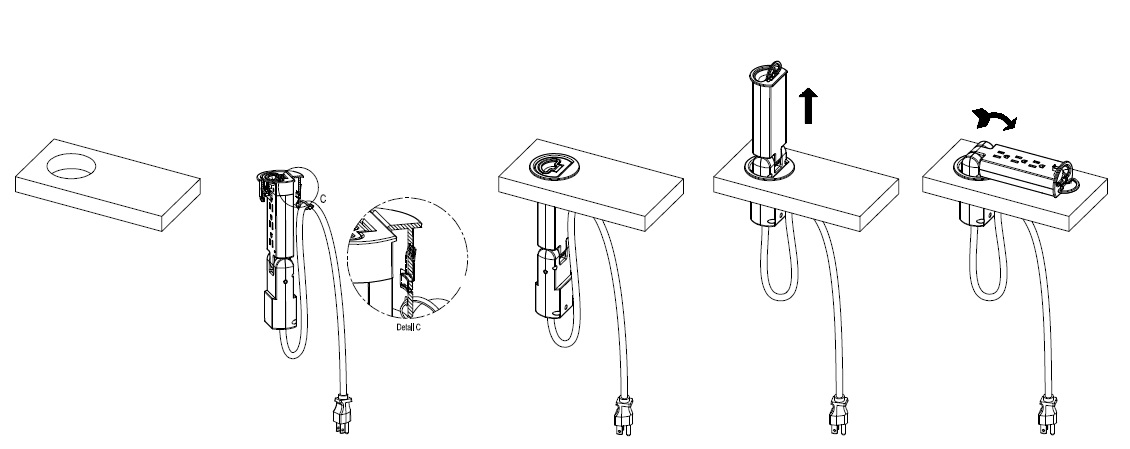

In desk power, Cut hole size: Ø60.0mm
|
PRODUCT INFORMATION |
Model no. | 16R-011U, 16R-01160U, 16R-011RU, 16R-011RXU, 16R-011NU, 16R-01160NU, 16R-011NRU, 16R-011NRXU |
16R-011U-xMS, 16R-01160U-xMS, 16R-011RU-xMS, 16R-011RXU-xMS, 16R-011NU-xMS, 16R-01160NU-xMS, 16R-011NRU-xMS, 16R-011NRXU-xMS (x can be 3 to 5) |
| Color | Customization | Customization | |
| Material of Construction | Plastic | Plastic | |
| Product Dimensions | Cut hole size: Ø 60.0mm | Cut hole size: Ø 60.0mm | |
| AC POWER / SURGE PROTECTION |
Surge Protection | - | Yes - 2100 Joules Rating |
| Voltage | 125 Vac | 125 Vac | |
| UL 1449 VPR | - | L-N 400V, L-G 500V, N-G 500V | |
| Duty cycle current | - | - | |
| Current | 15A | 15A | |
| Frequency Compatibility | 50/60 Hz | 50/60 Hz | |
| Output Receptacles | NEMA 5-15R | NEMA 5-15R | |
| Outlet numbers | 4 | 4 | |
| Plug Type | NEMA 5-15P | NEMA 5-15P | |
| Input Cord Length | Length between 3FT to 25 FT. | Length between 3FT to 25 FT. | |
| Input Phase | Single-Phase | Single-Phase | |
| USB CHARGING | Ports | 2 Extension USB Type A (No USB charger with 11-001, 11-00160, 11-001R, 11-001R) |
2 Extension USB Type A (No USB charger with11-001-xMS, 11-00160-xMS, 11-001R-xMS, 11-001RX-xMS) |
| Output Voltage | 5 Vdc | 5 Vdc | |
| Output Current | 2.4 A | 2.4 A | |
| CERTIFICATIONS | Certifications | Tested to UL 962A, Fourth Edition, dated February 22, 2016.. | Tested to UL 962A, Fourth Edition, dated February 22, 2016, Certification Requirement Decision, Date 2013-06-24 |
| CSA C22.2 No. 308_14, First Edition. | UL 1449, Fourth Edition, latest revision dated March 17, 2016 | ||
| - | CSA C22.2 No. 308-14, First Edition | ||
| - | C22.2 No. 8-13, Fifth Edition | ||
| - | C22.2 No.42-10, Seventh Edition, latest revision dated November, 2010 | ||
| - | ECN 516/I-11B, dated September 2, 1986 | ||
| RoHS Compliant | RoHS Compliant |
