12A/16A Vertical Aluminum Housing　66A -DM (Monitor)

66A-DM

Safety:

With 1 master On/off switch and circuit breaker it can be more safer, with power indicator light, easily aware of product working situation.
With heavy duty cord, avoid the electric wire go off due to wire twisted.
With Display Module, easy to monitor the unit situation immediately.

Convenient:

Ideal for use of multiple convenience outlets for powering various of equipment.
Just one click master switch to turn on/off to control whole power strip power.
Long type power strip, can fix much power issues of electronic or machine which cannot be used due to electric cord range.
The long wire of power strip solution can totally solve the short wire problem of using electronic device.

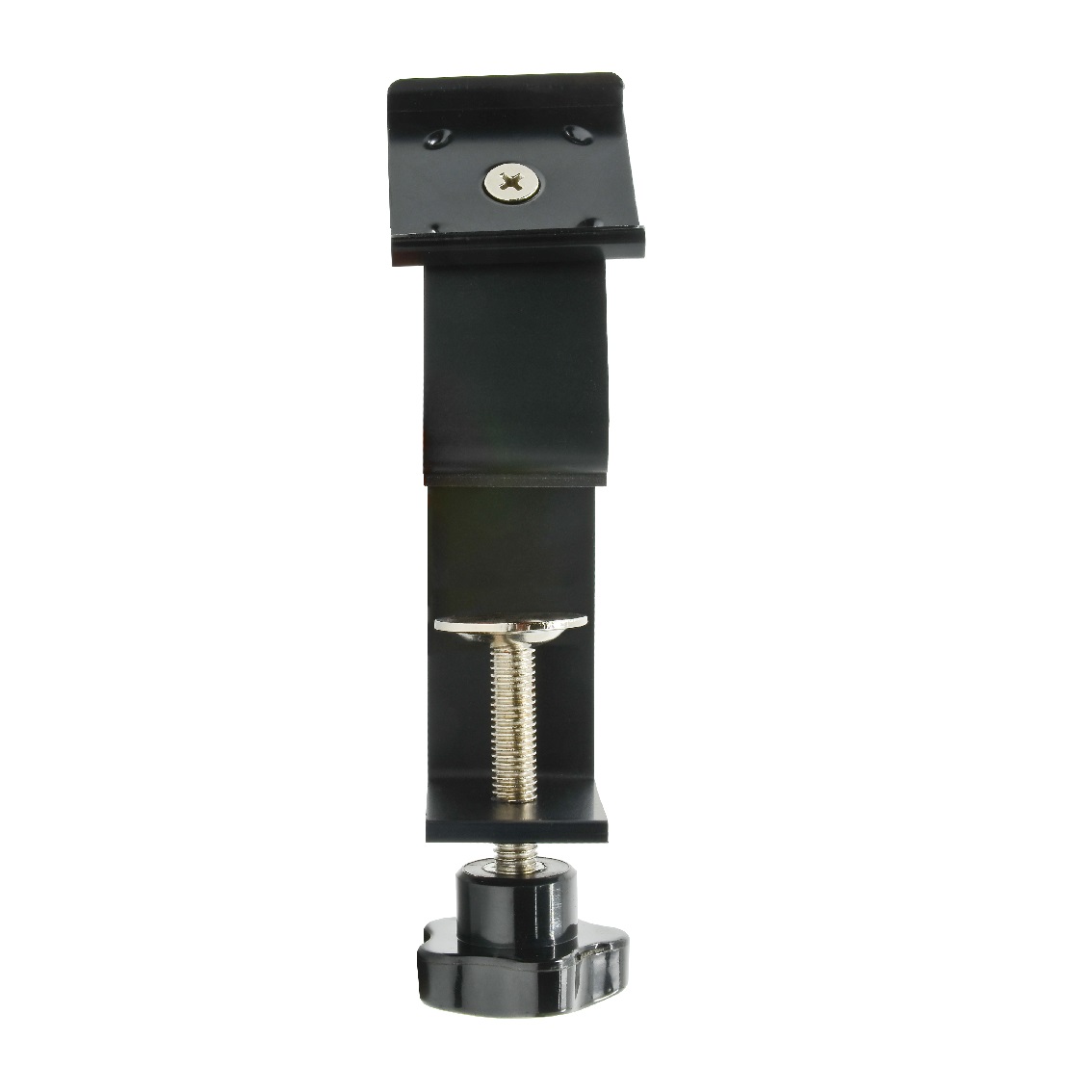

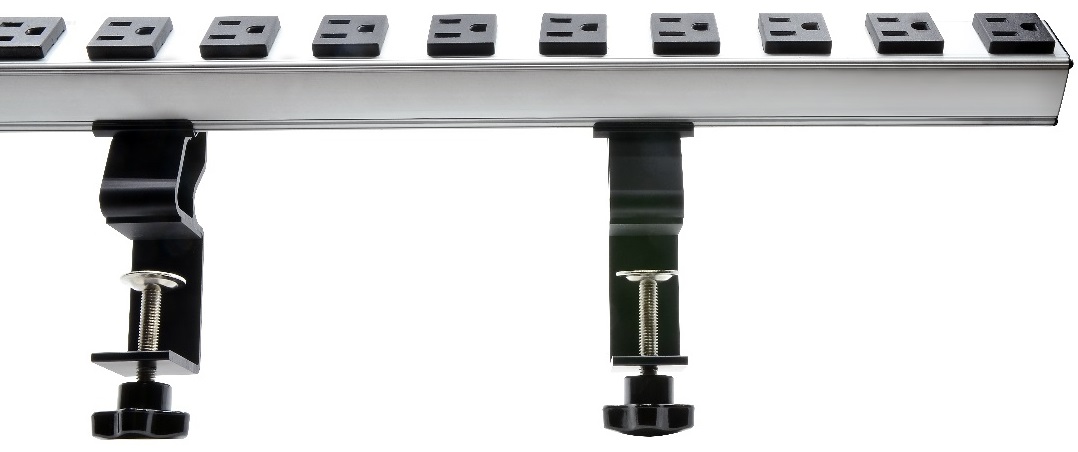

With clamp or hardware kits, bulit own working station.

Appearance:

66A-DM is simple, compact and easy design, not too much complicated appearance.

Textured aluminum shell，light weight, easy to move, durability greatly enhanced.

PRODUCT INFORMATION	Model no.	66A-DM
	Color	Customization,
	Material of Construction	Aluminuml
	Product Dimensions	As spec of order requirement, length Min. 12 inches, Max. 77 inches
AC POWER / SURGE PROTECTION	Surge Protection	Yes - 1650 Joules Rating
	Voltage	125Vac
	UL 1449 VPR	L-N 500V, L-G 500V, N-G 500V
	Duty cycle current	3KA
	Current	12A or 16A (as order requirement)
	Frequency Compatibility	50/60 Hz
	Output Receptacles	NEMA 5-15R or NEMA 5-15R duplex type or NEMA 5-20R duplex type (as order requirement)
	Outlet numbers	4 to 32 (as order requirement)
	Plug Type	NEMA 5-15P or NEMA 5-20P (as order requirement)
	Input Cord Length	Ae order requirement. (As laws and regulations is Min. 1.5M , Max. 4.5M)
	Input Phase	Single-Phase
CERTIFICATIONS	Certifications	UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment - Safety - Part 1: General Requirements)
		CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment - Safety - Part 1: General Requirements)
		RoHS Compliant

* 1 Master On/off switch with built-in circuit breaker
