Safety:
Convenient:
Appearance:

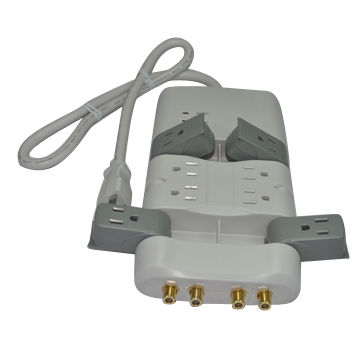

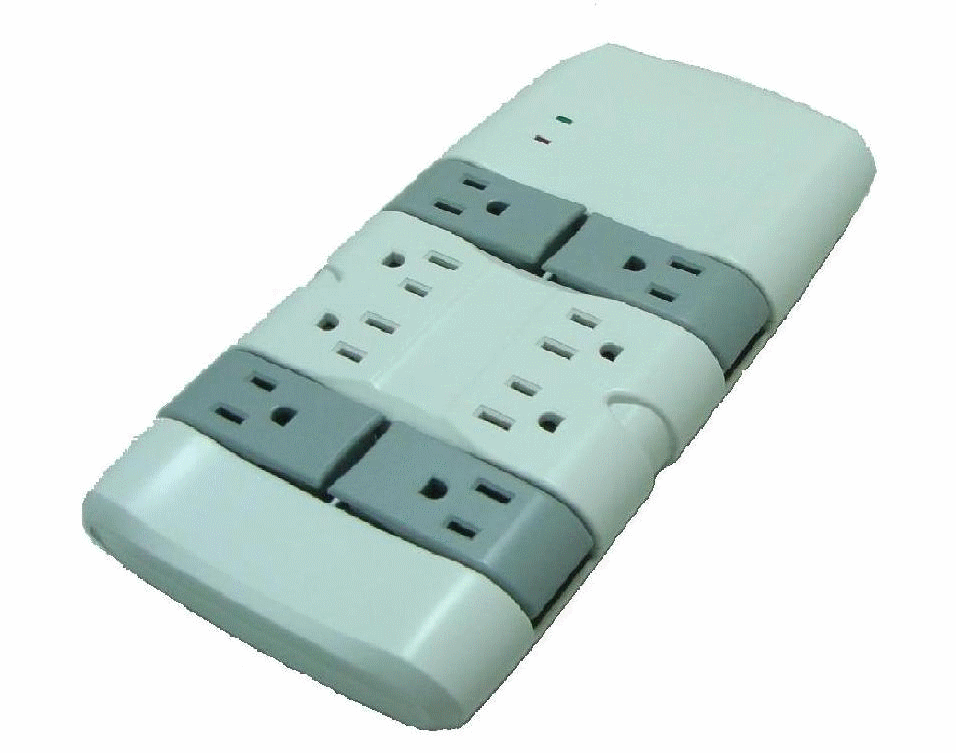

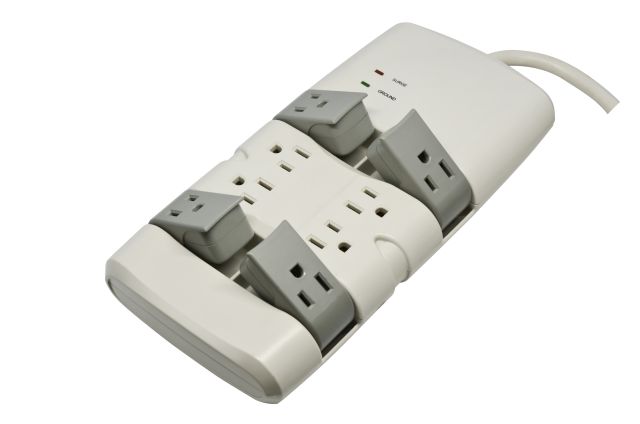

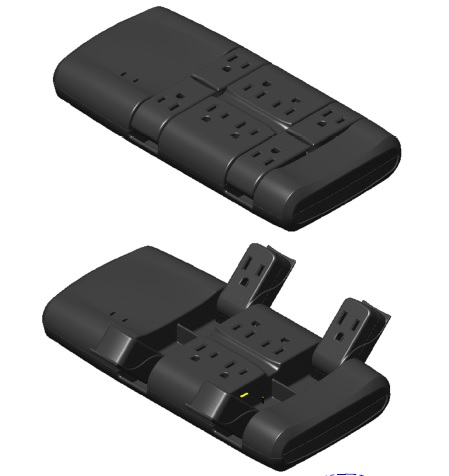

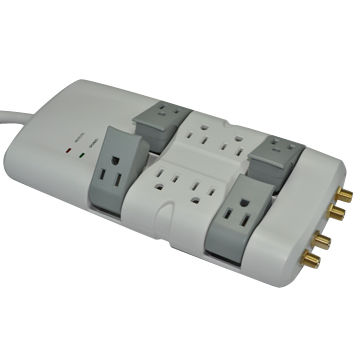

12 Outlets Surge Protector with 4 Swivel Outlets *US Patented design
|
PRODUCT INFORMATION |
Model no. | 09-011-xMS (x can be 8, 10, 12) |
| Color | Customization | |
| Material of Construction | Plastic | |
| AC POWER / SURGE PROTECTION |
Surge Protection | Yes - max. 3600 Joules Rating |
| Voltage | 125Vac | |
| UL 1449 VPR | L-N 330V, L-G 400V, N-G 400V | |
| Duty cycle current | 3KA | |
| Current | 15A | |
| Frequency Compatibility | 60 Hz | |
| Output Receptacles | NEMA 5-15R | |
| Outlet numbers | 12 (with 4 Swivel Outlets) | |
| Plug Type | NEMA 5-15P | |
| Input Cord Length | 1.5 FT to 25 FT | |
| Input Phase | Single-Phase | |
| LAN CIRCUITS PROTECTION | Wires Protected | Pins 1, 2, 3, & 6 |
| Connectors | RJ45 shared with Telco | |
| Clamping Level | 6.0 - 8.2 Vdc | |
| TELCO PROTECTION | Connectors | 2 RJ11 or RJ45 |
| Clamping Level | 6.0 - 8.2 Vdc | |
| UNIVERSAL COAXIAL PROTECTION | Connections | F type 2 or 4 |
| CERTIFICATIONS | Certifications | Tested to UL 1363, Third Edition, Latest Revision Dated October 13, 2009 |
| UL 1449, Third Edition, Latest Revision Dated September 4, 2009. | ||
| CSA C22.2 No. 21-95, Eighth Edition | ||
| C22.2 No. 8-M1986, Electromagnetic Interference (EMI) Filters, Fifth Edition | ||
| CSA Electrical Technical Information Letters A-24, dated October 31, 1995 and I-11B, dated May 13, 1986. |
||
| RoHS Compliant |
* 1 Master On/off switch with built-in circuit breaker
* Phone/Fax Protection - optional
Network Protection - optional
Coaxial Protection - optional
